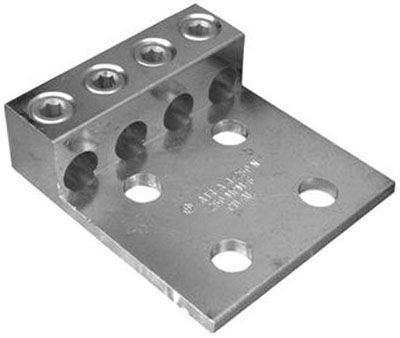

Morris 90874 Aluminum Mechanical Lug, Four-Conductor 4-Hole, 350 MCM - #6 AWG

Morris's 90874 is a dual-rated aluminum mechanical lug that terminates 4 conductors of 350 MCM - #6 AWG on a 4-hole mount. It is electro-tin plated for low contact resistance, accepts copper or aluminum, and is rated 600V at 90°C.

Key Features

• Manufactured from Aluminum, Electro-Tin Plated
• Dual Rated for Both Copper and Aluminum Conductors
• Four Conductor, 4-Hole Mount
• Rated 600V; 194°F (90°C)

Specifications

Applications

Used to terminate 4 350 MCM - #6 AWG copper or aluminum conductors to a 4-hole pad in panelboards, switchgear, transformers, and service equipment.

Installation

Insert each conductor into its barrel and tighten the set screw to the UL486B torque for the wire size; mount to the 4-hole pad.
