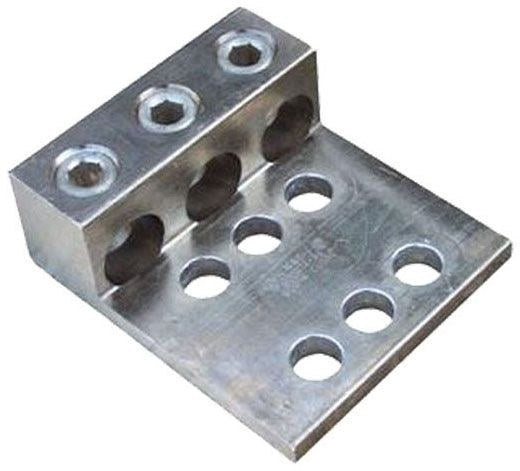

Morris 90862 Aluminum Mechanical Lug, Three-Conductor 6-Hole, 1000 MCM - 500 MCM

Morris's 90862 is a dual-rated aluminum mechanical lug that terminates 3 conductors of 1000 MCM - 500 MCM on a 6-hole mount. It is electro-tin plated for low contact resistance, accepts copper or aluminum, and is rated 600V at 90°C.

Key Features

• Manufactured from Aluminum, Electro-Tin Plated
• Dual Rated for Both Copper and Aluminum Conductors
• Three Conductor, 6-Hole Mount
• Rated 600V; 194°F (90°C)

Specifications

Applications

Used to terminate 3 1000 MCM - 500 MCM copper or aluminum conductors to a 6-hole pad in panelboards, switchgear, transformers, and service equipment.

Installation

Insert each conductor into its barrel and tighten the set screw to the UL486B torque for the wire size; mount to the 6-hole pad.
