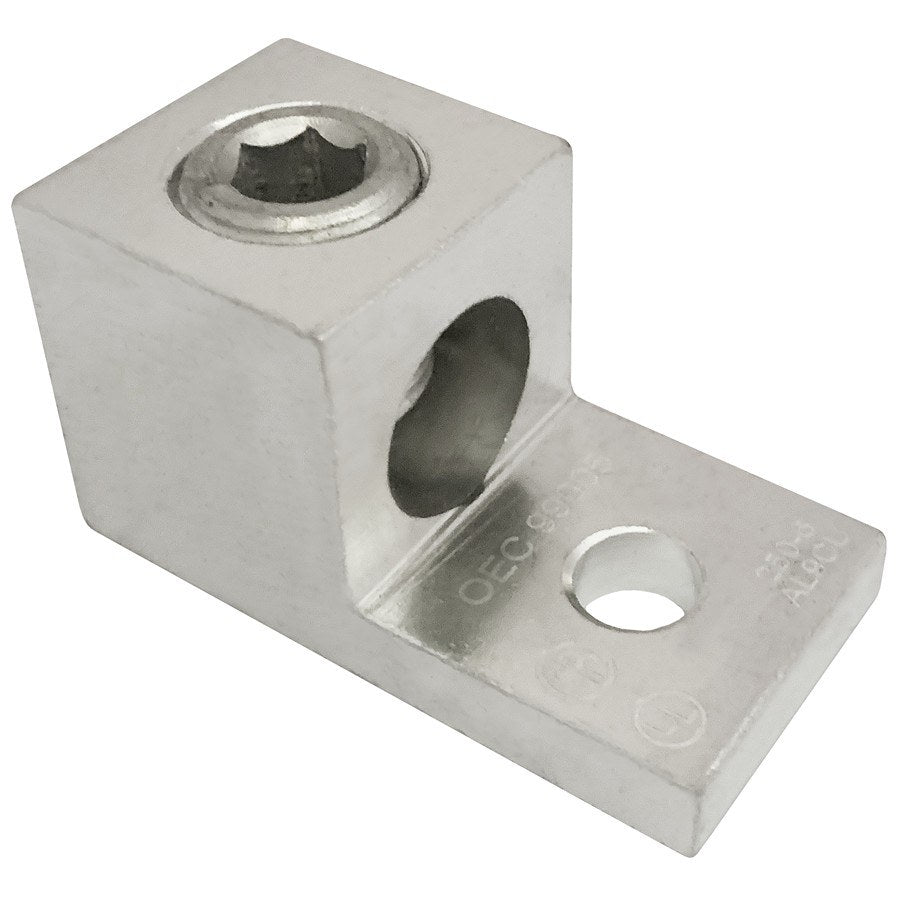

Morris 90729 Aluminum Mechanical Lug, One-Conductor 1-Hole, 1000 MCM - 500 MCM

Morris's 90729 is a dual-rated aluminum mechanical lug that terminates 1 conductor of 1000 MCM - 500 MCM on a 1-hole mount. It is electro-tin plated for low contact resistance, accepts copper or aluminum, and is rated 600V at 90°C.

Key Features

• Manufactured from Aluminum, Electro-Tin Plated
• Dual Rated for Both Copper and Aluminum Conductors
• One Conductor, 1-Hole Mount
• Rated 600V; 194°F (90°C)

Specifications

Applications

Used to terminate 1 1000 MCM - 500 MCM copper or aluminum conductor to a 1-hole pad in panelboards, switchgear, transformers, and service equipment.

Installation

Insert each conductor into its barrel and tighten the set screw to the UL486B torque for the wire size; mount to the 1-hole pad.
