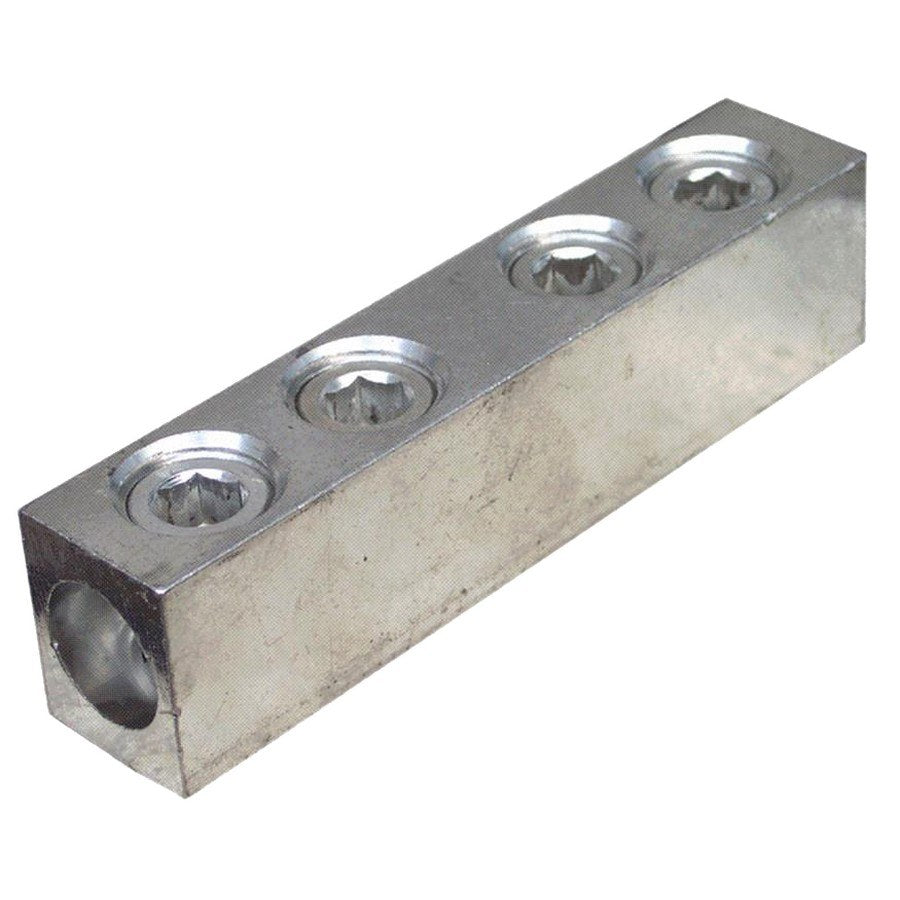

Morris 90616 Aluminum Mechanical Splice, 250 MCM - 6 AWG

Morris's 90616 is a dual-rated aluminum mechanical splice that joins two 250 MCM - 6 AWG conductors in-line. It is electro-tin plated for low contact resistance, accepts copper or aluminum, and is rated 600V at 90°C with Allen-head set screws.

Key Features

• Dual Rated for Both Copper and Aluminum
• Electro-Tin Plated for Low Contact Resistance
• In-Line Splice (Run-to-Run)
• Allen-Head Set Screws
• Rated 600V; 194°F (90°C)

Specifications

Applications

Used to splice two 250 MCM - 6 AWG copper or aluminum conductors in-line in feeders, services, and grounding runs.

Installation

Insert each conductor fully into the barrel and tighten the Allen-head set screws to the rated torque for the wire size.
