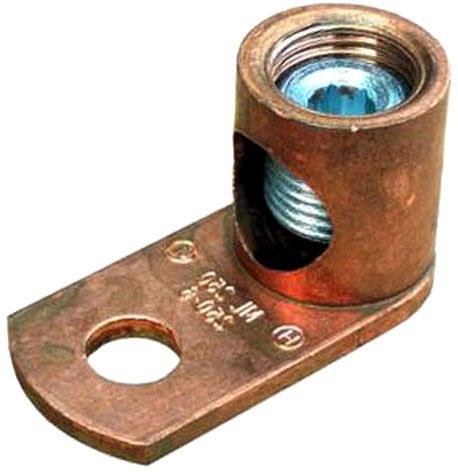

Morris 90554 Copper Mechanical Lug, 1/0-8 AWG

Morris's 90554 is a solid one-piece copper mechanical lug for terminating 1/0-8 AWG copper conductors. It is machined from one-piece copper with a 1/4" hex steel screw and a 5/16" stud hole, and is rated 600V for use with copper wire only.

Key Features

• Solid One-Piece Copper Connector
• Steel 1/4" Hex Screw
• Suitable for Use with Copper Wire Only
• Rated 600V

Specifications

Applications

Used to terminate 1/0-8 AWG copper conductors to a stud, bus, or equipment pad in panelboards, switchgear, and grounding terminations.

Installation

Strip the conductor, insert it into the barrel, and tighten the 1/4" hex screw to the UL480 torque for the wire size.
