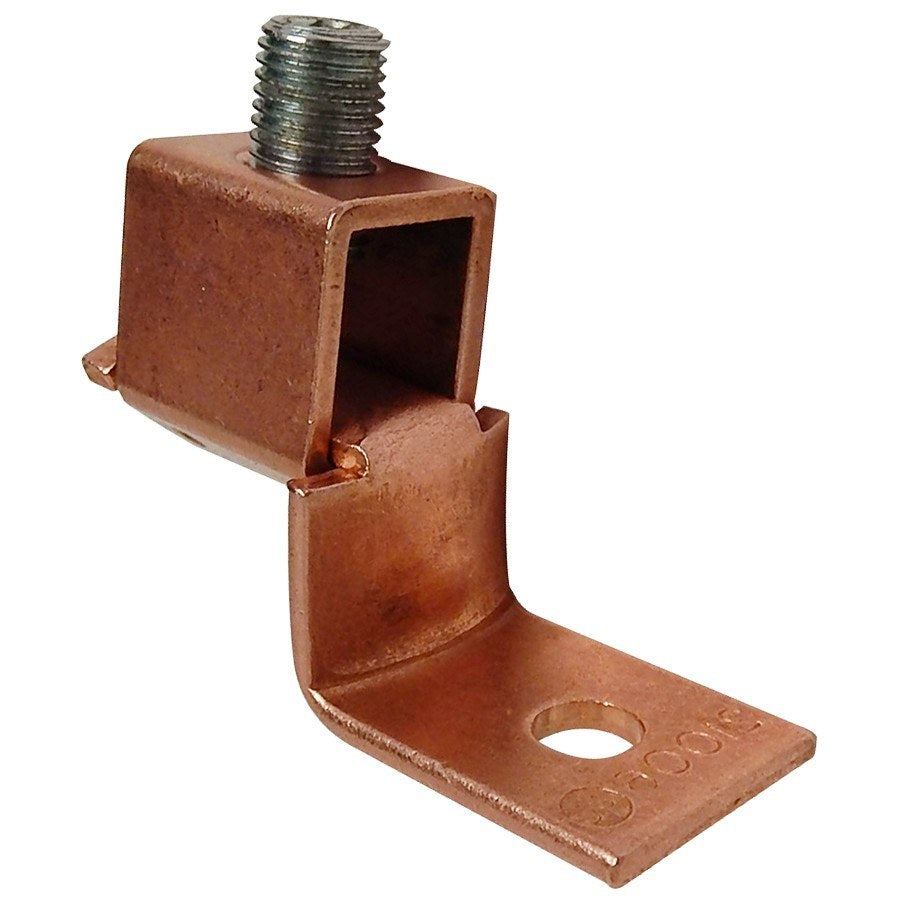

Morris 90522 Copper Offset Lug, 225A, 4/0-2 AWG

Morris's 90522 is a 225A copper mechanical offset lug for terminating 4/0-2 AWG copper conductors. An arched pressure bar and V-bottom collar seat the conductor for positive contact, steel-plated screws resist rusting, and it is rated 600V.

Key Features

• Manufactured from Copper
• Arched Pressure Bar and V-Bottom Collar Position the Wire for Positive Contact
• Steel-Plated Screws/Bolts Prevent Rusting
• Easy to Install with Screwdriver, Wrench, or Pliers
• Rated 600V

Specifications

Applications

Used to terminate 4/0-2 AWG copper conductors where an offset tang is needed to clear adjacent terminals or busbars in panels and switchgear.

Installation

Insert the conductor under the arched pressure bar and tighten the steel-plated screw with a screwdriver, wrench, or pliers.
