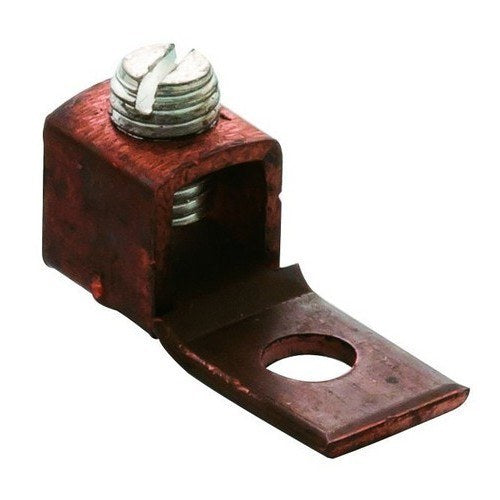

Morris 90506 Copper Mechanical Lug, 6-14 AWG
Morris 90506 Copper Mechanical Lug, 6-14 AWG
Regular price
$10.37
Regular price
Sale price
$10.37
SKU:90506
Quantity
Couldn't load pickup availability
Morris's 90506 is a solid one-piece copper mechanical lug for terminating 6-14 AWG copper conductors. It is machined from one-piece copper with a slotted steel screw and a 1/4" stud hole, and is rated 600V for use with copper wire only.
Key Features
- Solid One-Piece Copper Connector
- Steel Slotted Screw
- Suitable for Use with Copper Wire Only
- Rated 600V
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 90506 |
| Type | Copper Mechanical Lug |
| Wire Range | 6-14 AWG |
| Stud Hole Size | 1/4" |
| Screw Type | Slotted |
| Tang Style | Straight & Round Tang |
| Material | One-Piece Copper |
| Conductor | Copper Only |
| Voltage | 600V |
Applications
Used to terminate 6-14 AWG copper conductors to a stud, bus, or equipment pad in panelboards, switchgear, and grounding terminations.
Installation
Strip the conductor, insert it into the barrel, and tighten the slotted screw to the UL480 torque for the wire size.
