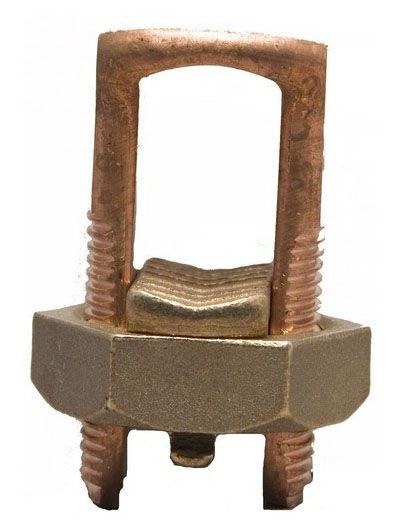

Morris 90330 Copper Split Bolt, 350 MCM
Morris 90330 Copper Split Bolt, 350 MCM
Regular price
$43.24
Regular price
Sale price
$43.24
SKU:90330
Quantity
Couldn't load pickup availability
Morris's 90330 is a copper split bolt for direct-burial splicing and tapping of copper and copper-weld stranded conductors across a 350 MCM - 1/0 AWG range. It is machined from copper, electro-tin plated, and UL467 listed for direct burial and grounding/bonding.
Key Features
- UL Listed for Copper and Copper-Weld Stranded Wires Only
- Manufactured from Copper
- Electro-Tin Plated
- Highly Resistant to Cracking and Corrosion
- UL467 Listed for Direct Burial & Grounding/Bonding
- Rated 600 Volts
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 90330 |
| Type | Copper Split Bolt |
| Main Conductor | 350 MCM |
| Conductor Range | 350 MCM - 1/0 AWG |
| Material | Copper, Electro-Tin Plated |
| Conductor Compatibility | Copper / Copper-Weld Stranded |
| Installation Torque | 650 in-lb |
| Voltage | 600V |
| Listing | UL467 |
| Direct Burial | Yes (Soil & Concrete) |
Applications
Used for copper-to-copper splice, tap, grounding, and bonding connections within the 350 MCM - 1/0 AWG range, including direct burial in soil and concrete.
Installation
Insert the run and tap conductors between the bolt and strap, then tighten the nut to 650 in-lb with a wrench.
