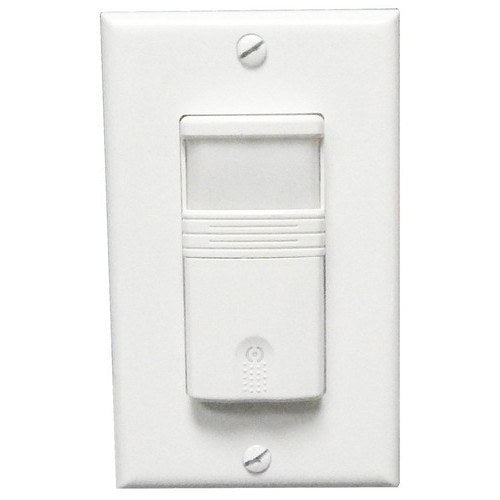

Morris 80521 PIR Occupancy/Vacancy Wall Sensor, Single-Pole, White

Morris's 80521 is a white PIR occupancy/vacancy wall sensor switch (single-pole) that detects motion by sensing the difference between body heat and ambient room temperature. It offers Auto ON/OFF and selectable Manual ON/Auto OFF (vacancy) operation, a 180-degree coverage pattern, adjustable light-level and time-delay settings (5 seconds to 30 minutes), and is rated 800W at 120V / 1200W at 277V on 120-277V. A neutral connection is required. A decorative wall plate is included.

Key Features

• Passive Infrared (PIR) Occupancy/Vacancy Detection
• Auto ON/OFF and Selectable Manual ON/Auto OFF (Vacancy) Operation
• 30 ft Range When Mounted at 4 ft Height
• LED Indicator for Visibility in Darkened Rooms
• Adjustable Light-Level Sensitivity
• Time Delay Off Adjustable 5 Seconds to 30 Minutes
• Removable Cover with Mode and Dip-Switch Settings
• Decorative Wall Plate Included
• Conforms to California Title 24 Energy Code
• Compatible with Incandescent, Electronic Ballast Fluorescent, CFL, Magnetic Low Voltage, Electronic Low Voltage, and LED Lighting

Specifications

Applications

Used in offices, conference rooms, restrooms, and other commonly used spaces for automatic occupancy- or vacancy-based lighting control and Title 24 compliance.

Installation

Replace the existing wall switch, connect the leads including neutral, snap on the included wall plate, and set sensitivity and time delay.
