Morris

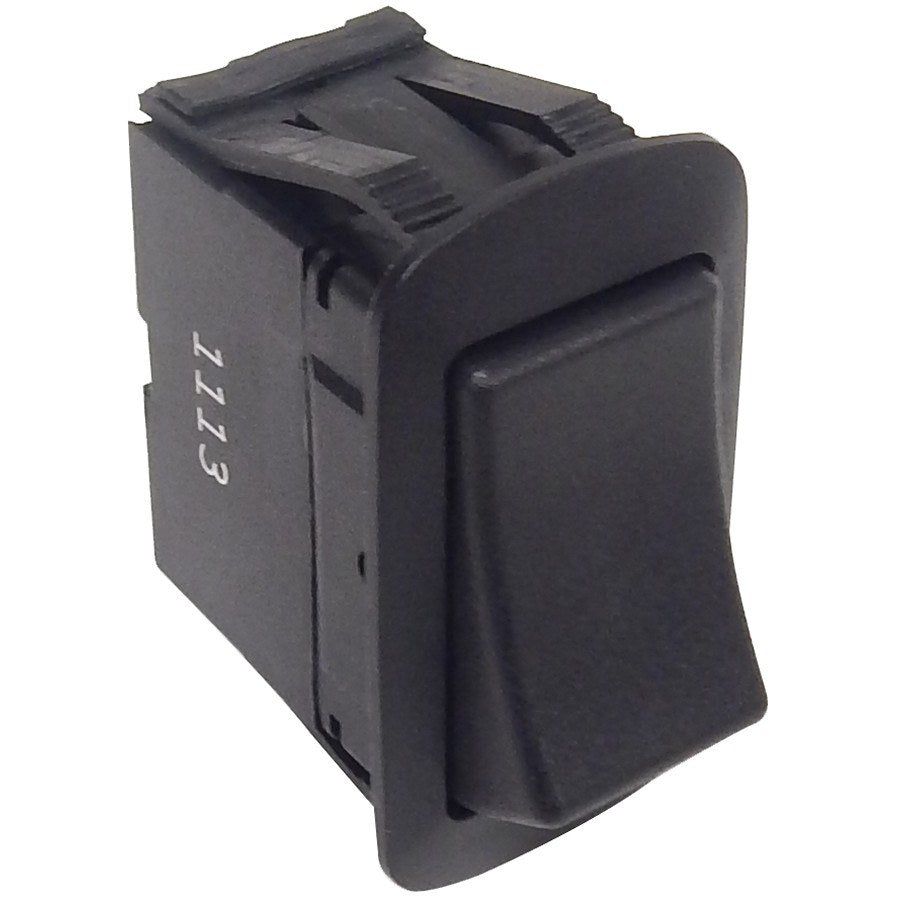

Morris 70171 Rocker Switch, SPST, On-Off, 20A
Morris 70171 Rocker Switch, SPST, On-Off, 20A
Regular price
$11.23
Regular price
Sale price
$11.23
SKU:70171
Quantity
Couldn't load pickup availability
Morris's 70171 is a single-pole single-throw (spst) rocker switch with a On-Off action, a black actuator, and quick-connect spade terminals. It is rated 20A at 125VAC, 10A at 250VAC, and 21A at 14VDC (16A 125VAC, 10A 277VAC general use) with a 3/4 HP motor load rating.
Key Features
- Black Rocker Actuator
- Quick-Connect Spade Terminals
- Panel-Mount Body
- UL Listed
- 2 Terminals
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 70171 |
| Type | Rocker Switch |
| Poles/Throw | Single-Pole Single-Throw (SPST) |
| Function | On-Off |
| Standard Rating | 20A 125VAC, 10A 250VAC, 21A 14VDC |
| General-Use Rating | 16A 125VAC, 10A 277VAC |
| Motor Load | 3/4 HP |
| Terminals | 2 Quick-Connect Spade |
Applications
Used for panel-mount sp on/off control of equipment, vehicles, and machinery up to 20A.
Installation
Snap the rocker into a rectangular panel cutout and connect the load to the spade terminals.
