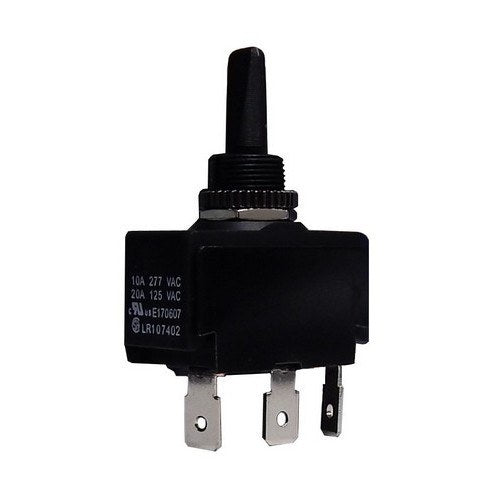

Morris 70125 Momentary-Contact Toggle Switch, SPDT, (On)-OFF-(On), 20A

Morris's 70125 is a heavy-duty momentary-contact single-pole double-throw (spdt) toggle switch with a (On)-OFF-(On) action (parentheses indicate the momentary position) and quick-connect spade terminals. It is rated 20A at 125VAC, 10A at 250VAC, and 10A at 277VAC, with a 3/4 HP 125-250VAC motor load rating.

Key Features

• Solid Brass or Plated Contacts for Reliable Switching
• Threaded Bushing for Panel Mounting
• UL Listed
• Spring-Return Momentary Contact
• Quick-Connect Spade Terminals

Specifications

Applications

Used for momentary sp control such as jogging motors, start/stop stations, and spring-return signaling up to 20A.

Installation

Mount via the threaded bushing and wire the load to the quick-connect spade terminals; the toggle springs back from the momentary position.
