Morris

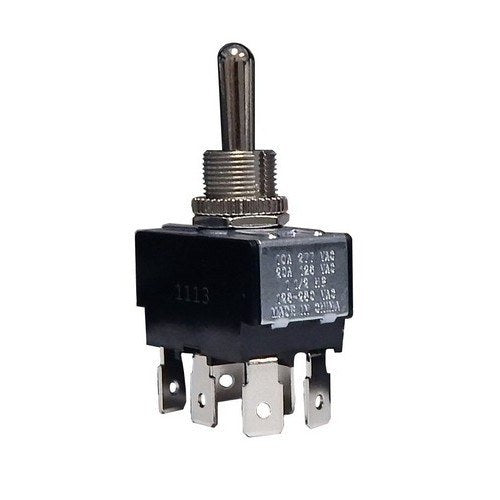

Morris 70111 Heavy-Duty Toggle Switch, DPDT, On-Off-On, 20A
Morris 70111 Heavy-Duty Toggle Switch, DPDT, On-Off-On, 20A
Regular price
$17.59
Regular price
Sale price
$17.59
SKU:70111
Quantity
Couldn't load pickup availability
Morris's 70111 is a heavy-duty double-pole double-throw (dpdt) toggle switch with a On-Off-On action and quick-connect spade terminals. It is rated 20A at 125VAC, 10A at 250VAC, and 10A at 277VAC, with a 1-1/2 HP 125-250VAC motor load rating, and mounts in a standard threaded bushing.
Key Features
- Solid Brass or Plated Contacts for Reliable Switching
- Threaded Bushing for Panel Mounting
- UL Listed
- Quick-Connect Spade Terminals
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 70111 |
| Type | Heavy-Duty Toggle Switch |
| Poles/Throw | Double-Pole Double-Throw (DPDT) |
| Function | On-Off-On |
| Standard Rating | 20A 125VAC, 10A 250VAC, 10A 277VAC |
| Motor Load | 1-1/2 HP 125-250VAC |
| Terminals | Quick-Connect Spade |
Applications
Used for heavy-duty dp control of motors, equipment, and lighting loads up to 20A in industrial and commercial machinery.
Installation
Mount the switch in a 1/2" panel hole via the threaded bushing and connect the load to the quick-connect spade terminals.
