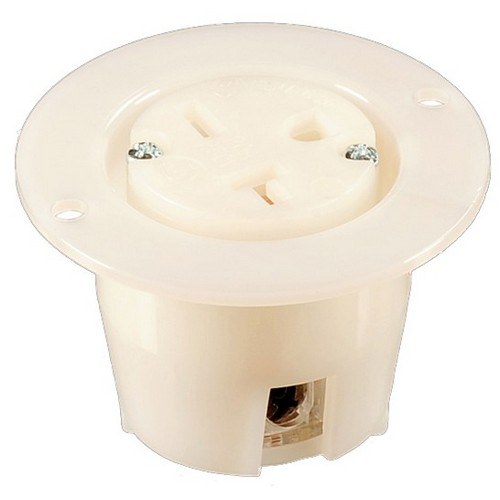

Morris 20425 6-20R Recessed Straight-Blade Receptacle, 20A 250V

Morris's 20425 is a 20A, 250V NEMA 6-20R flanged recessed straight-blade receptacle (female, 2-pole 3-wire) for flush panel or enclosure mounting. It has rugged nylon/polycarbonate construction, solid one-piece brass contacts, heavy-duty combo-head terminal screws, and a clear terminal chamber.

Key Features

• Rugged Nylon/Polycarbonate Construction Resists Impact, Abrasion, Sunlight, and Chemicals
• All Contacts Solid One-Piece Brass for Superior Conductivity
• Heavy-Duty Brass Combo-Head Terminal Screws
• Clear Terminal Chamber for Visual Inspection of Terminals
• Includes Grounding Screw
• Flanged for Flush Panel or Enclosure Mounting

Specifications

Applications

Used to add a 20A 250V NEMA 6-20R straight-blade outlet flush to equipment panels and enclosures.

Installation

Cut the panel opening, mount the flange with the provided hardware, and land line, neutral, and ground on the brass terminals.
