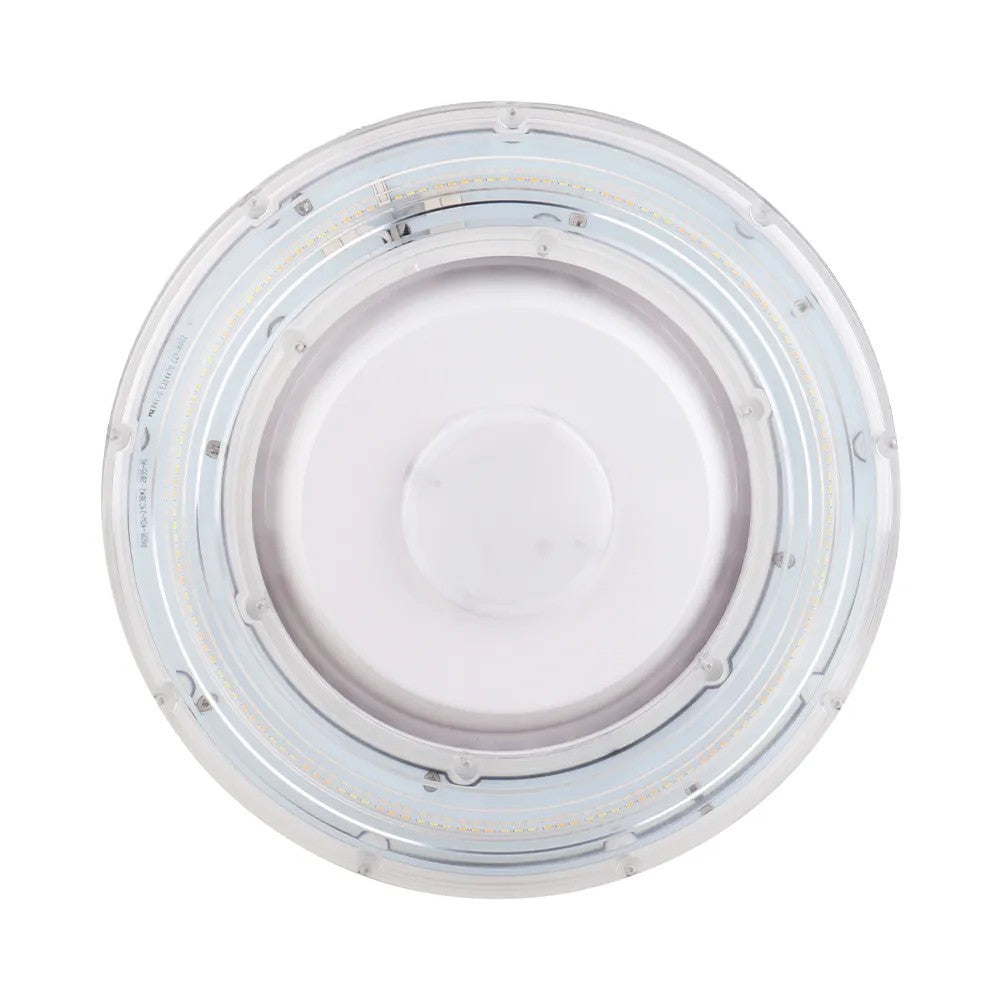

Euri Lighting 100W LED Canopy Light 3000K–5000K (ECR-100W103s)
Euri Lighting 100W LED Canopy Light 3000K–5000K (ECR-100W103s)
Regular price
$121.37
Regular price
Sale price
$121.37
SKU:ECR-100W103s
Quantity
Couldn't load pickup availability
The ECR-100W103s from Euri Lighting is a led canopy light that provides 100W, 12500-14000 lm selectable output in exterior and site lighting. It combines 3000/4000/5000K selectable color temperature, 1-10v dimming, wet location rating. The fixture suits canopy and soffit installations.
Key Features
- Switch-selectable color temperature lets one unit cover 3 CCT settings, cutting SKUs carried on the truck
- 1-10V dimming supports controlled light-level adjustment
- Wet-location rated for covered exterior and damp interior mounting
- IP65 ingress protection seals against dust and water intrusion
- 50,000-hour LED rated life lowers relamping and maintenance frequency
Technical Specifications
| Brand | Euri Lighting |
|---|---|
| Model / SKU | ECR-100W103s |
| Product Type | LED Canopy Light |
| Wattage | 100W |
| Voltage | 100-277V |
| Lumen Output | 12500-14000 lm (output varies by setting) |
| Color Temperature (CCT) | 3000/4000/5000K selectable |
| CRI | 80 CRI |
| Beam Angle | 150° |
| Dimming | 1-10V dimming |
| Efficacy | 125-140 lm/W |
| Power Factor | 0.9 |
| Input Current | 1A |
| Rated Life | 50000 hours |
| Location Rating | Wet Location Rated |
| IP Rating | IP65 |
| Housing | PC and aluminum housing |
| Certifications & Listings | UL, DLC 5.1, RoHS |
| Warranty | 5-Year Limited Warranty |
Applications
Common applications include:
- fuel-station and parking canopies
- covered walkways and drive-throughs
- building soffits and overhangs
Compatibility and Installation Notes
Before installation, confirm mounting and supply voltage for the location; confirm the 100-277V supply.
Lumera Electric carries the Euri ECR-100W103s for canopy and soffit lighting projects.
