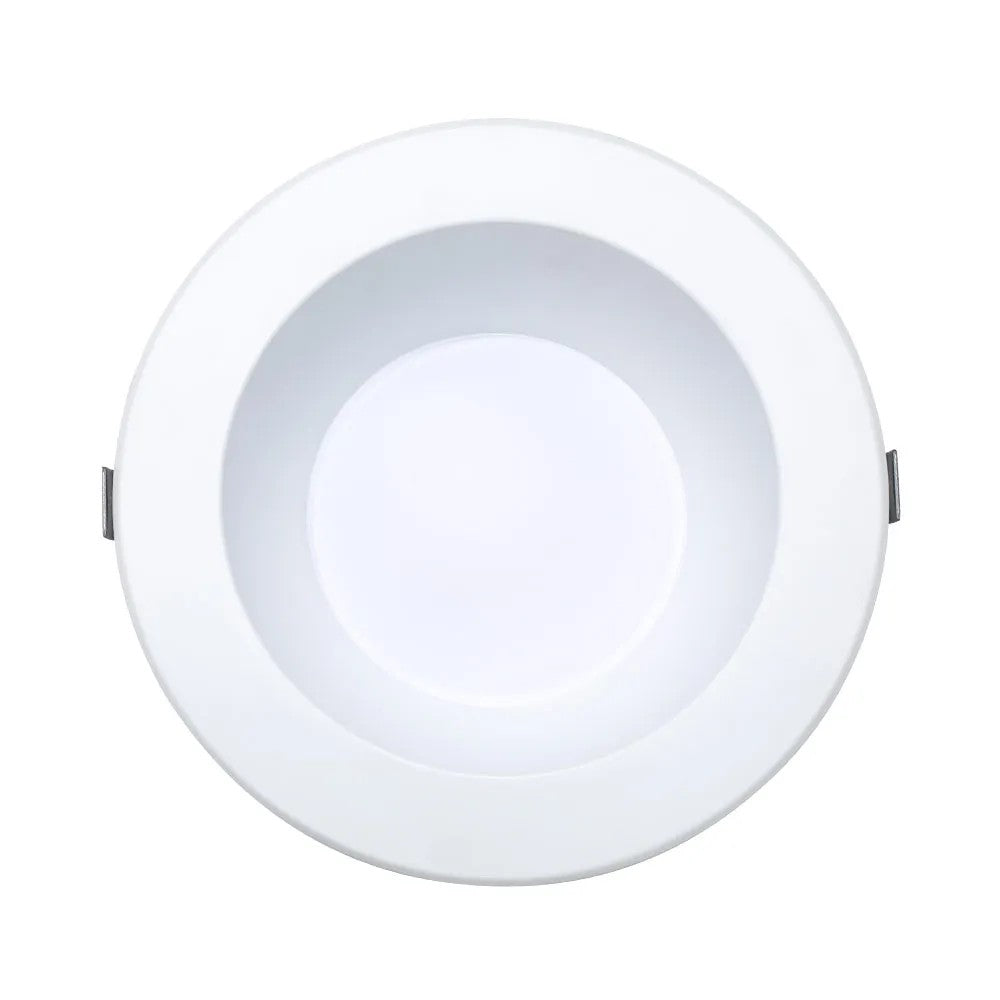

Euri Lighting 8" 10/15/24W selectable LED Commercial Downlight 2700K–5000K (DLC8C-24W203swej)
Euri Lighting 8" 10/15/24W selectable LED Commercial Downlight 2700K–5000K (DLC8C-24W203swej)
SKU:DLC8C-24W203swej
Couldn't load pickup availability
Euri Lighting's DLC8C-24W203swej is a led commercial downlight rated for 10/15/24W selectable, suited to residential and commercial ceilings. It combines 2700/3000/3500/4000/5000K selectable color temperature, 0-10v dimming, wet location rating. The fixture fits new-construction and remodel work.
Key Features
- Field-selectable wattage (10/15/24W) sets output and load at install without changing the fixture
- Switch-selectable color temperature lets one unit cover 5 CCT settings, cutting SKUs carried on the truck
- 0-10V dimming integrates with standard commercial dimming controls
- IC-rated and wet-location listed, so the housing can contact insulation and sit in covered damp areas
- 50,000-hour LED rated life lowers relamping and maintenance frequency
Technical Specifications
| Brand | Euri Lighting |
|---|---|
| Model / SKU | DLC8C-24W203swej |
| Product Type | LED Commercial Downlight |
| Size | 8" |
| Wattage | 10/15/24W selectable |
| Voltage | 120-277V |
| Lumen Output | 1000/1500/2500 lm (output varies by setting) |
| Color Temperature (CCT) | 2700/3000/3500/4000/5000K selectable |
| CRI | 90+ CRI |
| Beam Angle | 90° |
| Dimming | 0-10V dimming |
| Efficacy | 100 lm/W |
| Power Factor | 0.9 |
| Input Current | 0.22A |
| Rated Life | 50000 hours |
| Location Rating | Wet Location Rated |
| IC Rating | IC rated |
| Certifications & Listings | UL, ENERGY STAR, JA8, Title 24 (JA8) |
| Warranty | 3-Year Limited Warranty |
Applications
Common applications include:
- new-construction and remodel ceilings
- residential and commercial recessed lighting
- general and accent downlighting
- retrofit and replacement work
The wet location rated supports covered exterior and damp-interior locations.
Compatibility and Installation Notes
Before installation, verify the 8" ceiling cutout; provide a 0-10V control for dimming.
