EnVision

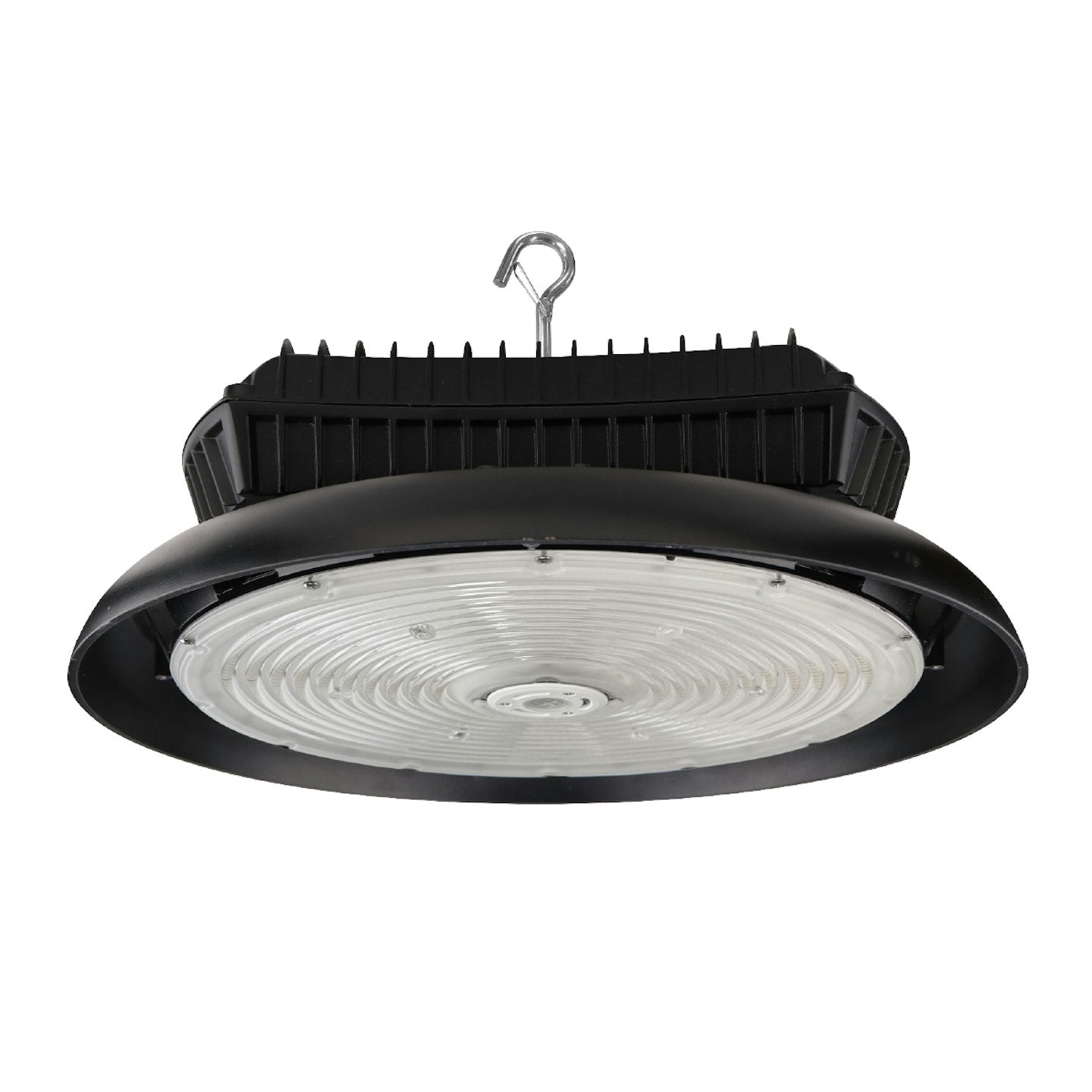

EnVision LED-RHB3C-3P400-CTRI-BL-10-HV – C-Line
EnVision LED-RHB3C-3P400-CTRI-BL-10-HV – C-Line
SKU:LED-RHB3C-3P400-CTRI-BL-10-HV
Couldn't load pickup availability
Engineered for manufacturing floors, the EnVision LED-RHB3C-3P400-CTRI-BL-10-HV high bay provides up to 67,200 lumens with selectable 400/350/300w output across a 277-480V range, pairing verified performance with fast field specification.
Key Features- Selectable power: 400/350/300w set at install, one SKU covering multiple loads
- Output: up to 67,200 lumens matching the selected wattage
- Field-selectable color: 3500K-5000K (3 CCT) chosen on the fixture, no re-order
- Dimming: 0-10V for smooth level control
- Beam angle: 110° for even coverage
- Color rendering: CRI >80
- Rating: Wet Location IP65
- Finish: Black
- Compliance: UL/DLC Listed, 5-year warranty
| Brand | EnVision |
|---|---|
| Wattage | 400/350/300w |
| Lumens | 67,200/58,450/50,400 |
| Color Temperature | 3500K-5000K (3 CCT) |
| Voltage | 277-480V |
| Dimming | 0-10V |
| Beam Angle | 110° |
| CRI | >80 |
| IP Rating | Wet Location IP65 |
| Finish | Black |
| Certification | UL/DLC PREM/ 5 Yrs |
| Box Quantity | 1 |
| UPC | 810143716931 |
Suited to manufacturing floors, gymnasiums and big-box retail, and high-ceiling industrial bays.
Compatibility & Installation NotesConfirm mounting height and required foot-candles for your ceiling before ordering. Set the wattage and CCT switches before final mounting. Verify the location suits a wet-rated fixture. DLC listing supports utility rebates—verify your program's current QPL.
Choose the LED-RHB3C-3P400-CTRI-BL-10-HV when a project needs dependable output with minimal spec overhead.
