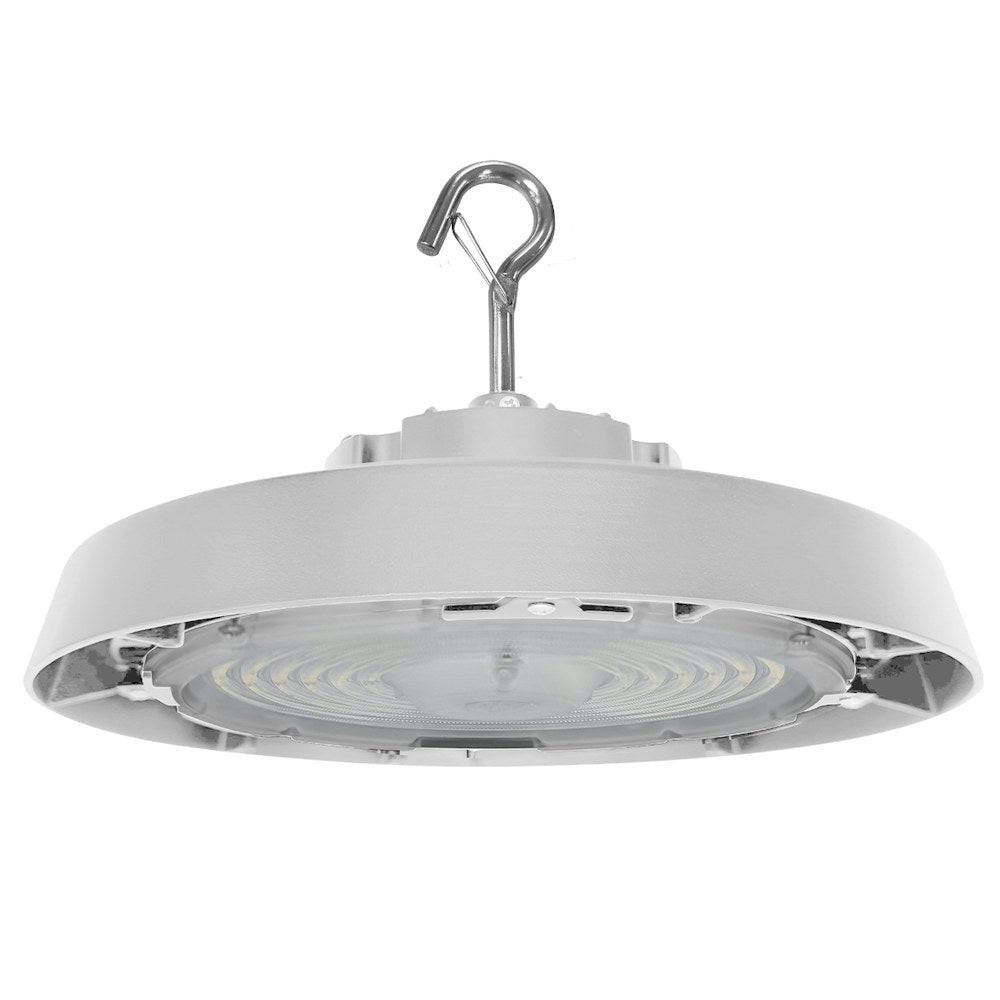

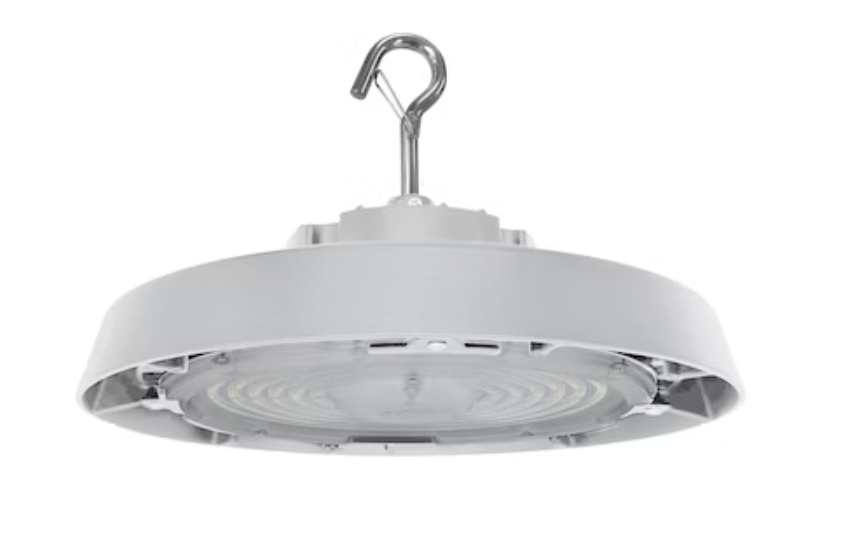

• EnVision LED-RHB3C-3P150-CTRI-WH-10-UNV LED High Bay
1 1

EnVision

EnVision LED-RHB3C-3P150-CTRI-WH-10-UNV – C-Line

EnVision LED-RHB3C-3P150-CTRI-WH-10-UNV – C-Line

$119.00
$119.00
Sale Sold out

LED-RHB3C-3P150-CTRI-WH-10-UNV
Request a Quote
Product Overview

Engineered for manufacturing floors, the EnVision LED-RHB3C-3P150-CTRI-WH-10-UNV high bay provides up to 22,500 lumens with selectable 150/100/60w output across a 120-277V range, pairing verified performance with fast field specification.

Key Features
  • Selectable power: 150/100/60w set at install, one SKU covering multiple loads
  • Output: up to 22,500 lumens matching the selected wattage
  • Field-selectable color: 3500K-5000K (3 CCT) chosen on the fixture, no re-order
  • Dimming: 0-10V for smooth level control
  • Beam angle: 110° for even coverage
  • Color rendering: CRI >80
  • Rating: Wet Location IP65
  • Finish: White
  • Compliance: UL/DLC Listed, 5-year warranty
Technical Specifications
Brand EnVision
Wattage 150/100/60w
Lumens 22,500/15,000/9,000
Color Temperature 3500K-5000K (3 CCT)
Voltage 120-277V
Dimming 0-10V
Beam Angle 110°
CRI >80
IP Rating Wet Location IP65
Finish White
Certification UL/DLC PREM/ 5 Yrs
Box Quantity 1
UPC 819715020193
Applications

Suited to manufacturing floors, gymnasiums and big-box retail, and high-ceiling industrial bays.

Compatibility & Installation Notes

Confirm mounting height and required foot-candles for your ceiling before ordering. Set the wattage and CCT switches before final mounting. Verify the location suits a wet-rated fixture. DLC listing supports utility rebates—verify your program's current QPL.

Choose the LED-RHB3C-3P150-CTRI-WH-10-UNV when a project needs dependable output with minimal spec overhead.
