EnVision LED-RHB3C-3P150-CTRI-WH-10-HV – C-Line
EnVision LED-RHB3C-3P150-CTRI-WH-10-HV – C-Line
SKU:LED-RHB3C-3P150-CTRI-WH-10-HV
Couldn't load pickup availability

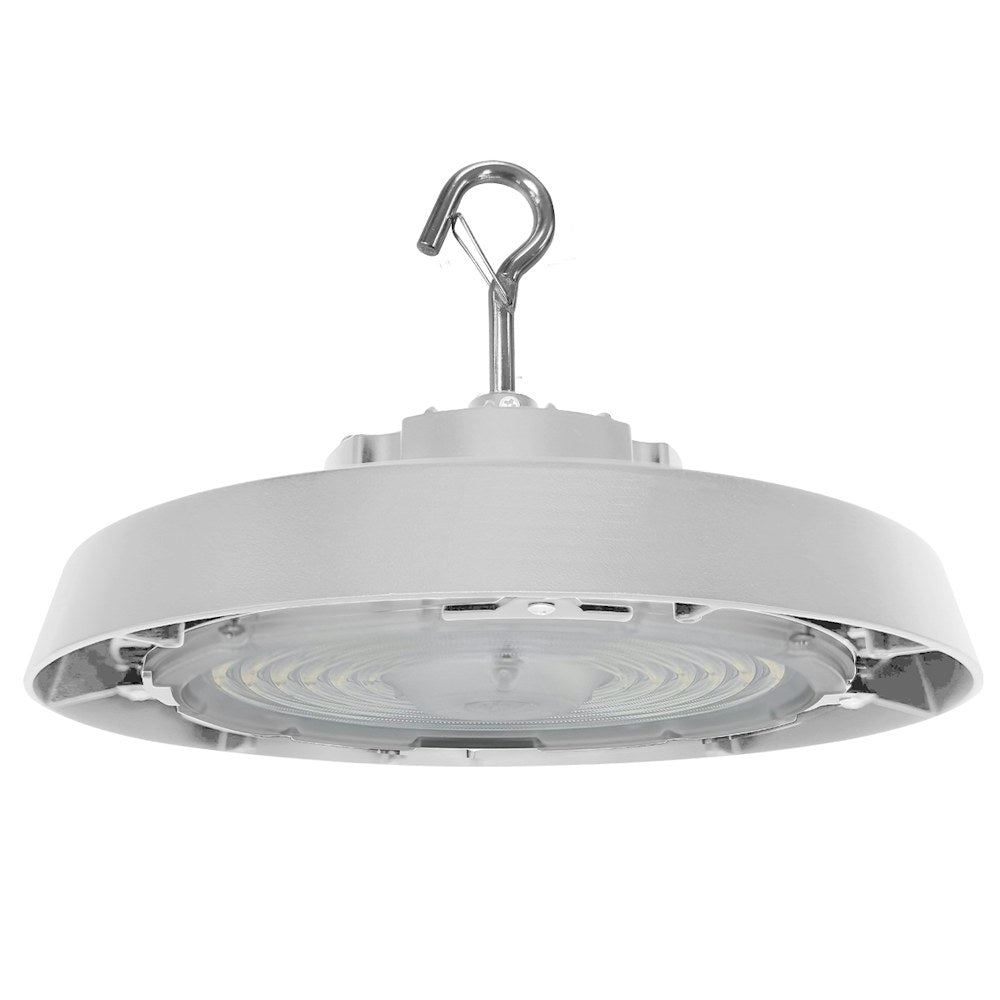

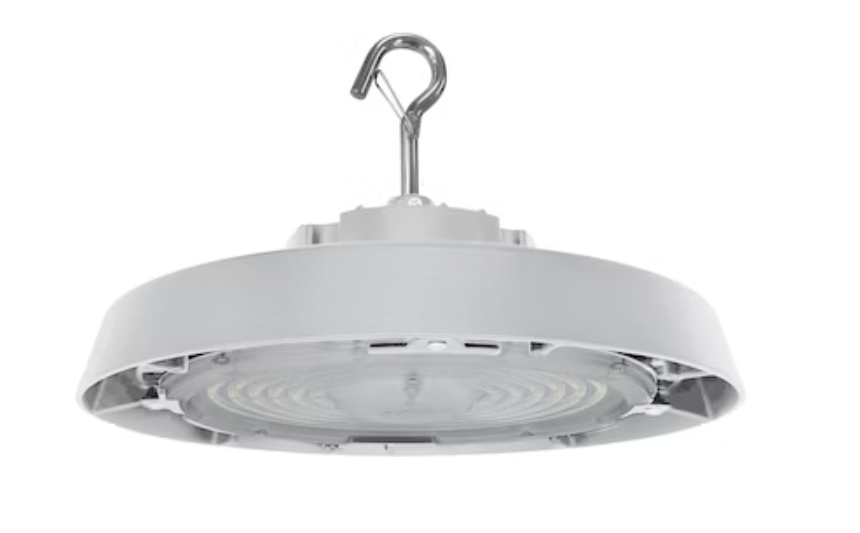

EnVision's LED-RHB3C-3P150-CTRI-WH-10-HV high bay supplies up to 22,500 lumens with selectable 150/100/60w output on universal 277-480V, suited to high-ceiling industrial bays with straightforward install and confirmation.
Key Features- Selectable power: 150/100/60w set at install, one SKU covering multiple loads
- Output: up to 22,500 lumens matching the selected wattage
- Field-selectable color: 3500K-5000K (3 CCT) chosen on the fixture, no re-order
- Dimming: 0-10V for smooth level control
- Beam angle: 110° for even coverage
- Color rendering: CRI >80
- Rating: Wet Location IP65
- Finish: White
- Compliance: UL/DLC Listed, 5-year warranty
| Brand | EnVision |
|---|---|
| Wattage | 150/100/60w |
| Lumens | 22,500/15,000/9,000 |
| Color Temperature | 3500K-5000K (3 CCT) |
| Voltage | 277-480V |
| Dimming | 0-10V |
| Beam Angle | 110° |
| CRI | >80 |
| IP Rating | Wet Location IP65 |
| Finish | White |
| Certification | UL/DLC PREM/ 5 Yrs |
| Box Quantity | 1 |
| UPC | 819715020179 |
Suited to high-ceiling industrial bays, warehouse and distribution ceilings, and manufacturing floors.
Compatibility & Installation NotesConfirm mounting height and required foot-candles for your ceiling before ordering. Set the wattage and CCT switches before final mounting. Verify the location suits a wet-rated fixture. DLC listing supports utility rebates—verify your program's current QPL.
Order the LED-RHB3C-3P150-CTRI-WH-10-HV to standardize on one flexible fixture across the job.
