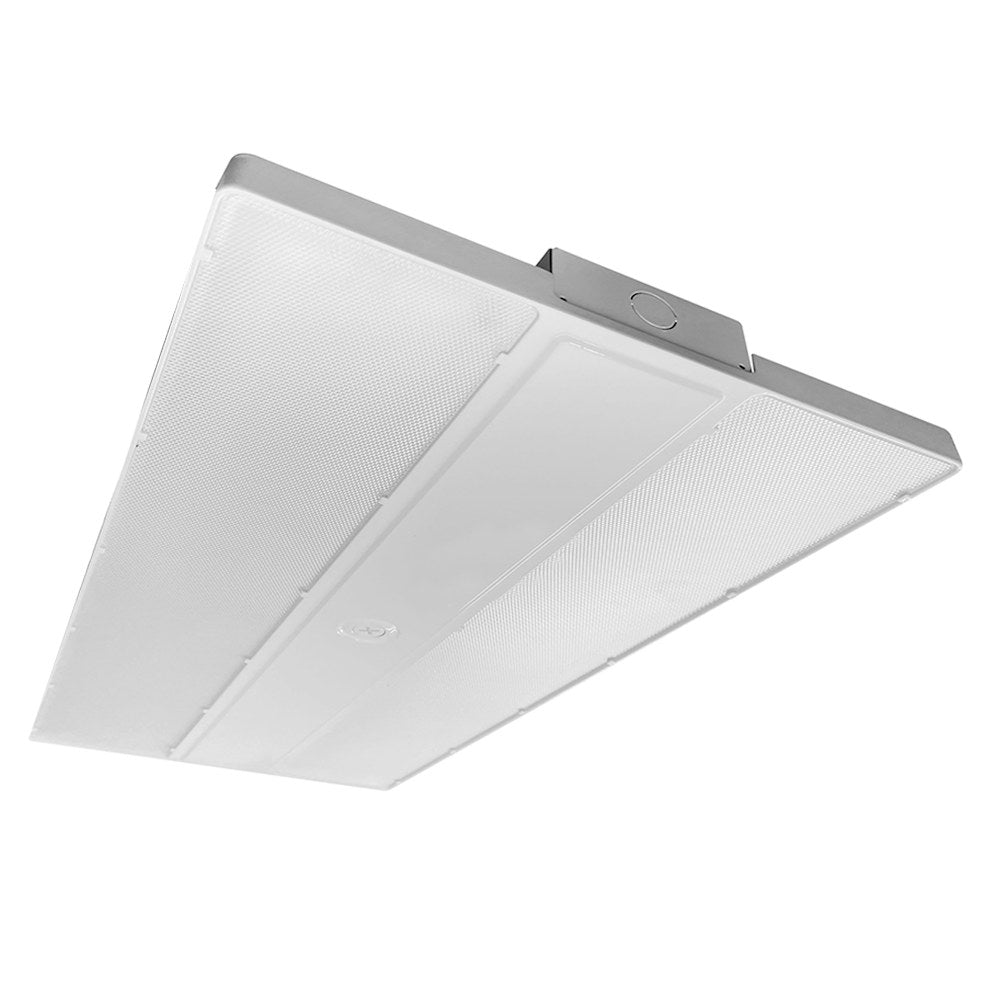

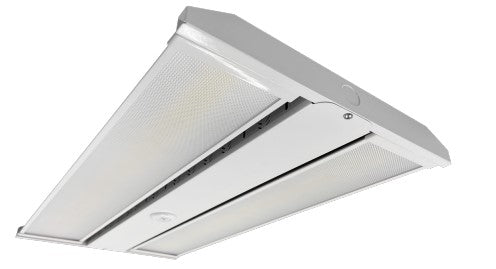

EnVision LED-LHB-2FT-3P440-4CCT-HV – C-Line
EnVision LED-LHB-2FT-3P440-4CCT-HV – C-Line
SKU:LED-LHB-2FT-3P440-4CCT-HV
Couldn't load pickup availability
The EnVision LED-LHB-2FT-3P440-4CCT-HV is a high bay rated for up to 66,000 lumens with selectable 440/410/380w output, operating on 277-480V. A dependable choice for gymnasiums and big-box retail where consistent light and clean specs matter.
Key Features- Selectable power: 440/410/380w set at install, one SKU covering multiple loads
- Output: up to 66,000 lumens matching the selected wattage
- Field-selectable color: 3000K-5000K (4 CCT) chosen on the fixture, no re-order
- Dimming: 0-10V for smooth level control
- Beam angle: 90° for even coverage
- Color rendering: CRI >80
- Rating: Damp Location
- Finish: White Frosted
- Compliance: UL/DLC Listed, 5-year warranty
- Packaged 2 per box
| Brand | EnVision |
|---|---|
| Wattage | 440/410/380w |
| Lumens | 66,000/61,500/57,000 |
| Color Temperature | 3000K-5000K (4 CCT) |
| Voltage | 277-480V |
| Dimming | 0-10V |
| Beam Angle | 90° |
| CRI | >80 |
| IP Rating | Damp Location |
| Finish | White Frosted |
| Certification | UL/DLC PREM/ 5 Yrs |
| Box Quantity | 2 |
| UPC | 819715021145 |
Suited to gymnasiums and big-box retail, high-ceiling industrial bays, and warehouse and distribution ceilings.
Compatibility & Installation NotesConfirm mounting height and required foot-candles for your ceiling before ordering. Set the wattage and CCT switches before final mounting. Verify the location suits a damp-rated fixture. DLC listing supports utility rebates—verify your program's current QPL.
The LED-LHB-2FT-3P440-4CCT-HV is a practical pick for installers who want verified specs and fast sourcing.
