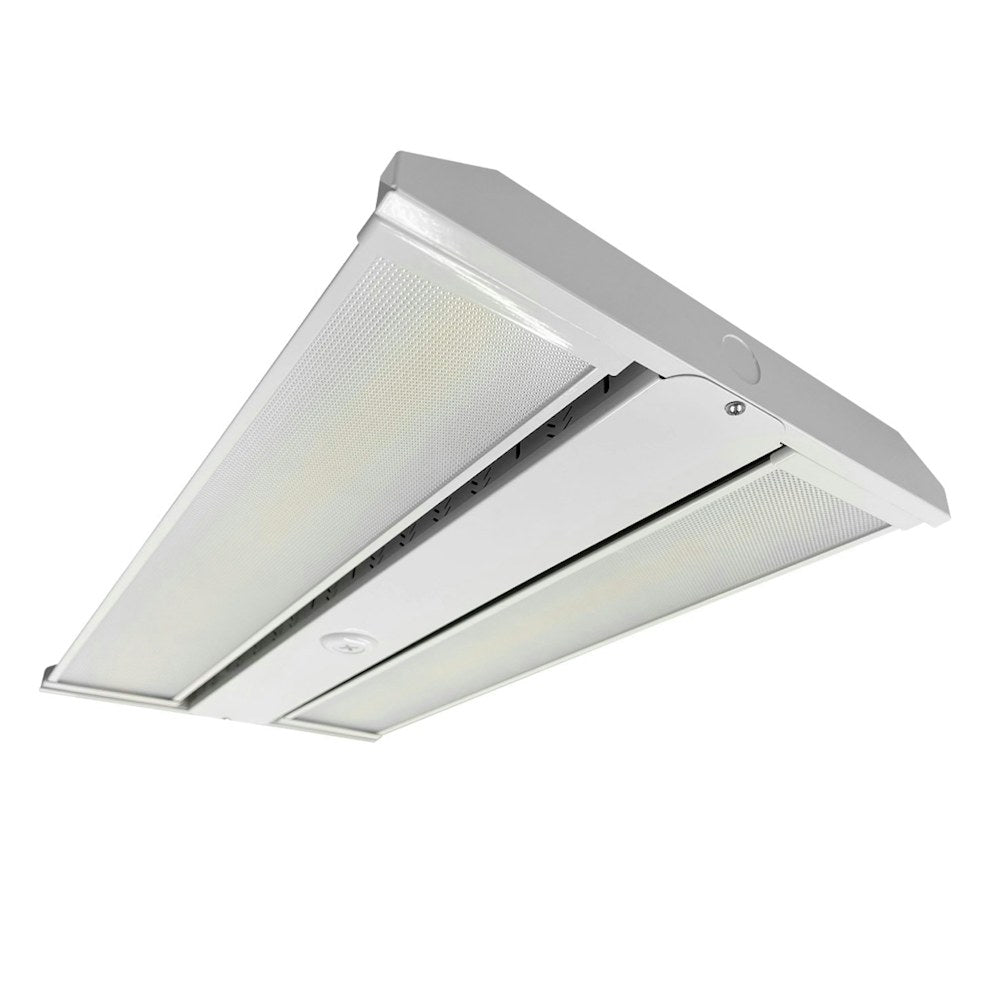

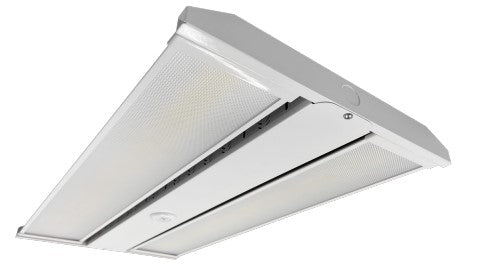

• EnVision LED-LHB-2FT-3P220-4CCT-UNV LED High Bay
1 1

EnVision

EnVision LED-LHB-2FT-3P220-4CCT-UNV – C-Line

EnVision LED-LHB-2FT-3P220-4CCT-UNV – C-Line

$168.00
$168.00
Sale Sold out

LED-LHB-2FT-3P220-4CCT-UNV
Request a Quote
Product Overview

Engineered for manufacturing floors, the EnVision LED-LHB-2FT-3P220-4CCT-UNV high bay provides up to 33,000 lumens with selectable 220/200/180w output across a 120-277V range, pairing verified performance with fast field specification.

Key Features
  • Selectable power: 220/200/180w set at install, one SKU covering multiple loads
  • Output: up to 33,000 lumens matching the selected wattage
  • Field-selectable color: 3000K-5000K (4 CCT) chosen on the fixture, no re-order
  • Dimming: 0-10V for smooth level control
  • Beam angle: 90° for even coverage
  • Color rendering: CRI >80
  • Rating: Damp Location
  • Finish: White Frosted
  • Compliance: UL/DLC Listed, 5-year warranty
  • Packaged 2 per box
Technical Specifications
Brand EnVision
Wattage 220/200/180w
Lumens 33,000/30,000/27,000
Color Temperature 3000K-5000K (4 CCT)
Voltage 120-277V
Dimming 0-10V
Beam Angle 90°
CRI >80
IP Rating Damp Location
Finish White Frosted
Certification UL/DLC PREM/ 5 Yrs
Box Quantity 2
UPC 819715023644
Applications

Suited to manufacturing floors, gymnasiums and big-box retail, and high-ceiling industrial bays.

Compatibility & Installation Notes

Confirm mounting height and required foot-candles for your ceiling before ordering. Set the wattage and CCT switches before final mounting. Verify the location suits a damp-rated fixture. DLC listing supports utility rebates—verify your program's current QPL.

Choose the LED-LHB-2FT-3P220-4CCT-UNV when a project needs dependable output with minimal spec overhead.
