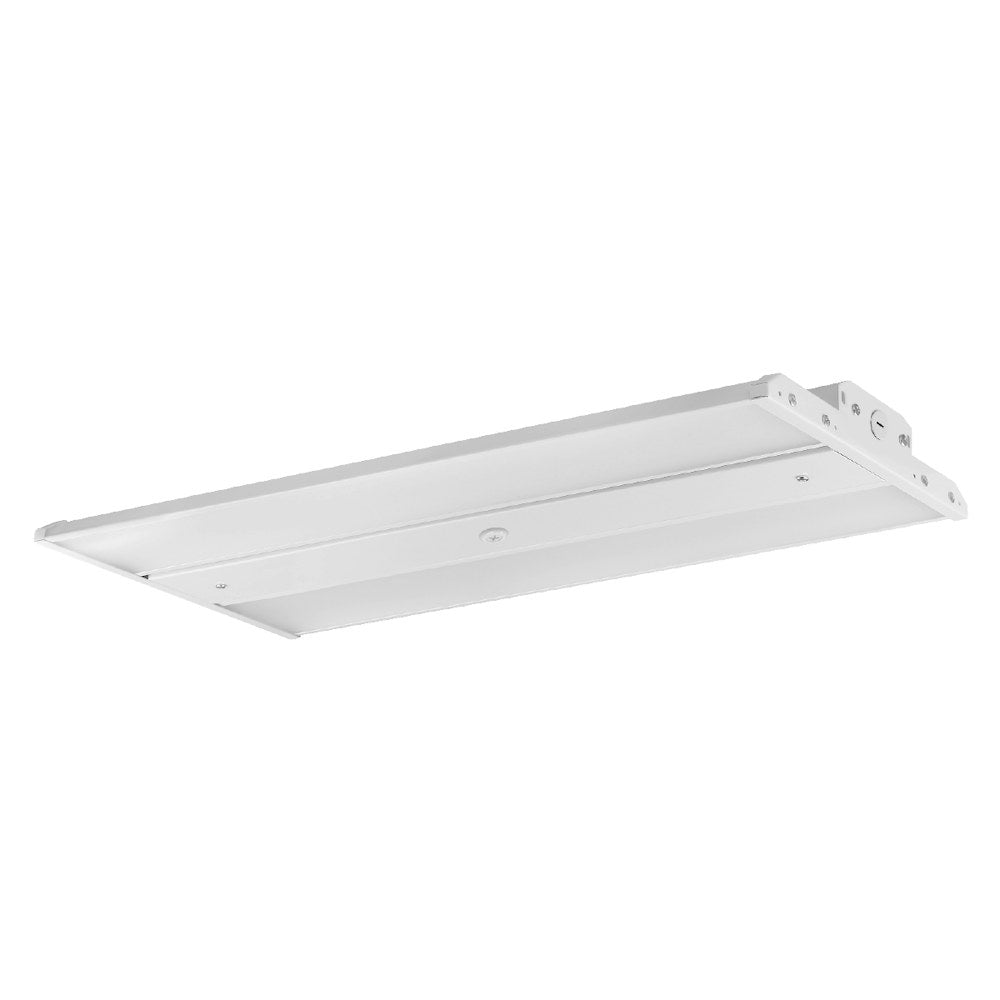

EnVision LED-LHB-2FT-3P165-F-50K-UNV – Slim-Line G2

EnVision LED-LHB-2FT-3P165-F-50K-UNV – Slim-Line G2

$147.00
$147.00
Sale Sold out

LED-LHB-2FT-3P165-F-50K-UNV
Request a Quote
Product Overview

The EnVision LED-LHB-2FT-3P165-F-50K-UNV is a high bay rated for up to 23,925 lumens with selectable 165/150/125w output, operating on 120-277V. A dependable choice for gymnasiums and big-box retail where consistent light and clean specs matter.

Key Features
  • Selectable power: 165/150/125w set at install, one SKU covering multiple loads
  • Output: up to 23,925 lumens matching the selected wattage
  • Color temperature: 5000K
  • Dimming: 0-10V for smooth level control
  • Beam angle: 90° for even coverage
  • Color rendering: CRI >80
  • Rating: Damp Location
  • Finish: White Frosted
  • Compliance: UL/DLC Listed, 5-year warranty
  • Packaged 2 per box
Technical Specifications
Brand EnVision
Wattage 165/150/125w
Lumens 23,925/21,750/18,125
Color Temperature 5000K
Voltage 120-277V
Dimming 0-10V
Beam Angle 90°
CRI >80
IP Rating Damp Location
Finish White Frosted
Certification UL/DLC PREM/ 5 Yrs
Box Quantity 2
UPC 852321007776
Applications

Suited to gymnasiums and big-box retail, high-ceiling industrial bays, and warehouse and distribution ceilings.

Compatibility & Installation Notes

Confirm mounting height and required foot-candles for your ceiling before ordering. Set the wattage and CCT switches before final mounting. Verify the location suits a damp-rated fixture. DLC listing supports utility rebates—verify your program's current QPL.

The LED-LHB-2FT-3P165-F-50K-UNV is a practical pick for installers who want verified specs and fast sourcing.
