EnVision LED-LHB-1FT-3P165-4CCT-UNV – C-Line
EnVision LED-LHB-1FT-3P165-4CCT-UNV – C-Line
SKU:LED-LHB-1FT-3P165-4CCT-UNV
Couldn't load pickup availability

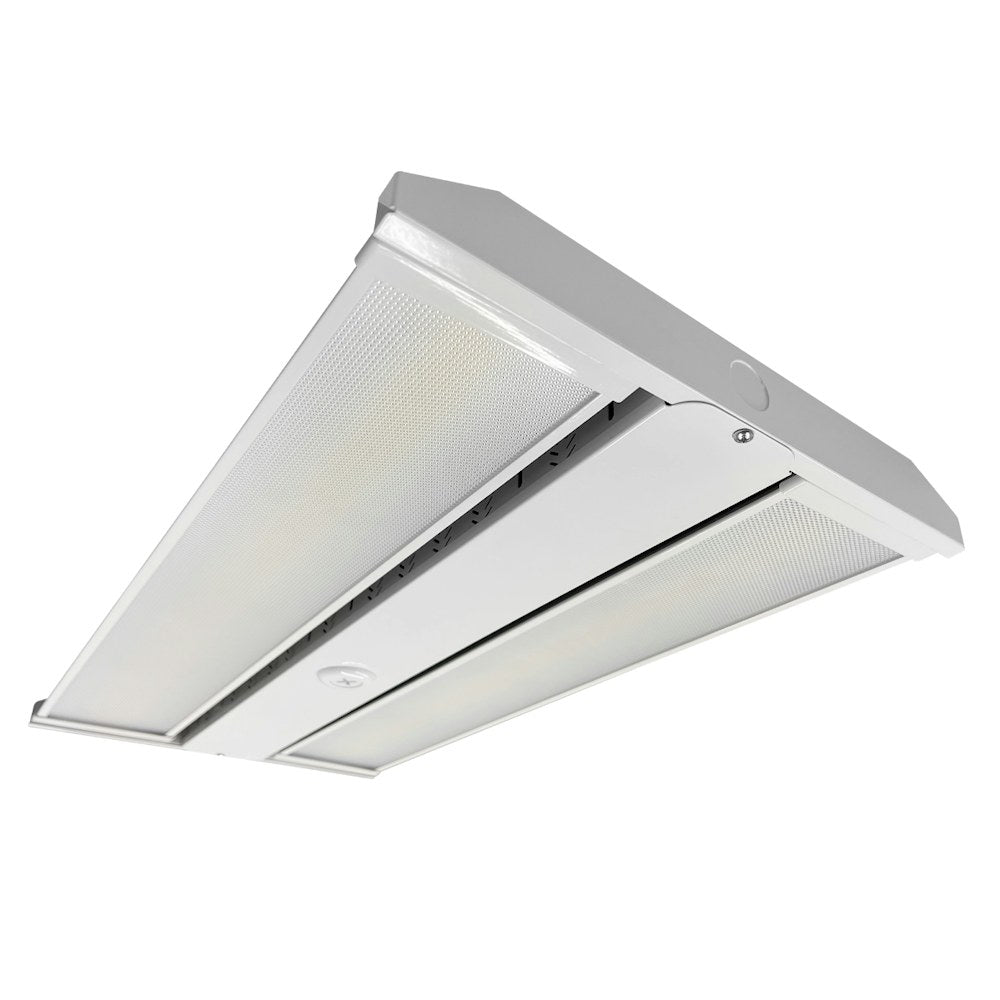

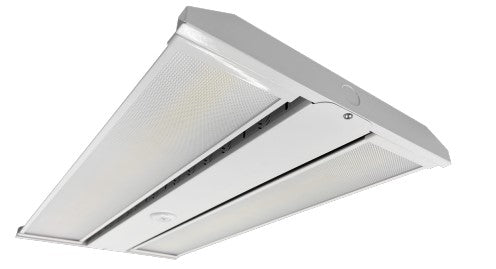

EnVision's LED-LHB-1FT-3P165-4CCT-UNV high bay supplies up to 24,750 lumens with selectable 165/110/60w output on universal 120-277V, suited to high-ceiling industrial bays with straightforward install and confirmation.
Key Features- Selectable power: 165/110/60w set at install, one SKU covering multiple loads
- Output: up to 24,750 lumens matching the selected wattage
- Field-selectable color: 3000K-5000K (4 CCT) chosen on the fixture, no re-order
- Dimming: 0-10V for smooth level control
- Beam angle: 90° for even coverage
- Color rendering: CRI >80
- Rating: Damp Location
- Finish: White Frosted
- Compliance: UL/DLC Listed, 5-year warranty
- Packaged 4 per box
| Brand | EnVision |
|---|---|
| Wattage | 165/110/60w |
| Lumens | 24,750/16,500/9,000 |
| Color Temperature | 3000K-5000K (4 CCT) |
| Voltage | 120-277V |
| Dimming | 0-10V |
| Beam Angle | 90° |
| CRI | >80 |
| IP Rating | Damp Location |
| Finish | White Frosted |
| Certification | UL/DLC PREM/ 5 Yrs |
| Box Quantity | 4 |
| UPC | 819715023651 |
Suited to high-ceiling industrial bays, warehouse and distribution ceilings, and manufacturing floors.
Compatibility & Installation NotesConfirm mounting height and required foot-candles for your ceiling before ordering. Set the wattage and CCT switches before final mounting. Verify the location suits a damp-rated fixture. DLC listing supports utility rebates—verify your program's current QPL.
Order the LED-LHB-1FT-3P165-4CCT-UNV to standardize on one flexible fixture across the job.
