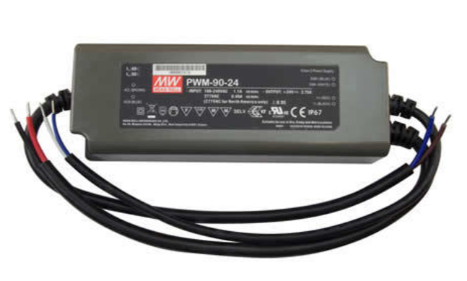

Diode LED Commercial Grade 24V DC 0-10V Dimmable Driver, 90W (DI-DM-MW24V90W-0-10V)
Diode LED Commercial Grade 24V DC 0-10V Dimmable Driver, 90W (DI-DM-MW24V90W-0-10V)
Regular price
$229.95
Regular price
Sale price
$229.95
SKU:DI-DM-MW24V90W-0-10V
Quantity
Couldn't load pickup availability
The Diode LED DI-DM-MW24V90W-0-10V powers low-voltage LED lighting as a 90 W 24 VDC driver with 0-10V dimming. It supplies regulated low-voltage output for LED tape and fixtures on managed lighting circuits.
Key Features
- 0-10V control integrates with commercial dimming panels and sensors
- Accepts 120~277VAC, dropping into standard line-voltage circuits
- Class 2 output simplifies low-voltage wiring and code compliance
- Regulated constant-voltage output drives LED tape and fixtures at a stable voltage
Technical Specifications
| Brand | Diode LED |
|---|---|
| Model / SKU | DI-DM-MW24V90W-0-10V |
| Product Type | LED Driver |
| Input Voltage | 120~277VAC |
| Output Voltage | 24 VDC |
| Wattage | 90 W |
| Output Type | Constant Voltage |
| Dimming Type | 0-10V |
| Class Rating | Class 2 |
Applications
Common applications include:
- Low-voltage LED tape and fixture power
- Commercial dimming lighting systems
- Retrofit and new-construction low-voltage lighting
Confirm the connected load stays within 90 W at 24 VDC and drive it from a 0-10V control.
Lumera Electric supplies this Diode LED driver for regulated low-voltage LED runs.
