Diode LED LO-PRO Junction Box and Driver Combo - Commercial Grade 12V DC 0-10V Dimmable Driver, 40W (DI-DM-MW12V40W-0-10V-LPS)
Diode LED LO-PRO Junction Box and Driver Combo - Commercial Grade 12V DC 0-10V Dimmable Driver, 40W (DI-DM-MW12V40W-0-10V-LPS)
Regular price
$263.25
Regular price
Sale price
$263.25
SKU:DI-DM-MW12V40W-0-10V-LPS
Quantity
Couldn't load pickup availability

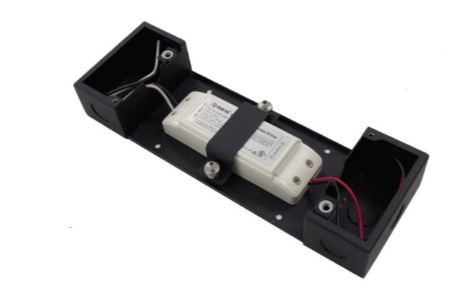

The Diode LED DI-DM-MW12V40W-0-10V-LPS is a 40 W 12 VDC constant-voltage LED driver with 0-10V dimming. It supplies regulated low-voltage output for LED tape and fixtures on managed lighting circuits.
Key Features
- 0-10V control integrates with commercial dimming panels and sensors
- Integrated LO-PRO junction box combines driver and wiring box in one low-profile housing
- Regulated constant-voltage output drives LED tape and fixtures at a stable voltage
Technical Specifications
| Brand | Diode LED |
|---|---|
| Model / SKU | DI-DM-MW12V40W-0-10V-LPS |
| Product Type | LED Driver |
| Output Voltage | 12 VDC |
| Wattage | 40 W |
| Output Type | Constant Voltage |
| Dimming Type | 0-10V |
| Location Rating | Indoor Knockouts: 0.5 in. knockouts Material: Powder-coated stainless steel |
Applications
Common applications include:
- Low-voltage LED tape and fixture power
- Commercial dimming lighting systems
- Retrofit and new-construction low-voltage lighting
Confirm the connected load stays within 40 W at 12 VDC and drive it from a 0-10V control.
Lumera Electric stocks the Diode LED DI-DM-MW12V40W-0-10V-LPS for contractors wiring dimmable low-voltage lighting.
