Diode LED
Diode LED 12V 40W Commercial Grade Driver - Class 2 (DI-CV-MW12V40W-277)
Diode LED 12V 40W Commercial Grade Driver - Class 2 (DI-CV-MW12V40W-277)
Regular price
$132.75
Regular price
Sale price
$132.75
SKU:DI-CV-MW12V40W-277
Quantity
Couldn't load pickup availability

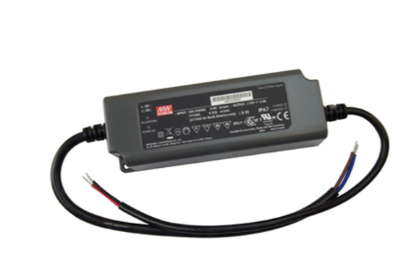

The Diode LED DI-CV-MW12V40W-277 is a 40 W 12 VDC constant-voltage LED driver. It supplies regulated low-voltage output for LED tape and fixtures on managed lighting circuits.
Key Features
- Accepts 120~277VAC, dropping into standard line-voltage circuits
- Class 2 output simplifies low-voltage wiring and code compliance
- Wet-location rating supports damp and wet installation sites
- Regulated constant-voltage output drives LED tape and fixtures at a stable voltage
Technical Specifications
| Brand | Diode LED |
|---|---|
| Model / SKU | DI-CV-MW12V40W-277 |
| Product Type | LED Driver |
| Input Voltage | 120~277VAC |
| Output Voltage | 12 VDC |
| Wattage | 40 W |
| Output Type | Constant Voltage |
| Class Rating | Class 2 |
| Location Rating | IP67 outdoor/wet location when installed in wet location J-Box. Lo-Pro J-Box & Driver Combo is suitable for indoor/dry locations. Working Humidity: 20 ~ 95% RH non-condensing Housing / Cooling: Plastic housing/cooling by free air convection UL Recognized Component: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13 independent, EN62384, IP67 approved; Design refer to EN60335-1. CE Certified. Power / Max Load: 40W / 3.3A Output Full Load: 12VDC Class 2: Yes Minimum Load: None |
Applications
Common applications include:
- Low-voltage LED tape and fixture power
- Commercial and residential LED lighting
- Retrofit and new-construction low-voltage lighting
- Damp and wet-location installations
Confirm the connected load stays within 40 W at 12 VDC.
Lumera Electric stocks the Diode LED DI-CV-MW12V40W-277 for low-voltage LED lighting power.
