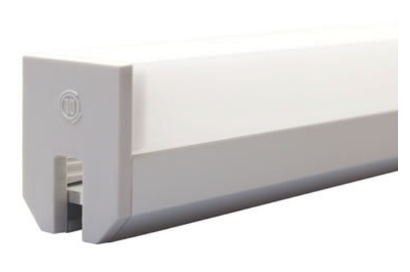

Diode LED Channel Component, Single End Cap Pair, SQUARE, Premium Diffusion, White (DI-CPEC-SQPDW-1)

Built for LED tape systems, the Diode LED DI-CPEC-SQPDW-1 is a aluminum LED channel housing that carries and protects low-voltage strip light (with a premium diffusion lens). Aluminum construction doubles as a heat sink to help protect the tape and preserve run length.

Key Features

• Premium Diffusion lens diffuses the LEDs into a continuous line with reduced dotting
• Aluminum body draws heat away from the tape to support output and color stability

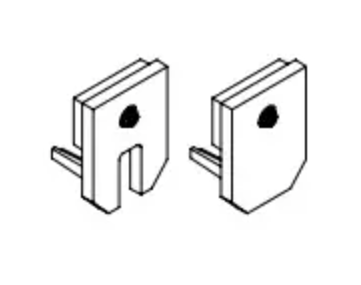

• Ships with 1 closed end-cap and 1 open end-cap. finish: white shape: square, so the run installs without sourcing separate finishing parts
• Cut-to-length aluminum extrusion fits custom cabinet and casework dimensions
• Pairs with matching Diode LED lenses, end caps, and mounting clips in the same channel series

Technical Specifications

Applications

Common applications include:

• Under-cabinet and above-cabinet accent lighting
• Cove, toe-kick, and perimeter lighting
• Shelf, display, and millwork edge lighting

Confirm your LED tape width fits the channel opening and plan cuts to the fixed length before mounting.

Lumera Electric carries the Diode LED DI-CPEC-SQPDW-1 led channel component for finished low-voltage tape light runs.
