Diode LED Channel Bundle, 20MM ROUNDED CORNER, 96 in, Frosted Lens, 2 open/closed end cap set, 6 mounting clips (DI-CPCHB-RC20-96)

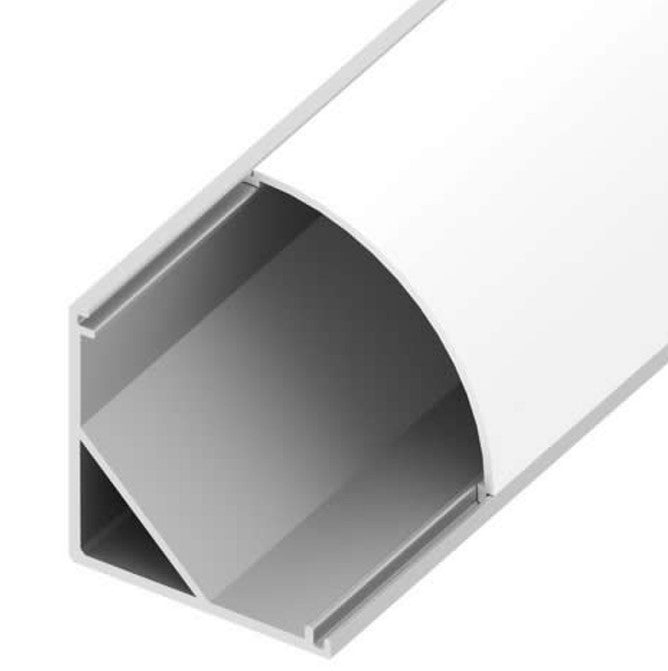

The Diode LED DI-CPCHB-RC20-96 is a aluminum LED channel housing that mounts low-voltage LED tape light for a finished linear run (in a 96 in length, with a frosted lens). Aluminum construction doubles as a heat sink to help protect the tape and preserve run length.

Key Features

• Frosted lens diffuses the LEDs into a continuous line with reduced dotting
• Aluminum body draws heat away from the tape to support output and color stability

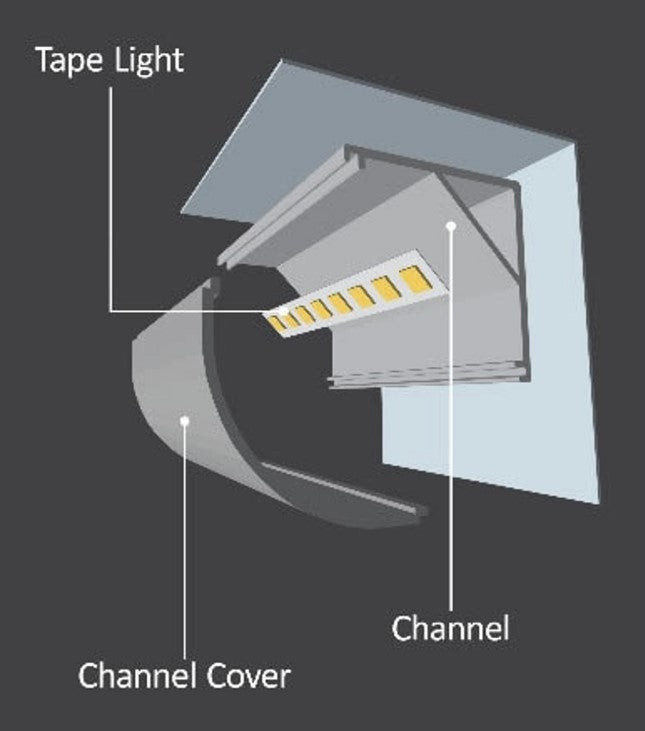

• Ships with 96 in. channel & frosted cover, end caps: 2x open, 2x closed, so the run installs without sourcing separate finishing parts
• Supplied as a complete bundle for a ready-to-mount linear section
• Cut-to-length aluminum extrusion fits custom cabinet and casework dimensions

Technical Specifications

Applications

Common applications include:

• Under-cabinet and above-cabinet accent lighting
• Cove, toe-kick, and perimeter lighting
• Shelf, display, and millwork edge lighting

Verify tape width against the channel opening and account for the 96 in length in delivery and handling; support the extrusion at its clip points to keep a long run straight.

Lumera Electric stocks the Diode LED led channel bundle for contractors detailing LED tape runs in cabinets, coves, and millwork.
