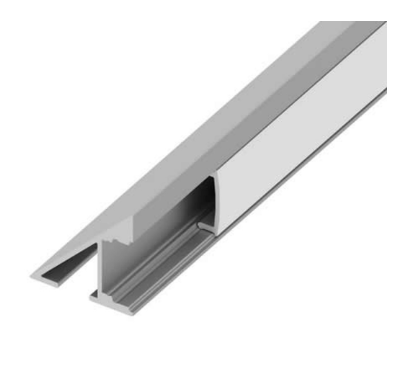

Diode LED Channel Bundle, 90-Degree SIDEVIEW, 96 in, Frosted Lens, 2 open/closed end cap set, 6 mounting clips (DI-CPCHB-90SD-96)

Built for LED tape systems, the Diode LED DI-CPCHB-90SD-96 is a aluminum LED channel housing that carries and protects low-voltage strip light (in a 96 in length, with a frosted lens). Aluminum construction doubles as a heat sink to help protect the tape and preserve run length.

Key Features

• Frosted lens diffuses the LEDs into a continuous line with reduced dotting
• Aluminum body draws heat away from the tape to support output and color stability
• Ships with 2x 96 in. channel & 2x frosted cover, end caps: 2x open, 2x closed, so the run installs without sourcing separate finishing parts
• Supplied as a complete bundle for a ready-to-mount linear section
• Cut-to-length aluminum extrusion fits custom cabinet and casework dimensions

Technical Specifications

Applications

Common applications include:

• Under-cabinet and above-cabinet accent lighting
• Cove, toe-kick, and perimeter lighting
• Shelf, display, and millwork edge lighting

Verify tape width against the channel opening and account for the 96 in length in delivery and handling; support the extrusion at its clip points to keep a long run straight.

Lumera Electric carries the Diode LED DI-CPCHB-90SD-96 led channel bundle for finished low-voltage tape light runs.
