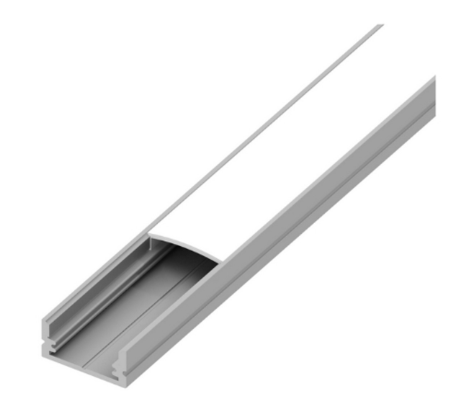

Diode LED Channel Bundle, S1, 48 in, Frosted Lens, 1 open/closed end cap set, 2 mounting clips (DI-CHB-S1-48AL)

The Diode LED DI-CHB-S1-48AL provides a aluminum LED channel housing for housing and finishing low-voltage LED tape light (in a 48 in length, with a frosted lens). Aluminum construction doubles as a heat sink to help protect the tape and preserve run length.

Key Features

• Frosted lens diffuses the LEDs into a continuous line with reduced dotting
• Aluminum body draws heat away from the tape to support output and color stability
• Ships with (2) end caps, (2), so the run installs without sourcing separate finishing parts
• Supplied as a complete bundle for a ready-to-mount linear section
• Cut-to-length aluminum extrusion fits custom cabinet and casework dimensions

Technical Specifications

Applications

Common applications include:

• Under-cabinet and above-cabinet accent lighting
• Cove, toe-kick, and perimeter lighting
• Shelf, display, and millwork edge lighting

Verify tape width against the channel opening and account for the 48 in length in delivery and handling; support the extrusion at its clip points to keep a long run straight.

Lumera Electric supplies this Diode LED led channel bundle for clean linear LED tape installations.
