Diode LED VALENT X 800 24V High Output Tape Light, 4000K - 16.4 ft. Spool (DI-24V-VLX8-40-016)
Diode LED VALENT X 800 24V High Output Tape Light, 4000K - 16.4 ft. Spool (DI-24V-VLX8-40-016)
Regular price
$945.90
Regular price
Sale price
$945.90
SKU:DI-24V-VLX8-40-016
Quantity
Couldn't load pickup availability

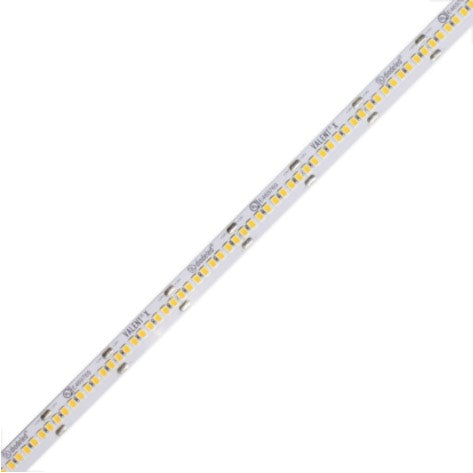

The Diode LED DI-24V-VLX8-40-016 LED tape light delivers 906 lm/ft on a low-voltage platform. It runs on Diode LED's low-voltage tape format for interior task, accent, and display lighting.
Key Features
- Draws 7.2 W/ft, so a run's total load and driver size are easy to size
- Cut points every 1.34 in terminate cleanly at cabinet lengths
- Single runs up to 19 ft reduce separate feeds on longer installs
Technical Specifications
| Brand | Diode LED |
|---|---|
| Model / SKU | DI-24V-VLX8-40-016 |
| Product Type | LED Tape Light |
| Wattage | 7.2 W/ft |
| Lumens | 906 lm/ft |
| Cut Interval | 1.34 in |
| Max Run | 19 ft |
| Dimmable | Yes Field Cuttable: Yes |
| Location Rating | Indoor / Damp Location |
| Certification | UL Listed 2108 |
Applications
Common applications include:
- Under-cabinet and shelf task lighting
- Cove and millwork accent lighting
- Display and retail lighting
- Interior dry or damp-location linear lighting
Requires a matching constant-voltage driver sized above the run wattage; keep this run to indoor / damp location locations.
Lumera Electric carries the Diode LED DI-24V-VLX8-40-016 tape light for interior linear lighting.
