Diode LED VALENT X 500 Wet Location Strip Light, 24V, 2700K, 16.4 ft. Spool (DI-24V-VLX5-27-W016)
Diode LED VALENT X 500 Wet Location Strip Light, 24V, 2700K, 16.4 ft. Spool (DI-24V-VLX5-27-W016)
Regular price
$967.50
Regular price
Sale price
$967.50
SKU:DI-24V-VLX5-27-W016
Quantity
Couldn't load pickup availability

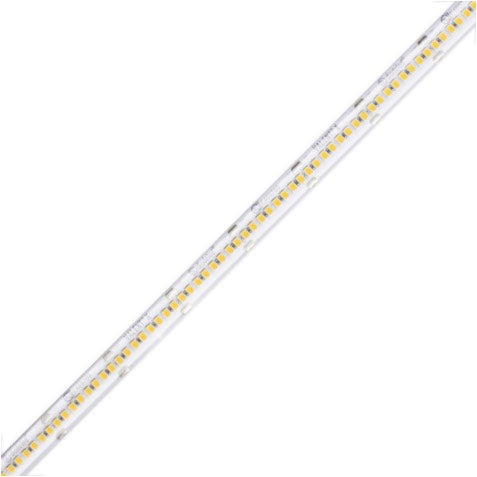

The Diode LED DI-24V-VLX5-27-W016 LED tape light delivers 466 lm/ft at 2700K on a low-voltage platform. It runs on Diode LED's low-voltage tape format for interior task, accent, and display lighting.
Key Features
- Draws 4.6 W/ft, so a run's total load and driver size are easy to size
- Cut points every 1.32 in terminate cleanly at cabinet lengths
- Single runs up to 30 ft reduce separate feeds on longer installs
Technical Specifications
| Brand | Diode LED |
|---|---|
| Model / SKU | DI-24V-VLX5-27-W016 |
| Product Type | LED Tape Light |
| Wattage | 4.6 W/ft |
| Lumens | 466 lm/ft |
| Color Temperature | 2700K |
| Cut Interval | 1.32 in |
| Max Run | 30 ft |
| Dimmable | Yes Field Cuttable: Yes |
| Location Rating | Indoor / Outdoor / IP65 |
| Certification | UL Listed 2108 |
Applications
Common applications include:
- Under-cabinet and shelf task lighting
- Cove and millwork accent lighting
- Display and retail lighting
Requires a matching constant-voltage driver sized above the run wattage; keep this run to indoor / outdoor / ip65 locations.
Lumera Electric carries the Diode LED DI-24V-VLX5-27-W016 tape light for interior linear lighting.
