Diode LED VALENT X 200 24V High-Density Tape Light, 4000K - 100 ft. Spool (DI-24V-VLX2-40-100)
Diode LED VALENT X 200 24V High-Density Tape Light, 4000K - 100 ft. Spool (DI-24V-VLX2-40-100)
Regular price
$3,159.45
Regular price
Sale price
$3,159.45
SKU:DI-24V-VLX2-40-100
Quantity
Couldn't load pickup availability

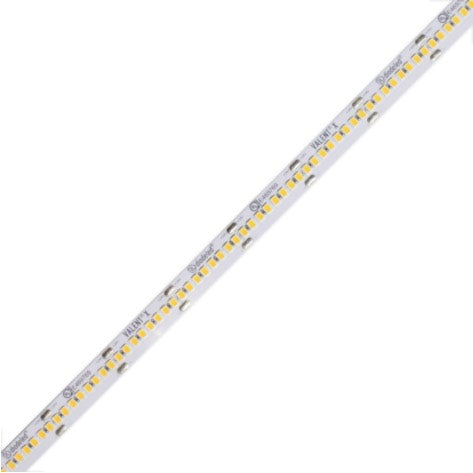

The Diode LED DI-24V-VLX2-40-100 LED tape light delivers 218 lm/ft at 4000K with 95+ CRI on a 24 Volt platform. It runs on Diode LED's low-voltage tape format for interior task, accent, and display lighting.
Key Features
- 95+ CRI renders finishes and merchandise accurately under close light
- Draws 1.9 W/ft, so a run's total load and driver size are easy to size
- Cut points every 1.32 in terminate cleanly at cabinet lengths
- Single runs up to 80 ft reduce separate feeds on longer installs
Technical Specifications
| Brand | Diode LED |
|---|---|
| Model / SKU | DI-24V-VLX2-40-100 |
| Product Type | LED Tape Light |
| Voltage | 24 Volt |
| Wattage | 1.9 W/ft |
| Lumens | 218 lm/ft |
| Color Temperature | 4000K |
| CRI | 95+ |
| LED Type | 2835 Guang Mau Chip |
| Beam Angle | 120° |
| Cut Interval | 1.32 in |
| Max Run | 80 ft |
| Dimmable | Yes Field Cuttable: Yes |
| Location Rating | Indoor / Damp Location |
| Certification | UL Listed 2108 |
Applications
Common applications include:
- Under-cabinet and shelf task lighting
- Cove and millwork accent lighting
- Display and retail lighting
- Interior dry or damp-location linear lighting
Requires a 24 Volt constant-voltage driver sized above the run wattage; keep this run to indoor / damp location locations.
Lumera Electric carries the Diode LED DI-24V-VLX2-40-100 for high-CRI under-cabinet and display lighting.
