Diode LED NEON BLAZE 24V Linear LED Light, Top Emitting, 2.4W/ft, 3000K, 32.8ft spool (DI-24V-TE-NBL2-30-32)
Diode LED NEON BLAZE 24V Linear LED Light, Top Emitting, 2.4W/ft, 3000K, 32.8ft spool (DI-24V-TE-NBL2-30-32)
Regular price
$1,129.50
Regular price
Sale price
$1,129.50
SKU:DI-24V-TE-NBL2-30-32
Quantity
Couldn't load pickup availability

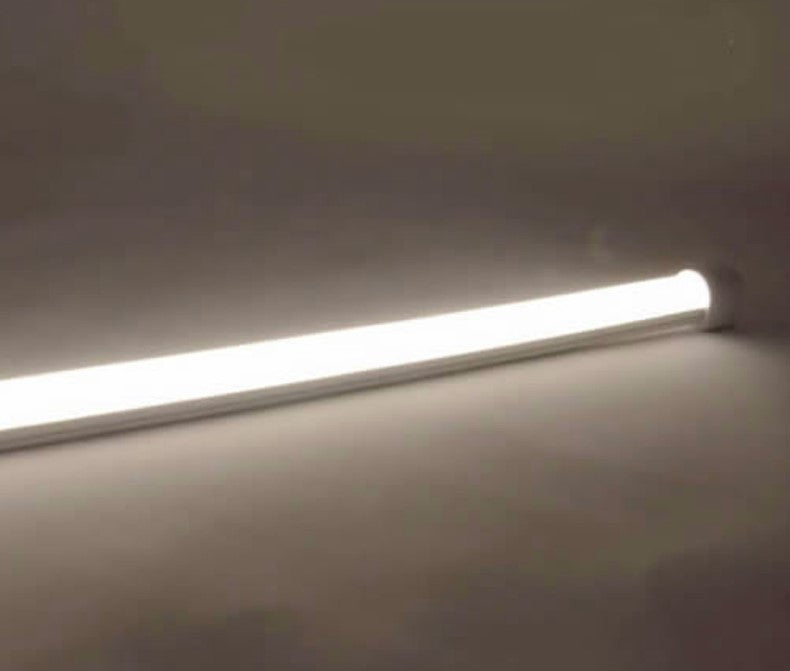

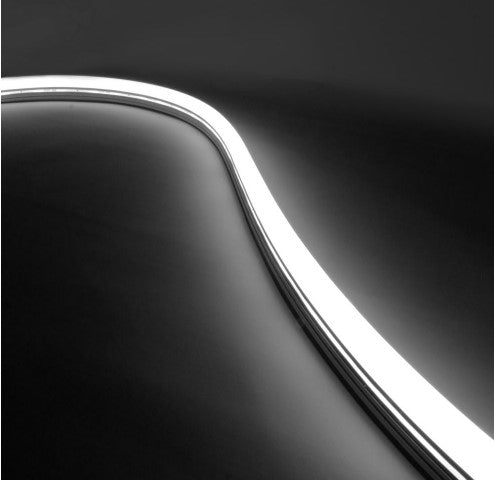

The Diode LED DI-24V-TE-NBL2-30-32 LED tape light delivers 219 lm/ft at 3000K with 80+ Diffusion: Zero Line Diffusion CRI on a 24 Volt platform. It runs on Diode LED's low-voltage tape format for interior task, accent, and display lighting.
Key Features
- 80+ Diffusion: Zero Line Diffusion CRI renders finishes and merchandise accurately under close light
- Draws 2.44 W/ft, so a run's total load and driver size are easy to size
- Cut points every 2 in terminate cleanly at cabinet lengths
- Single runs up to 32 ft reduce separate feeds on longer installs
Technical Specifications
| Brand | Diode LED |
|---|---|
| Model / SKU | DI-24V-TE-NBL2-30-32 |
| Product Type | LED Tape Light |
| Voltage | 24 Volt |
| Wattage | 2.44 W/ft |
| Lumens | 219 lm/ft |
| Color Temperature | 3000K |
| CRI | 80+ Diffusion: Zero Line Diffusion |
| Cut Interval | 2 in |
| Max Run | 32 ft |
| Dimmable | Yes Field Cuttable: Yes |
| Location Rating | Outdoor / Wet Location / IP65 |
| Certification | UL Listed 2108 |
Applications
Common applications include:
- Under-cabinet and shelf task lighting
- Cove and millwork accent lighting
- Display and retail lighting
Requires a 24 Volt constant-voltage driver sized above the run wattage; keep this run to outdoor / wet location / ip65 locations.
Lumera Electric carries the Diode LED DI-24V-TE-NBL2-30-32 for high-CRI under-cabinet and display lighting.
