Diode LED BLAZE X 100 LED Tape Light, 24V, 4200K, 100 ft. Spool (DI-24V-BLX1-42-100)
Diode LED BLAZE X 100 LED Tape Light, 24V, 4200K, 100 ft. Spool (DI-24V-BLX1-42-100)
Regular price
$1,275.75
Regular price
Sale price
$1,275.75
SKU:DI-24V-BLX1-42-100
Quantity
Couldn't load pickup availability

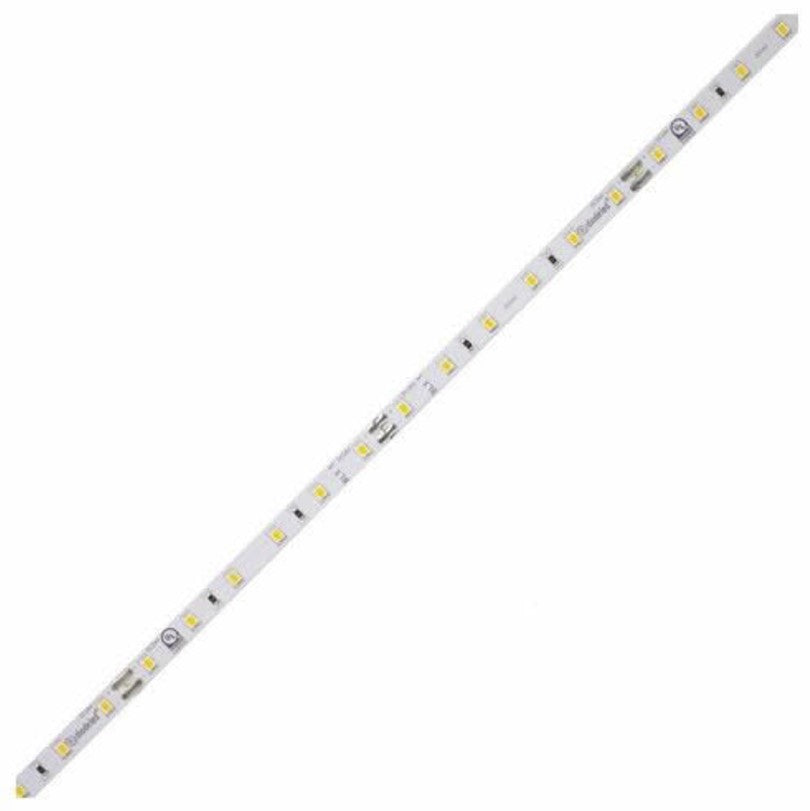

The Diode LED DI-24V-BLX1-42-100 LED tape light delivers 133 lm/ft at 4200K with 95+ CRI on a 24VDC platform. It runs on Diode LED's low-voltage tape format for interior task, accent, and display lighting.
Key Features
- 95+ CRI renders finishes and merchandise accurately under close light
- Draws 1.54 W/ft, so a run's total load and driver size are easy to size
- Cut points every 4 in terminate cleanly at cabinet lengths
- Single runs up to 70 ft reduce separate feeds on longer installs
Technical Specifications
| Brand | Diode LED |
|---|---|
| Model / SKU | DI-24V-BLX1-42-100 |
| Product Type | LED Tape Light |
| Voltage | 24VDC |
| Wattage | 1.54 W/ft |
| Lumens | 133 lm/ft |
| Color Temperature | 4200K |
| CRI | 95+ |
| LED Type | Epistar 2835 Guang Mau |
| Beam Angle | 120° |
| Cut Interval | 4 in |
| Max Run | 70 ft |
| Dimmable | Yes |
| Location Rating | Indoor / Damp Location Certificaton: UL Listed 2108 |
Applications
Common applications include:
- Under-cabinet and shelf task lighting
- Cove and millwork accent lighting
- Display and retail lighting
- Interior dry or damp-location linear lighting
Requires a 24VDC constant-voltage driver sized above the run wattage; keep this run to indoor / damp location certificaton: ul listed 2108 locations.
Lumera Electric carries the Diode LED DI-24V-BLX1-42-100 for high-CRI under-cabinet and display lighting.
