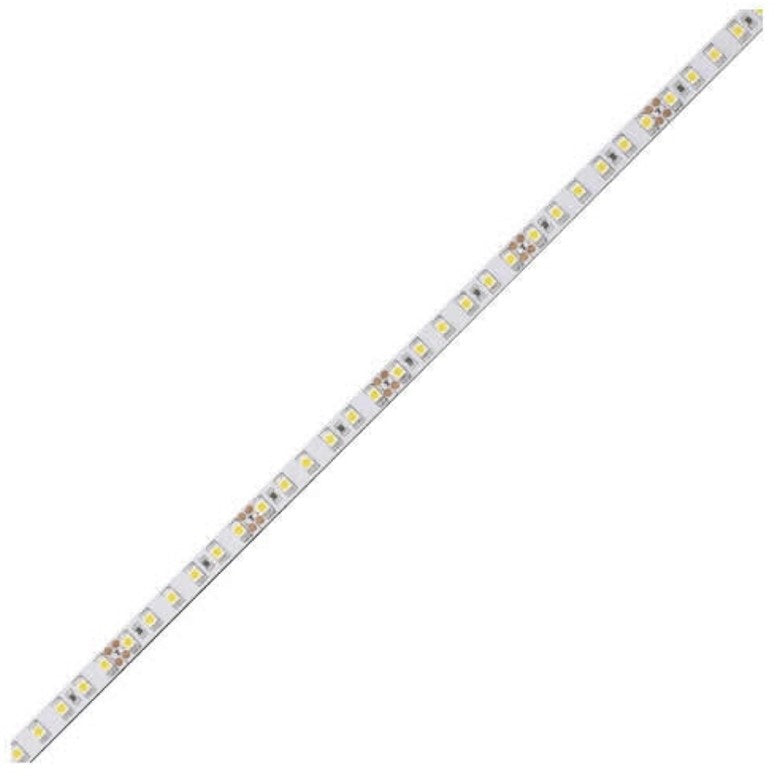

Diode LED BLAZE 200 LED Tape Light, 24V, 3500K, 100 ft. Spool (DI-24V-BLBSC2-35-100)
Diode LED BLAZE 200 LED Tape Light, 24V, 3500K, 100 ft. Spool (DI-24V-BLBSC2-35-100)
Regular price
$673.20
Regular price
Sale price
$673.20
SKU:DI-24V-BLBSC2-35-100
Quantity
Couldn't load pickup availability
The Diode LED DI-24V-BLBSC2-35-100 LED tape light delivers 249 lm/ft at 3500K with 90+ CRI on a 24 Volt platform. It runs on Diode LED's low-voltage tape format for interior task, accent, and display lighting.
Key Features
- 90+ CRI renders finishes and merchandise accurately under close light
- Draws 2.93 W/ft, so a run's total load and driver size are easy to size
- Cut points every 2 in terminate cleanly at cabinet lengths
- Single runs up to 40 ft reduce separate feeds on longer installs
Technical Specifications
| Brand | Diode LED |
|---|---|
| Model / SKU | DI-24V-BLBSC2-35-100 |
| Product Type | LED Tape Light |
| Voltage | 24 Volt |
| Wattage | 2.93 W/ft |
| Lumens | 249 lm/ft |
| Color Temperature | 3500K |
| CRI | 90+ |
| LED Type | 2835 Guang Mau Chip |
| Beam Angle | 120° |
| Cut Interval | 2 in |
| Max Run | 40 ft |
| Dimmable | Yes |
| Location Rating | Indoor / Damp Location |
| Certification | UL Listed 2108 |
Applications
Common applications include:
- Under-cabinet and shelf task lighting
- Cove and millwork accent lighting
- Display and retail lighting
- Interior dry or damp-location linear lighting
Requires a 24 Volt constant-voltage driver sized above the run wattage; keep this run to indoor / damp location locations.
Lumera Electric carries the Diode LED DI-24V-BLBSC2-35-100 for high-CRI under-cabinet and display lighting.
