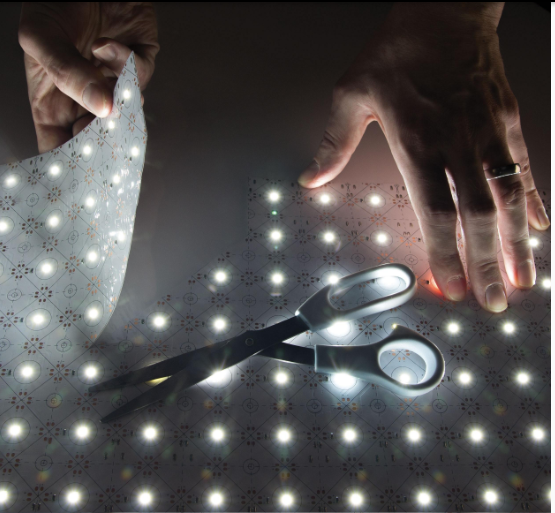

Diode LED PURALIGHT FLEX Sheet, 20x9 inch, 120° Beam Angle, 3000K, Indoor Version (DI-12V-PS30-120-2009)

The Diode LED DI-12V-PS30-120-2009 is a 0.31W per Square, 32W per Sheet 3000K led light module rated at 33 Lm/Square, 3480 Lm/Sheet for accent, task, and display lighting. It integrates into low-voltage LED systems for controlled, even illumination.

Key Features

• 80+ CRI renders finishes and merchandise accurately
• Produces 33 Lm/Square, 3480 Lm/Sheet while drawing 0.31W per Square, 32W per Sheet, so output and load are both defined
• 120° beam shapes the light for the target surface

Technical Specifications

Applications

Common applications include:

• Under-cabinet and shelf task lighting
• Display case and accent lighting
• Cabinet, cove, and millwork lighting

Confirm 12VDC voltage and a matching driver for the run, and verify mounting fit.

Lumera Electric stocks the Diode LED DI-12V-PS30-120-2009 for light module applications in low-voltage lighting.
