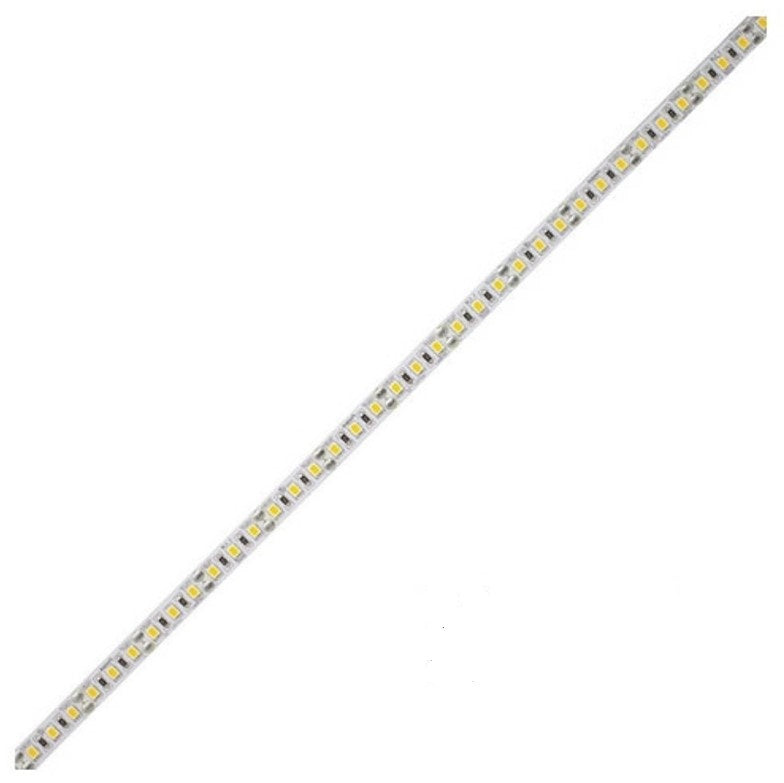

Diode LED BLAZE X 300 LED Tape Light, 12V, 5000K, 100 ft. Spool (DI-12V-BLX3-50-100)
Diode LED BLAZE X 300 LED Tape Light, 12V, 5000K, 100 ft. Spool (DI-12V-BLX3-50-100)
Regular price
$2,768.40
Regular price
Sale price
$2,768.40
SKU:DI-12V-BLX3-50-100
Quantity
Couldn't load pickup availability
The Diode LED DI-12V-BLX3-50-100 LED tape light delivers 358 lm/ft at 5000K with 95+ CRI on a 12VDC platform. It runs on Diode LED's low-voltage tape format for interior task, accent, and display lighting.
Key Features
- 95+ CRI renders finishes and merchandise accurately under close light
- Draws 4.3 W/ft, so a run's total load and driver size are easy to size
- Cut points every 1 in terminate cleanly at cabinet lengths
- Single runs up to 20 ft reduce separate feeds on longer installs
Technical Specifications
| Brand | Diode LED |
|---|---|
| Model / SKU | DI-12V-BLX3-50-100 |
| Product Type | LED Tape Light |
| Voltage | 12VDC |
| Wattage | 4.3 W/ft |
| Lumens | 358 lm/ft |
| Color Temperature | 5000K |
| CRI | 95+ |
| LED Type | Epistar 2835 Guang Mau |
| Beam Angle | 120° |
| Cut Interval | 1 in |
| Max Run | 20 ft |
| Dimmable | Width = 0.32", Height = 0.1" |
| Location Rating | Indoor / Damp Location |
| Certification | UL Listed 2108 |
Applications
Common applications include:
- Under-cabinet and shelf task lighting
- Cove and millwork accent lighting
- Display and retail lighting
- Interior dry or damp-location linear lighting
Requires a 12VDC constant-voltage driver sized above the run wattage; keep this run to indoor / damp location locations.
Lumera Electric carries the Diode LED DI-12V-BLX3-50-100 for high-CRI under-cabinet and display lighting.
