Diode LED BLAZE 100 LED Tape Light, 12V, 3500K, 400 ft. Spool (DI-12V-BLBSC1-35-400)
Diode LED BLAZE 100 LED Tape Light, 12V, 3500K, 400 ft. Spool (DI-12V-BLBSC1-35-400)
Regular price
$1,339.20
Regular price
Sale price
$1,339.20
SKU:DI-12V-BLBSC1-35-400
Quantity
Couldn't load pickup availability

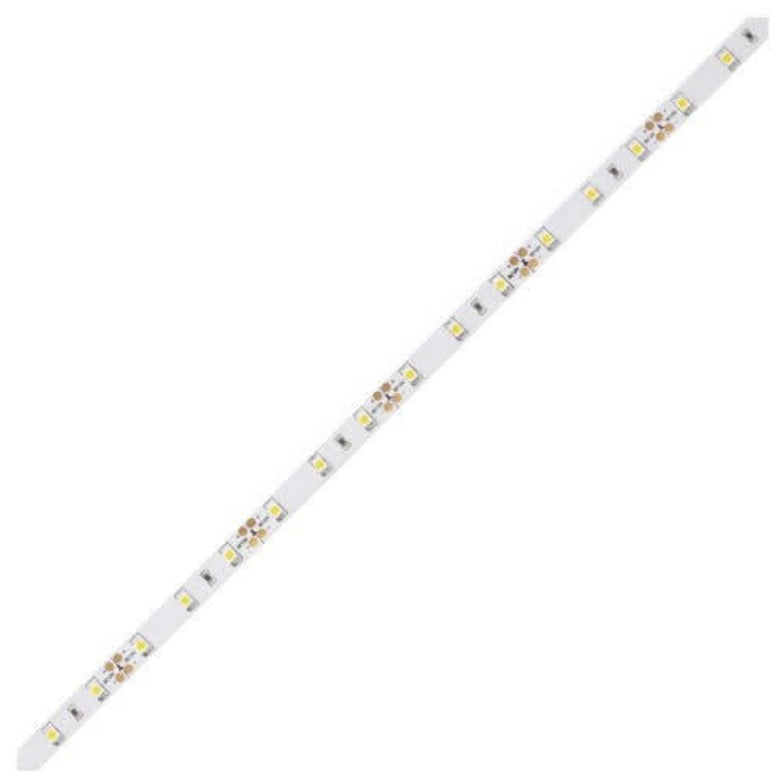

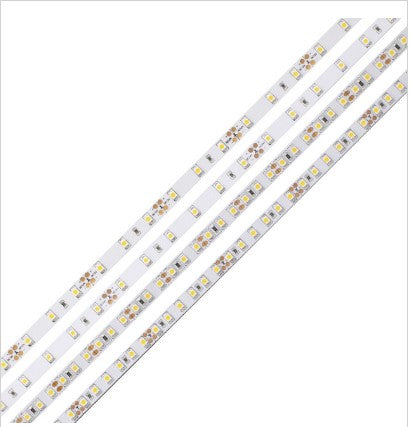

The Diode LED DI-12V-BLBSC1-35-400 LED tape light delivers 117 lm/ft at 3500K with 90+ CRI on a 12 Volt platform. It runs on Diode LED's low-voltage tape format for interior task, accent, and display lighting.
Key Features
- 90+ CRI renders finishes and merchandise accurately under close light
- Draws 1.43 W/ft, so a run's total load and driver size are easy to size
- Cut points every 2 in terminate cleanly at cabinet lengths
- Single runs up to 27 ft reduce separate feeds on longer installs
Technical Specifications
| Brand | Diode LED |
|---|---|
| Model / SKU | DI-12V-BLBSC1-35-400 |
| Product Type | LED Tape Light |
| Voltage | 12 Volt |
| Wattage | 1.43 W/ft |
| Lumens | 117 lm/ft |
| Color Temperature | 3500K |
| CRI | 90+ |
| LED Type | 2835 Guang Mau Chip |
| Beam Angle | 120° |
| Cut Interval | 2 in |
| Max Run | 27 ft |
| Dimmable | Yes |
| Location Rating | Indoor / Damp Location |
| Certification | UL Listed 2108 |
Applications
Common applications include:
- Under-cabinet and shelf task lighting
- Cove and millwork accent lighting
- Display and retail lighting
- Interior dry or damp-location linear lighting
Requires a 12 Volt constant-voltage driver sized above the run wattage; keep this run to indoor / damp location locations.
Lumera Electric carries the Diode LED DI-12V-BLBSC1-35-400 for high-CRI under-cabinet and display lighting.
