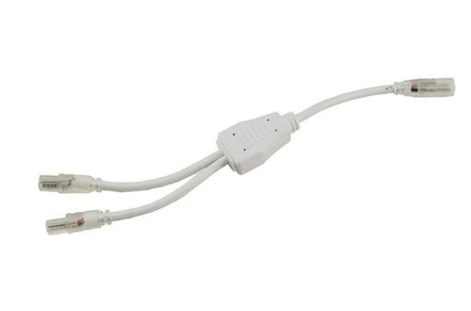

• Diode LED DI-10MM-WLSP2 LED Power Splitter
1 1

Diode LED

Diode LED Wet Location Splitter Plug (10.5mm Plugs): 2-Way, White PVC 2464 (DI-10MM-WLSP2)

Diode LED Wet Location Splitter Plug (10.5mm Plugs): 2-Way, White PVC 2464 (DI-10MM-WLSP2)

$9.45
$9.45
Sale Sold out

DI-10MM-WLSP2
Request a Quote
Download Spec Sheet (PDF)

The Diode LED DI-10MM-WLSP2 is a wet-location led power splitter for extending or distributing power in low-voltage LED runs. It connects LED tape, fixtures, and drivers without custom wiring.

Key Features

  • Splits one feed into 2 outputs, powering several runs from a single driver
  • Wet-location rated for damp and outdoor connections

Technical Specifications

Brand Diode LED
Model / SKU DI-10MM-WLSP2
Product Type LED Power Splitter
Voltage 300VAC Wire Type: AWM 758 UK 2464 copper stranded 20/2 AWG Wire Diameter: 0.22" Jacket: Extruded PVC Flammability: VW-1, FT2 Max Temp: 176°F (80°C) Certifications: UL R/C E339137 and/or E301305 About Diode LED: Diode LED is America's largest low-voltage linear lighting solutions provider and is preferred by lighting designers, architects, product specifiers, electricians, and general contractors
Dimensions Length = 9.25", Width =0.8", Height =.63" Compatible with: FLUID VIEW Wet Location LED Strip Light and BLAZE Wet Location LED Strip Light
Location Rating Wet Location

Applications

Common applications include:

  • Extending LED tape and fixture runs
  • Distributing power from a driver to multiple runs
  • Wet and damp-location LED connections

Confirm connector type and polarity match your tape, driver, and fixtures; suited to wet and damp locations.

Lumera Electric supplies the Diode LED DI-10MM-WLSP2 for clean low-voltage power routing in LED installations.
