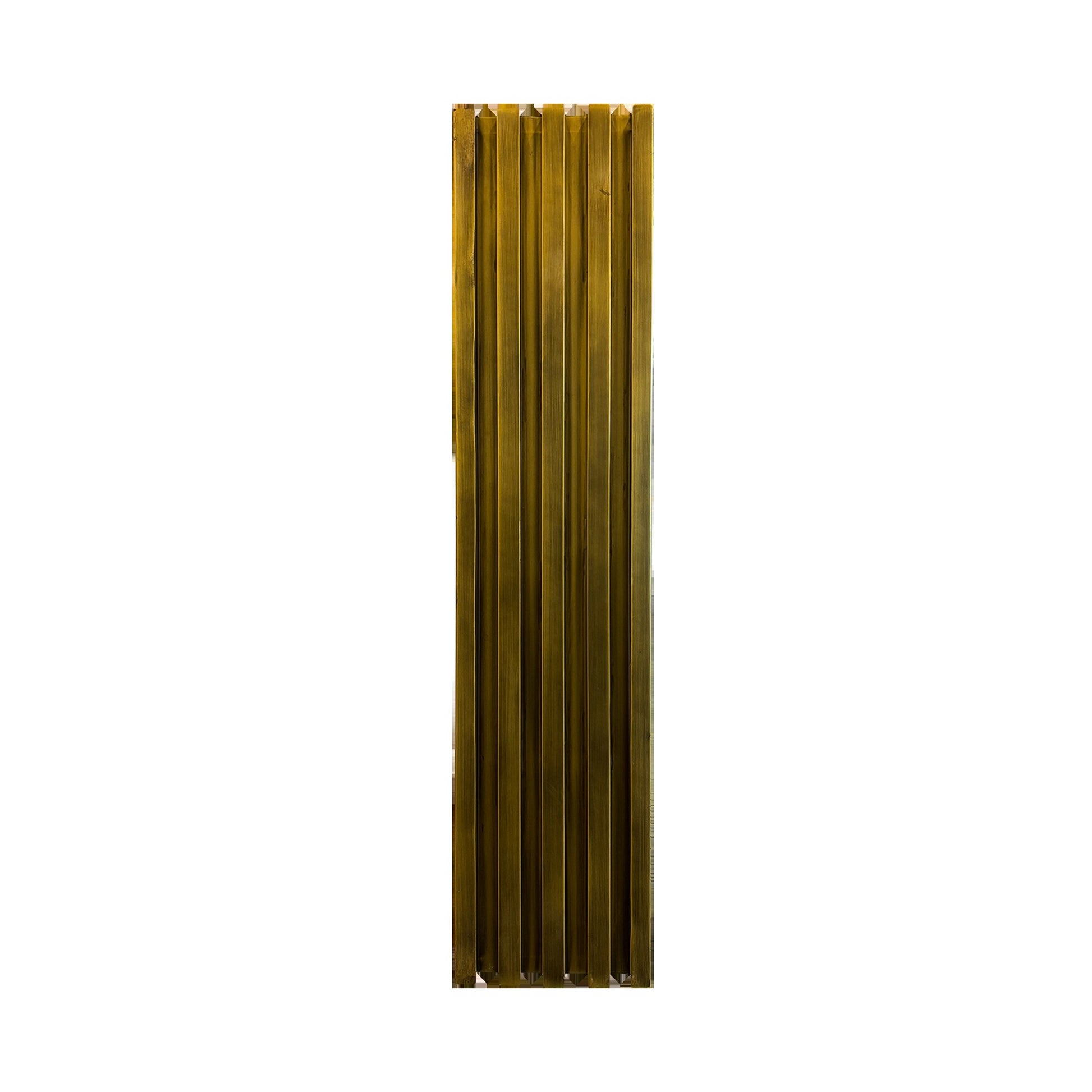

Alteck Corithian 32 in. Brass LED Outdoor Wall Sconce, Selectable CCT AW0161-5CCT-W-PAB
Alteck Corithian 32 in. Brass LED Outdoor Wall Sconce, Selectable CCT AW0161-5CCT-W-PAB
Regular price
$799.00
Regular price
Sale price
$799.00
SKU:AW0161-5CCT-W-PAB
Quantity
Couldn't load pickup availability
The Alteck Corithian AW0161 outdoor LED wall sconce delivers 565 lumens of selectable 2700K through 5000K light from a 20-watt integrated LED, designed for exterior walls, entries, and facades. The fixture carries a Painted Antique Brass finish on an aluminum body and installs as a wall mount.
Key Features
- Field-selectable color temperature lets one fixture cover 2700K through 5000K without restocking
- Integrated LED rated for 54,000 hours, reducing exterior maintenance and relamping
- Triac dimming works with standard forward-phase wall dimmers
- IP65-rated build is suited to exterior wet-location exposure
- ADA-compliant low profile for code-restricted walls and walkways
- Backed by a 3-year finish and 5-year LED warranty
Technical Specifications
| Brand | Alteck |
|---|---|
| Model / SKU | AW0161-5CCT-W-PAB |
| Collection | Corithian |
| Product Type | Outdoor LED Wall Sconce |
| LED Wattage | 20 W |
| Lumens | 565 lm |
| Color Temperature | Selectable 2700K through 5000K (5-CCT) |
| CRI | 90 |
| Voltage | 120-277V |
| Dimming | Triac (forward phase) |
| Mounting Type | Wall mount |
| Width | 7 in |
| Height | 32 in |
| Backplate | 4.5 W x 29.875 L x 1.125 E |
| Material | Aluminum |
| Finish | Painted Antique Brass |
| Location Rating | Wet Location |
| IP Rating | IP65 |
| Title 24 | Exterior use only; requires a Title 24-compliant control device |
| ADA Compliant | Yes |
| Rated Life | 54,000 hours |
| Safety Listing | ETL Listed |
| Finish Warranty | 3 Year |
| LED Warranty | 5 year |
| Country of Origin | China |
Applications
Common applications include:
- Exterior entry and facade wall lighting
- Walkways and building perimeters
- Residential and commercial exteriors
- Replacement of dated exterior sconces
Compatibility and Installation Notes
- Confirm the mounting location matches the fixture's wet location and IP65 rating before installation.
- Pair with a compatible Triac (forward-phase) dimmer and verify the dimmer load range against the fixture wattage.
- Wired for 120-277V line-voltage operation on a standard exterior junction box.
- For Title 24 exterior projects, install with a Title 24-compliant control device.
Lumera Electric stocks the Alteck Corithian wall sconce for exterior walls and entries where a selectable-CCT outdoor fixture is specified.
