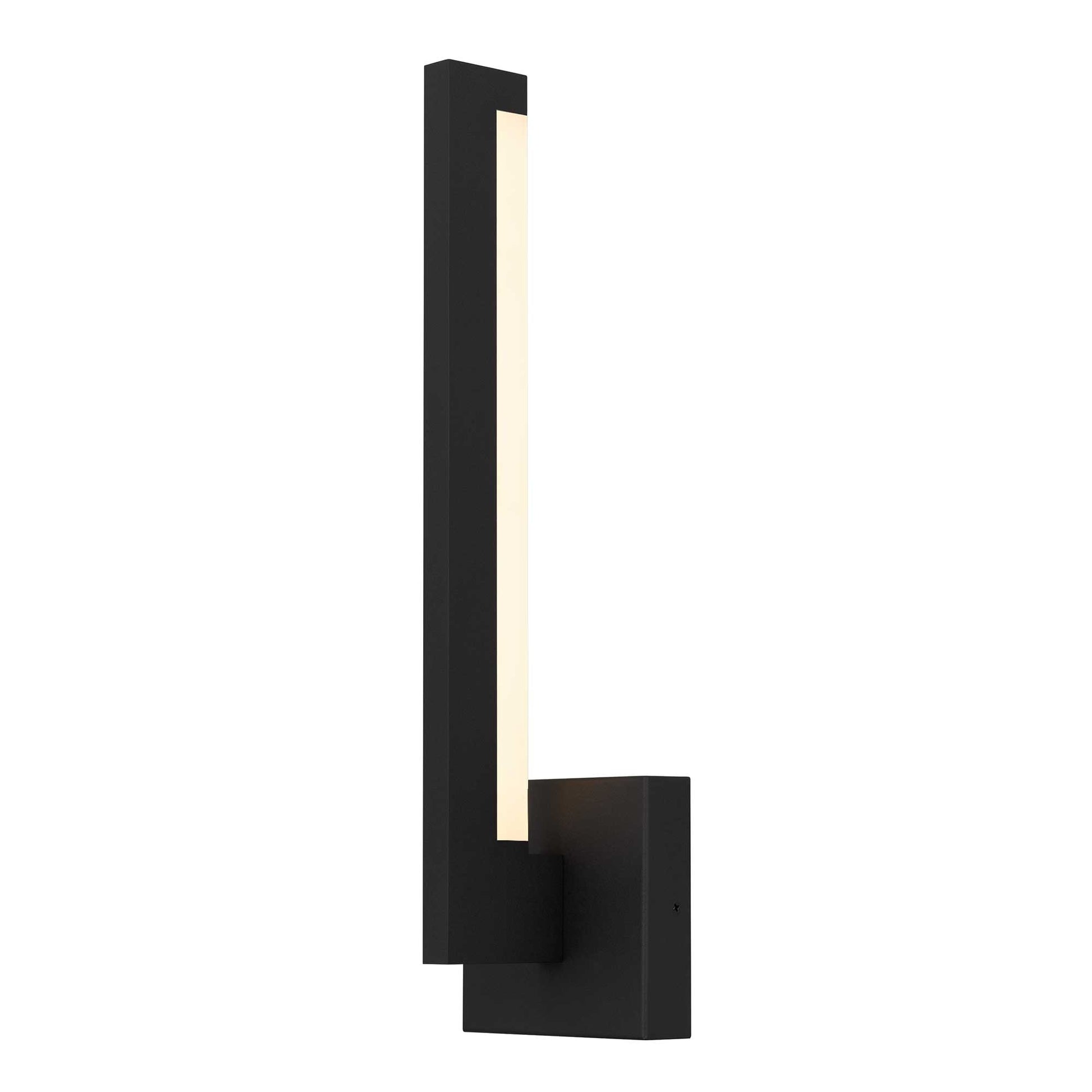

Alteck Lana 18 in. Black LED Outdoor Wall Sconce, Selectable CCT AW0040-3CCT-W-BK
Alteck Lana 18 in. Black LED Outdoor Wall Sconce, Selectable CCT AW0040-3CCT-W-BK
Regular price
$212.00
Regular price
Sale price
$212.00
SKU:AW0040-3CCT-W-BK
Quantity
Couldn't load pickup availability
The Alteck Lana AW0040 outdoor LED wall sconce delivers 847 lumens of selectable 3000K, 4000K, or 5000K light from a 13-watt integrated LED, designed for exterior walls, entries, and facades. The fixture carries a Sand Black finish on an aluminum body and installs as a wall mount.
Key Features
- Field-selectable color temperature lets one fixture cover 3000K, 4000K, or 5000K without restocking
- Integrated LED rated for 54,000 hours, reducing exterior maintenance and relamping
- Triac dimming works with standard forward-phase wall dimmers
- IP44-rated build is suited to exterior wet-location exposure
- ADA-compliant low profile for code-restricted walls and walkways
- Frosted Acrylic spreads even, diffuse illumination
- Backed by a 3-year finish and 5-year LED warranty
Technical Specifications
| Brand | Alteck |
|---|---|
| Model / SKU | AW0040-3CCT-W-BK |
| Collection | Lana |
| Product Type | Outdoor LED Wall Sconce |
| LED Wattage | 13 W |
| Lumens | 847 lm |
| Color Temperature | Selectable 3000K, 4000K, or 5000K (3-CCT) |
| CRI | 90 |
| Voltage | 120-277V |
| Dimming | Triac (forward phase) |
| Mounting Type | Wall mount |
| Width | 5 in |
| Height | 18 in |
| Backplate | 5.125 L x 4.75 W x 1.25 E |
| Material | Aluminum |
| Finish | Sand Black |
| Diffuser | Frosted Acrylic |
| Location Rating | Wet Location |
| IP Rating | IP44 |
| ADA Compliant | Yes |
| Rated Life | 54,000 hours |
| Safety Listing | ETL Listed |
| Finish Warranty | 3 Year |
| LED Warranty | 5 year |
| Country of Origin | China |
Applications
Common applications include:
- Exterior entry and facade wall lighting
- Walkways and building perimeters
- Residential and commercial exteriors
- Replacement of dated exterior sconces
Compatibility and Installation Notes
- Confirm the mounting location matches the fixture's wet location and IP44 rating before installation.
- Pair with a compatible Triac (forward-phase) dimmer and verify the dimmer load range against the fixture wattage.
- Wired for 120-277V line-voltage operation on a standard exterior junction box.
Lumera Electric stocks the Alteck Lana wall sconce for exterior walls and entries where a selectable-CCT outdoor fixture is specified.
