Alteck New Wave 44 in. Black LED Outdoor Pendant, Selectable CCT AP0071-5CCT-W-BK
Alteck New Wave 44 in. Black LED Outdoor Pendant, Selectable CCT AP0071-5CCT-W-BK
Regular price
$1,936.00
Regular price
Sale price
$1,936.00
SKU:AP0071-5CCT-W-BK
Quantity
Couldn't load pickup availability

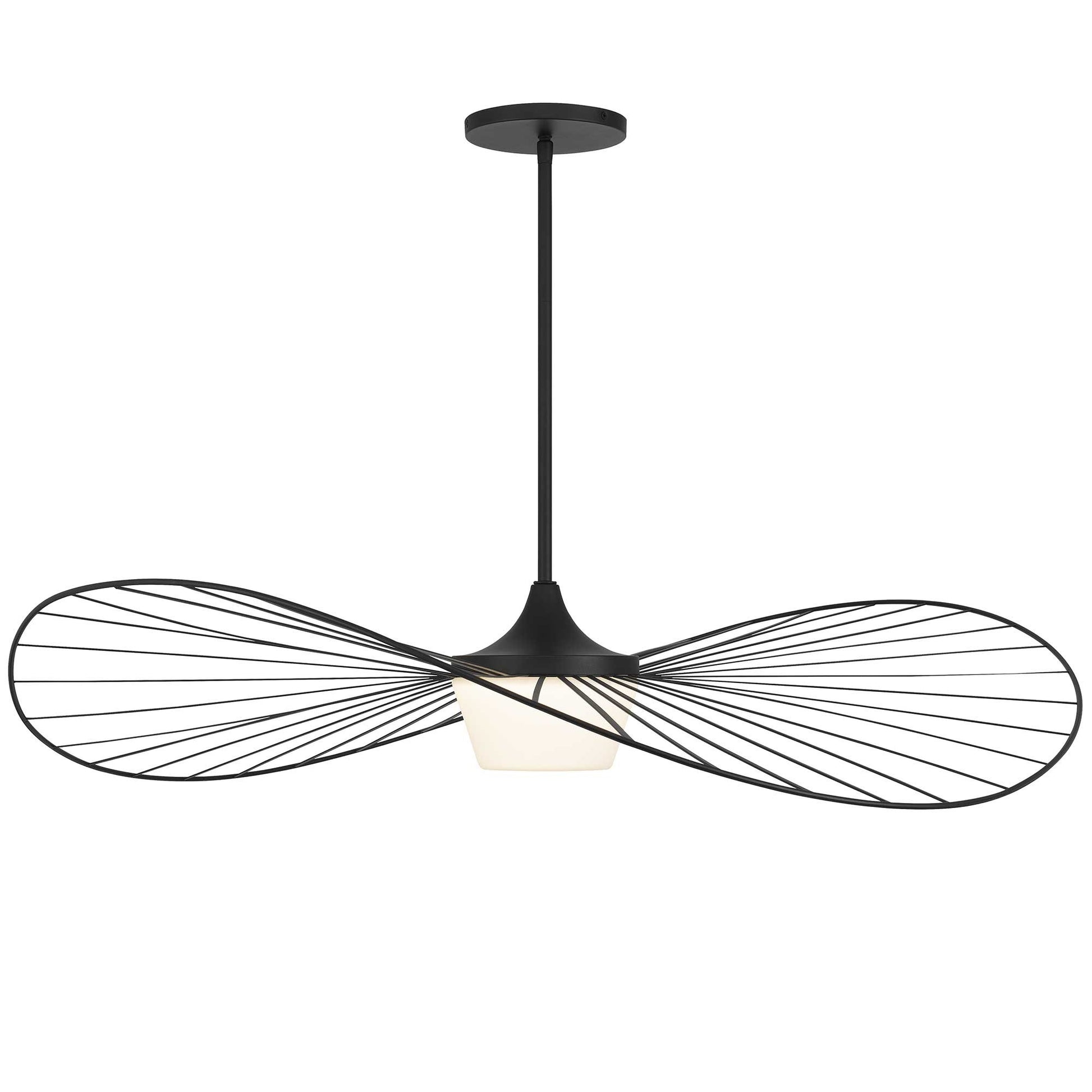

The Alteck New Wave AP0071 outdoor LED pendant delivers 1089 lumens of selectable 2700K through 5000K light from a 20-watt integrated LED, designed for covered patios, porches, and exterior entry ceilings. The fixture carries a Sand Black finish on a steel body and installs as a suspended pendant.
Key Features
- Field-selectable color temperature lets one fixture cover 2700K through 5000K without restocking
- Integrated LED rated for 54,000 hours, reducing exterior maintenance and relamping
- Triac dimming works with standard forward-phase wall dimmers
- IP44-rated build is suited to exterior wet-location exposure
- Etched White Opal Glass spreads even, diffuse illumination
- Backed by a 3-year finish and 5-year LED warranty
Technical Specifications
| Brand | Alteck |
|---|---|
| Model / SKU | AP0071-5CCT-W-BK |
| Collection | New Wave |
| Product Type | Outdoor LED Pendant |
| LED Wattage | 20 W |
| Lumens | 1089 lm |
| Color Temperature | Selectable 2700K through 5000K (5-CCT) |
| CRI | 80 |
| Voltage | 120V |
| Dimming | Triac (forward phase) |
| Mounting Type | Suspended pendant |
| Fixture Width | 44 in |
| Fixture Height | 8 in |
| Overall Height | 52 in (max drop) |
| Material | Steel |
| Finish | Sand Black |
| Diffuser | Etched White Opal Glass |
| Location Rating | Wet Location |
| IP Rating | IP44 |
| Title 24 | Exterior use only; requires a Title 24-compliant control device |
| Rated Life | 54,000 hours |
| Safety Listing | ETL Listed |
| Finish Warranty | 3 Year |
| LED Warranty | 5 year |
| Country of Origin | China |
Applications
Common applications include:
- Covered patio and porch ceilings
- Exterior entryways and breezeways
- Outdoor dining and seating areas
- Light-commercial exterior canopies
Compatibility and Installation Notes
- Confirm the mounting location matches the fixture's wet location and IP44 rating before installation.
- Pair with a compatible Triac (forward-phase) dimmer and verify the dimmer load range against the fixture wattage.
- Wired for 120V line-voltage operation on a standard exterior junction box.
- For Title 24 exterior projects, install with a Title 24-compliant control device.
Lumera Electric stocks the Alteck New Wave pendant for exterior covered ceilings where a selectable-CCT outdoor fixture is specified.
