Working Through the EnVision Range Line by Line
EnVision organizes its catalog into named lines, and the part numbers follow those lines, so once you know which line covers your application, the 1,497 SKUs collapse into a short list. The sections below walk the range in the order most jobs meet it: recessed first, then ceiling grid, then site and outdoor, then lamps.
Which EnVision Line You Need
Recessed and Canless Downlights
The recessed side is the deepest. It holds 129 recessed downlight kits, 67 J-box and gimbal downlights, 63 disk lights, and 86 trims, and a large share of it sits in the retrofit and canless downlight collection.
The naming splits by install method: RM marks remodel cans, NC marks new construction, FR adds a fire rating, and ICAT means insulation contact air tight. DLJBX numbers are the canless J-box downlights from 1 inch to 6 inch, with round, square, regressed, and gimbal trims, and the C4, C6, and C8 cans plus rough-in plates back the new construction downlight range.
Panels, Troffers, and Linear
The ceiling grid side holds 68 flat panels with 1x4, 2x2, and 2x4 surface mount kits and Backlit-Line trims, filed in the LED panel collection, plus eight troffers.
Linear coverage adds 37 strip lights, 15 wrap lights, and 22 vapor tight fixtures, the sealed linears for washdown and wet interiors, with the strips listed in the strip light collection.
High Bay, Track, and Under Cabinet
Open ceilings get 38 high bays with the HB03R remote for the HB-Line, filed under high bay lights. Interior accent work gets 42 ARCY-Line track products, ATH heads at 10W to 30W with 24 and 60 degree optics, plus 17 cylinders. Under cabinet runs 56 items with a matching ET low voltage transformer.
Wall Packs, Area, and Site Lighting

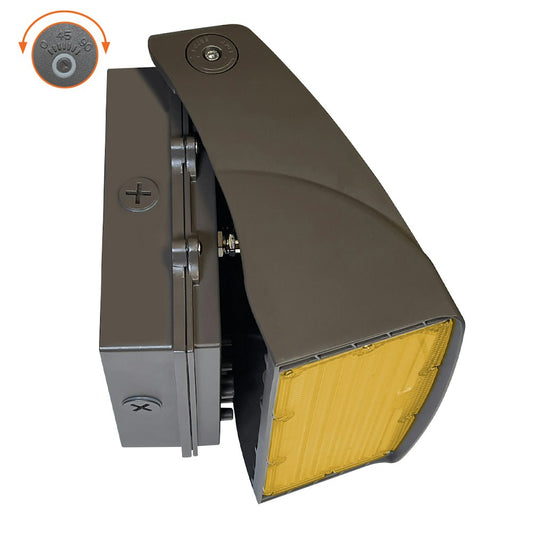

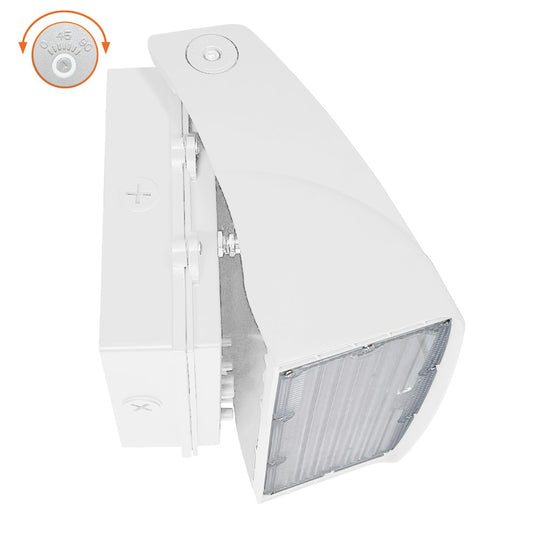

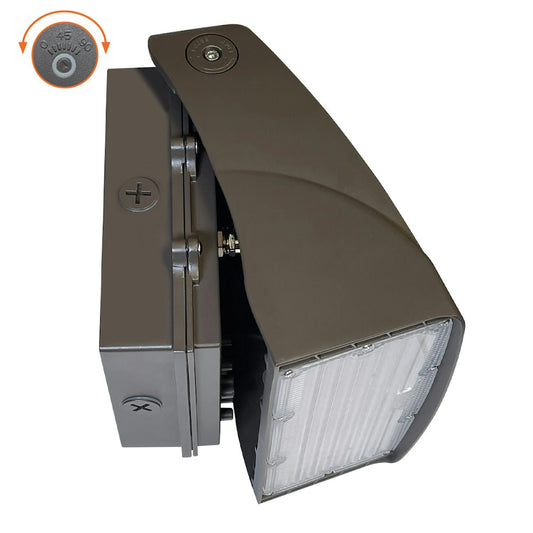

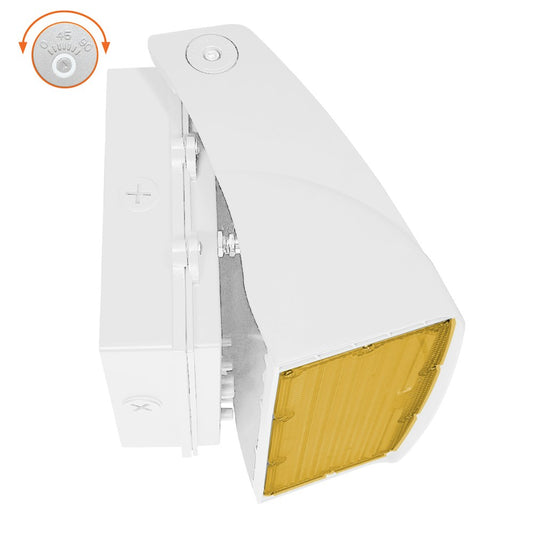

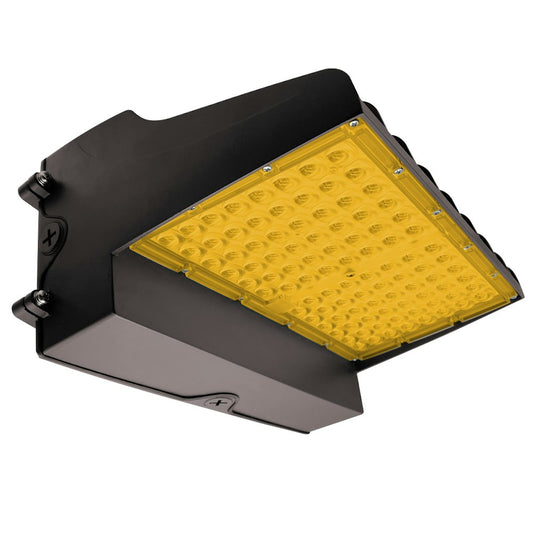

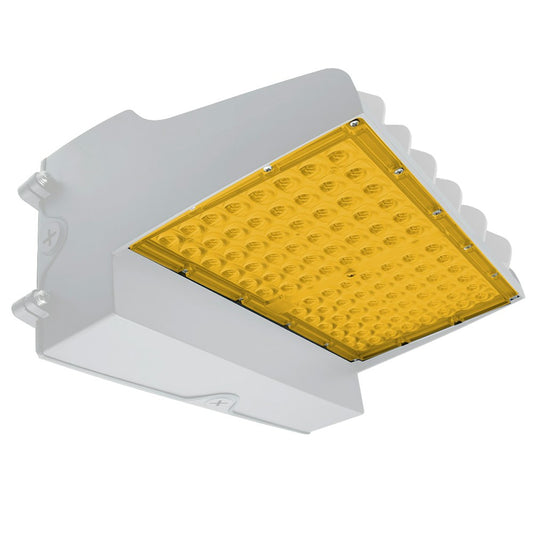

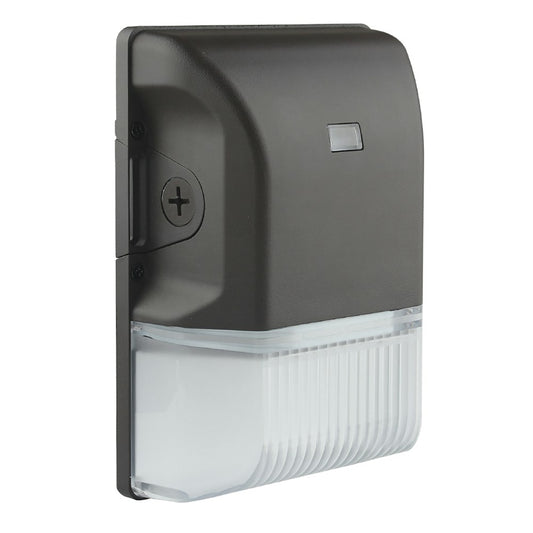

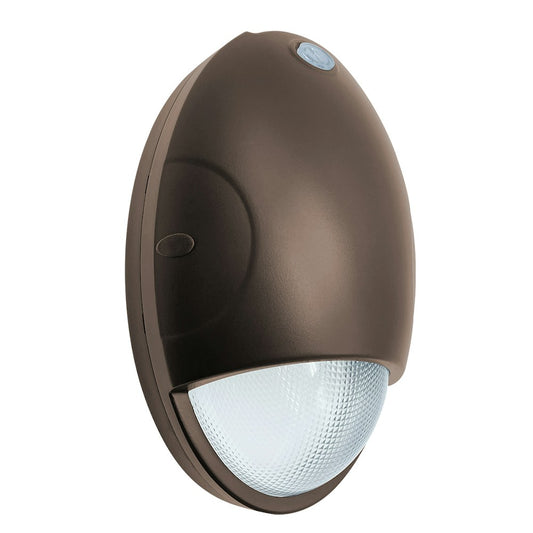

Wall packs are the single largest family at 126 items, from mini and adjustable models through full cutoff units, though only 13 of them currently reach the wall pack collection.
Area lighting adds 110 items built around the ARL3 system, with heads grouped as 3P100 through 5P450, where the trailing number is the top wattage. Slip fitters, straight arms, trunnions, yokes, and Type II, IV, and V optic lenses, the codes that set the distribution pattern, are separate line items. Flood lights add 87 items, 30 canopy lights sit in the canopy collection, and bollards and sports floods round out the site range.
Landscape, Step, and Emergency
A 12V landscape line covers 26 items, including brass BR fixtures in MBL and ORB finish codes. IGL in-ground lights offer covered, flat, half moon, and ribbed lens choices, and CV Class 2 drivers power the runs in 12V and 24V. Steps add 25 items and emergency and backup equipment adds 38 more.
Reading EnVision Part Numbers
Numbers stack left to right: line, size or wattage, then options. 5CCT is the five-position color temperature switch, SM means surface mount, 0/10V marks the dimming version, and WH, BL, BZ, GRY, BLK, BN, and CH are finish codes. A model such as ECV-WFR-6-12W-5CCT reads as ECO-Line wafer, 6 inch, 12W, selectable CCT, and DLJBX-2-TRIM-BZ-S reads as 2 inch J-box downlight trim, bronze, smooth.
EnVision Across the Lumera Categories
Lamps are a quiet strength: 117 LED bulbs and 23 tubes, 140 items in total, file under bulbs and lamps.
The 23 tubes also cross-list in the tube lamp collection for ballast bypass and retrofit work.
Three routing gaps matter. The area light and flood light categories currently contain no EnVision items despite 110 area and 87 flood products. The emergency category shows none of the 38 emergency units, and only two of the 26 landscape items reach the landscape category. Until those assignments are corrected, this brand page and part number search are the working paths to those families.
Ordering Notes for EnVision Gear
Three habits prevent short shipments. Mounts are separate SKUs, so an ARL3 head needs its slip fitter, arm, or trunnion ordered alongside, and the wall bracket itself requires the straight arm. Trims and modules pair by series, so match a CADM trim to a CADM module and a CMD trim to a CMD module rather than mixing prefixes. Pack counts sit in the title, such as mounting straps sold in 100 packs, so the listed price covers the pack.
Checks Before an EnVision Order
Confirm the wattage and CCT settings cover the photometric target, since selectable fixtures ship at one of several outputs. Confirm input voltage and the dimming version, because standard and 0-10V models are separate SKUs. On recessed work, confirm IC contact, airtight, and fire ratings against the ceiling assembly. On site lighting, confirm the distribution type and the mount. Certifications vary by model, so read the listing on each product page rather than assuming one rating across the brand.
EnVision Line and Spec Questions
What does 5CCT mean on EnVision fixtures?
It is EnVision's five-position color temperature switch. One fixture can be set to any of five white tones at installation, which is why one SKU replaces five fixed models. The exact Kelvin steps vary by product, so read them in the title before matching to existing fixtures on the same ceiling.
What is the difference between RM and NC downlights?
RM models are remodel versions that install into an existing ceiling from below, while NC models are new construction versions that mount to framing before drywall. FR versions add a fire rating for rated assemblies. The light module is often the same; the housing and install path differ.
Do ARL3 area lights include the mount?
No. Heads and mounts are separate line items, and the titles say which mount each accessory fits. Slip fitters suit round poles, straight arms suit square poles and walls, trunnions suit surface and yoke installs, and the wall bracket requires the straight arm to complete the assembly.
Which trims fit which EnVision downlight?
Match the series prefix. CADM trims fit CADM modules, CMD trims fit CMD modules, and DLJBX trims follow the size and style in their own numbers. A trim from one series will not seat correctly on another, even at the same aperture, so order both halves from the same prefix.
