Sizing a Fan Control by Amps, Not by Speed Count
Almost every page selling fan controls sorts them by speed count and finish. That is the least useful way to choose one. What decides whether a control works, runs quietly, and survives is its current rating against the motor, and what the wiring at the ceiling box will physically allow. Speed count is the last decision, not the first.
Why a Light Dimmer Damages a Fan Motor
Most sites say not to put a lamp dimmer on a ceiling fan and stop there. The reason is worth understanding, because it also explains why fan controls behave the way they do.
An induction motor's speed is tied to the frequency of the supply, not only its voltage. Drop the voltage alone and the motor keeps trying to turn at the same speed, the opposing voltage it generates falls, and the energy that no longer cancels out turns into heat inside the windings. On top of that, a leading-edge lamp dimmer chops the front off each half cycle, and the resulting sharp inrush is what produces the hum people hear from a fan on the wrong control. The third problem is the quiet one: a lamp dimmer has no minimum output floor, so it will happily feed the motor a voltage too low to actually start it, leaving a stalled winding drawing current and cooking itself.
A fan control is built around all three of those problems. It is rated for an inductive load, it limits how far down it will take the motor, and it is designed to keep hum within tolerance. Lamp dimming belongs on a separate device, and Lumera's LED dimmers collection covers that side of the circuit.
Start With the Current Rating
This is the number nobody explains, and it is why this collection spans such a wide range. Fan controls are rated in amps because they switch a motor load, not in watts the way a lighting dimmer is.
- 1.5 amp: sized for a single residential ceiling fan, which covers the great majority of installations
- 6 amp: headroom for a larger motor, a heavy-duty fan, or more than one fan on the same control
- 12 amp: built for substantial or multiple motor loads, including commercial ventilation fans rather than ceiling fans alone
Total the full load amps of every motor on the circuit, taken from each fan's own nameplate rather than estimated, and choose a control rated above that figure. Undersizing here does not produce a gradual decline. It produces a control that overheats and fails, often after months of looking fine.
Stepped Speeds or Full-Range Adjustment
A stepped control gives a fixed number of preset speeds, usually three or four, and each step is a defined operating point the motor was designed to sit at. A full-range control sweeps continuously between a minimum and a maximum. Continuous adjustment sounds better and is not always the right answer, because a motor held at an arbitrary intermediate speed is more likely to hum than one sitting on a designed step.
Whichever type you choose, the control has a minimum speed setting and it exists for a reason. Set it too low during commissioning and the fan will struggle to start from rest, which is the same stalled condition that damages motors. If a fan hums at its lowest setting but runs cleanly higher up, raising that minimum is usually the fix rather than replacing the control.
What the Wiring at the Ceiling Box Will Actually Allow
This is where most retrofit projects come apart, and almost no product page mentions it. A wall device that controls fan speed and light level separately needs separate conductors running to the fan and to the light. If the ceiling box has only one switched conductor feeding the whole fixture, which is normal where a fan replaced a plain ceiling light, no wall control can separate the two functions. There is nothing to separate them with.
The fix is not a bigger control. It is a receiver mounted in the fan canopy that splits fan and light on the fixture side, paired with a handheld or wall-mounted transmitter. Lumera's wireless remotes collection covers those transmitters and companion devices.
Settle this before ordering. Pull the existing switch and count the conductors, and if there is a single switch leg with no second conductor to the light, plan for a canopy receiver from the start rather than discovering it with the fan already hanging.
AC Motor or DC Motor
A conventional AC ceiling fan is what wall speed controls are built for. A DC motor fan is a different machine: it runs from an onboard driver that converts the incoming supply, and its speed is set by that driver responding to its own paired remote. A wall speed control placed upstream will not vary the speed, and reducing the voltage feeding the driver can damage it.
Manufacturer instructions for these fans are usually explicit that no other control system may be used except a plain on and off wall switch. If the fan is DC, the wall device should be a standard switch and nothing more. Confirm the motor type in the fan's own documentation before ordering any control, because the two look identical once installed.

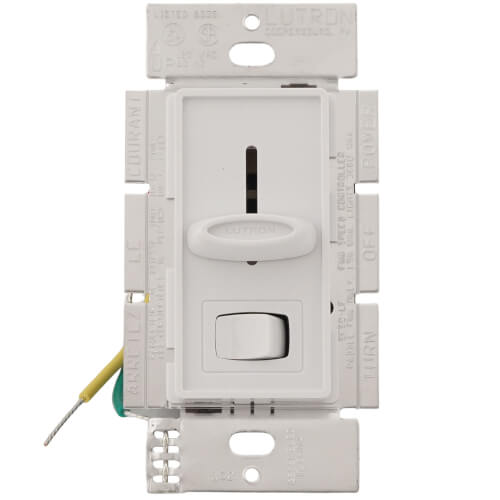

Fan Only, or Fan and Light on One Device
A fan speed control adjusts the motor and nothing else, which suits a fan with no light or one whose light is switched separately. A combination fan and light control puts both on a single wall plate, with the fan side on speed steps and the light side dimming. It saves a gang and keeps both functions in one place, and it only works where the wiring described above supports it.
Where a room needs the fan on one device and the light on another, the two sit in a shared box under a shared cover, and Lumera's wall plates collection covers the multi-gang plates for that.
Ventilation Fan Timers and Humidity Sensors
Part of this collection controls exhaust fans rather than ceiling fans, and the logic is different. A countdown timer runs the fan for a set interval after a press and then stops, which matches how a bathroom is actually used, since most of the moisture clears after the person has left the room. A humidity-sensing switch removes the human element entirely by running the fan while the air is still damp and stopping once it dries out.
The second one is worth the extra cost in most bathrooms, because the common failure in ventilation is not the fan. It is that nobody turns it on, or turns it off too early. Lumera's bathroom and exhaust fans collection covers the units these controls run.
Where the requirement is a fixed daily schedule rather than a countdown after a press, that is a different device again, and the timers and time switches collection covers those.
More Than One Fan, and Ganged Devices
Running several fans from one control is allowed within the control's rating, and two things come with it. Motor hum tends to be more noticeable with multiple motors on one control than with a single fan, because small differences between them show up as an audible beat. And ganging several devices side by side in one box normally means removing the side heat fins, which lowers each device's rated capacity below its printed figure. The manufacturer publishes that derated value, and on a fully loaded multi-gang box it is not optional reading.
Wiring and Fan Support
Fan controls connect to building wiring and replace an existing device in a box that may have been wired for something else, so a licensed electrician should handle the swap and confirm the neutral, the conductor count, and the grounding arrangement. A ceiling fan itself also has to hang from a box listed for fan support rather than a standard fixture box, which is worth checking at the same time if the fan is new or being relocated.
Fan Speed Control FAQs
Can I use a regular dimmer switch on a ceiling fan?
No. An induction motor's speed depends on supply frequency as well as voltage, so reducing voltage alone turns the surplus energy into heat in the windings. A lamp dimmer also chops the waveform in a way that makes the motor hum, and it has no minimum output floor, so it can feed the motor too little to start and leave it stalled.
What amp rating fan control do I need?
Add up the full load amps from the nameplate of every motor on the circuit and pick a control rated above that. A single residential ceiling fan is comfortable on a 1.5 amp control. Larger motors, multiple fans, or commercial ventilation fans move you into the 6 and 12 amp models.
Why does my ceiling fan hum on its lowest speed?
Usually the minimum speed setting on the control is set too low for that motor, and raising it is normally the fix. Hum can also come from using a lamp dimmer instead of a fan-rated control, or from several motors on one control interacting with each other.
Will a wall control work with my DC motor fan?
No. A DC fan sets its speed through an onboard driver paired to its own remote, so a wall speed control upstream will not vary it and can damage the driver. Manufacturer instructions for these fans generally allow only a plain on and off wall switch. Check the motor type before ordering anything.
Can one wall control run both the fan and its light separately?
Only if separate conductors run from the switch box to the fan and to the light. Where a fan replaced a plain ceiling light there is often just one switched conductor, and no wall device can split the two. In that case the answer is a receiver in the fan canopy paired with a remote or wall transmitter.
Do fan controls lose capacity when ganged together?
Yes. Mounting several devices side by side normally requires removing the side heat fins, and that reduces each one's rated capacity below the printed figure. The manufacturer publishes the derated value, and a fully loaded multi-gang box that ignores it will run hot.
