What Is Heat Trace Cable & How It Works
Heat trace cable, also called pipe heat tape or pipe tracing cable, is an electric heating cable run along the length of a pipe to keep it above freezing or to maintain a process temperature. This guide covers pipe heat trace for freeze protection specifically; roof and gutter de-icing uses related self-regulating cable technology but different sizing, layout, and code considerations covered in a separate guide. Every heat trace circuit needs GFCI protection and a correctly sized circuit breaker, and the connection point at the power end typically terminates in an accessible junction box. This guide covers how heat trace cable works, the two main types, and how to size and install a system correctly.
How Heat Trace Cable Works

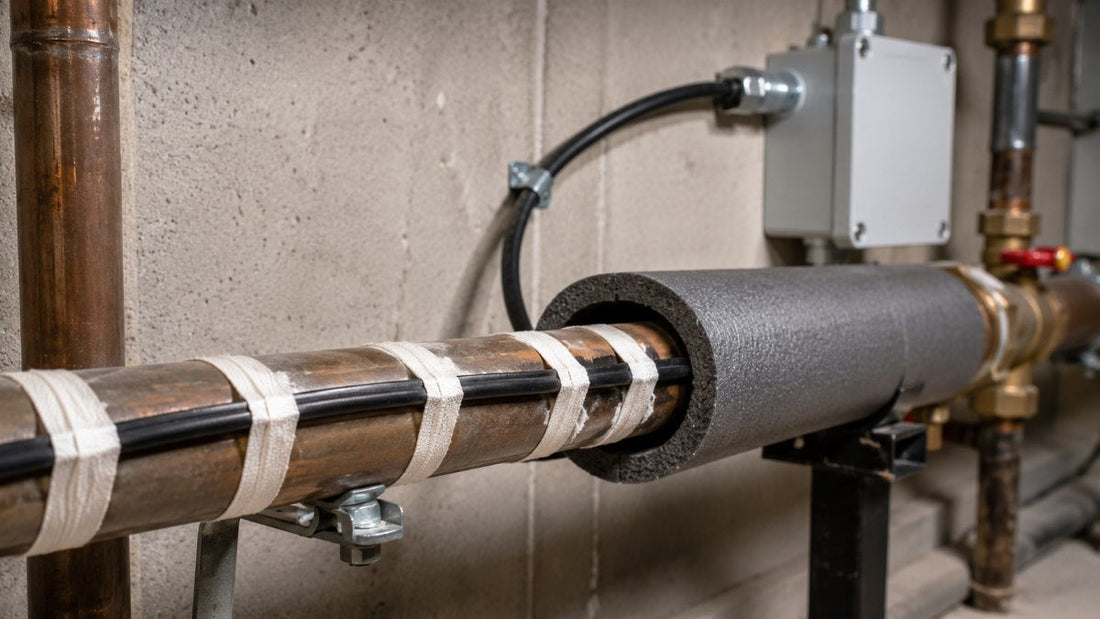

Heat trace cable runs along the outside of a pipe, usually secured with heat-resistant tape, and generates heat that transfers into the pipe wall to keep the water inside it from freezing or to hold a process fluid at a target temperature. The cable is meant to be used together with pipe insulation wrapped around both the pipe and the cable; the insulation holds the generated heat against the pipe rather than letting it dissipate into the surrounding air, which is what makes the system efficient rather than simply running the cable at a very high output to compensate.
Self-Regulating vs. Constant-Wattage Cable
Nearly all heat trace cable sold today falls into one of two categories, and the difference matters for both performance and safety:
|
Factor |
Self-Regulating Cable |
Constant-Wattage Cable |
|---|---|---|
|
How it works |
A conductive polymer core automatically increases or decreases heat output as its own temperature changes |
Produces a fixed heat output regardless of temperature, controlled only by an external thermostat |
|
Overheating risk |
Low; the cable throttles itself down as it warms, even where overlapped |
Higher; requires an external thermostat to prevent overheating, especially where overlapped |
|
Can it be overlapped or crossed? |
Yes, without creating a hot spot |
Not recommended; overlaps can create dangerously hot points |
|
Suitable pipe materials |
Metal and plastic pipe |
Generally metal pipe only, due to overheating risk on plastic |
|
Typical control |
Thermostat optional; cable self-limits |
Thermostat required |
|
Common use today |
Default choice for most freeze protection and process maintenance |
Legacy installations; less common in new work |
Why Self-Regulating Is the Standard Choice
A self-regulating cable's conductive polymer core becomes more conductive as it gets colder, increasing the number of electrical paths through the core and producing more heat exactly when more heat is needed, then backing off as the pipe warms. That behavior is what allows the cable to be safely overlapped around valves, fittings, and tight bends without creating a concentrated hot spot, something a constant-wattage cable can't do safely without careful thermostat control. The tradeoff is that self-regulating cable doesn't have a true off switch of its own; it reduces output in warm conditions but keeps a small idle output rather than shutting off completely, which is why systems still commonly use a simple on/off control or thermostat rather than relying on the cable's self-limiting behavior alone.
Sizing a Heat Trace System
Heat trace cable is sold by the foot with a rated power output, commonly 3, 5, 8, or 10 watts per linear foot at a reference temperature, and cut to length in the field. The right output depends on several factors together, not any single one in isolation:
- Pipe diameter and material, since larger or more conductive pipe needs more watts per foot to maintain the same temperature.
- The lowest expected ambient temperature the pipe will be exposed to.
- How well the pipe is insulated; better insulation reduces the wattage needed for the same protection level.
- Whether the pipe carries flowing or static water, since static water in an exposed line needs more consistent protection than a line with regular flow.
Manufacturers publish sizing charts and, for larger or commercial installations, offer design support to match cable output, insulation thickness, and control strategy to the specific pipe run rather than guessing at a wattage.
Installation Basics
- Run the cable along the pipe, typically in a straight line for a single pass, or spiraled for higher heat output per foot of pipe on smaller-diameter lines.
- Secure with heat-resistant tape such as fiberglass tape, at regular intervals, never with standard electrical tape or plastic zip ties that can't handle the operating temperature.
- Insulate the pipe and cable together using pipe insulation sized for the combined diameter; skipping insulation dramatically reduces efficiency and effectiveness.
- Keep the installation accessible. Heat trace cable is not permitted inside walls, ceilings, or floors; it has to remain in a location that can be inspected, serviced, and tested.
- Connect through a GFCI-protected circuit. NEC 427.22 requires ground-fault protection for electric heating equipment, commonly a 30 mA ground-fault protection device for equipment protection.
- Maintain clearance from combustibles. Most manufacturers specify a minimum distance, often around 10 inches, from combustible surfaces such as untreated wood.
Control Options
Even with self-regulating cable's built-in temperature response, most systems still use one of a few control strategies to manage when the circuit is energized at all:
- Simple on/off switch: adequate for smaller residential systems where the cable is manually switched on for the cold season.
- Ambient thermostat: energizes the circuit automatically once outdoor or ambient temperature drops below a set point.
- Pipe-mounted sensor with a control panel: used on larger commercial and industrial systems, where multiple heat trace circuits are monitored and controlled together for both freeze protection and energy efficiency.
The Bottom Line
Heat trace cable protects pipes from freezing, or holds a process fluid at temperature, by running an electric heating cable along the pipe under insulation. Self-regulating cable, which automatically adjusts its own output based on temperature and can be safely overlapped, has become the default choice over constant-wattage cable for nearly all new freeze-protection installations. Sizing depends on pipe diameter, insulation, and expected low temperature together, and every installation needs GFCI protection, heat-resistant securing tape, and enough clearance from combustibles to operate safely for years without incident.
