Roof & Gutter De-Icing Cable Guide

Roof and gutter de-icing cable, also called heat cable or heat trace, prevents the ice dams and hanging icicles that damage roofs and injure people every winter. But it works in a way most people misunderstand, and installing it wrong, or wiring it without the right protection, is both ineffective and dangerous. It is a significant outdoor electrical load that the code requires to have ground-fault protection and a dedicated circuit, so the GFCI and ground-fault protection side matters as much as the cable. This guide explains what de-icing cable actually does, the two cable types, the electrical requirements, and how to install it so it works.

What De-Icing Cable Actually Does

Here's the misconception to clear first: de-icing cable is not designed to melt the snow off your roof. It's designed to keep a drainage pathway open. Its job is to create clear channels, at the roof edge, through the gutters, and down the downspouts, so that meltwater can flow off the roof and away instead of refreezing at the cold eaves and building into an ice dam. Think of it as maintaining an escape route for water, not as a snow-melting system. Understanding that reframes every installation decision that follows.

What Causes Ice Dams (Briefly)

Ice dams form because of a temperature difference across the roof. Heat escaping from the living space warms the upper roof deck, melting the underside of the snow there. That meltwater runs down to the overhang and eaves, which are colder because they extend beyond the heated walls, and refreezes into a ridge of ice. That ridge, the dam, then traps more meltwater behind it, which backs up under the shingles and leaks into the ceiling and walls. De-icing cable defeats this by keeping a melted channel through the danger zone so water always has somewhere to go.

You Must Heat the Whole Path

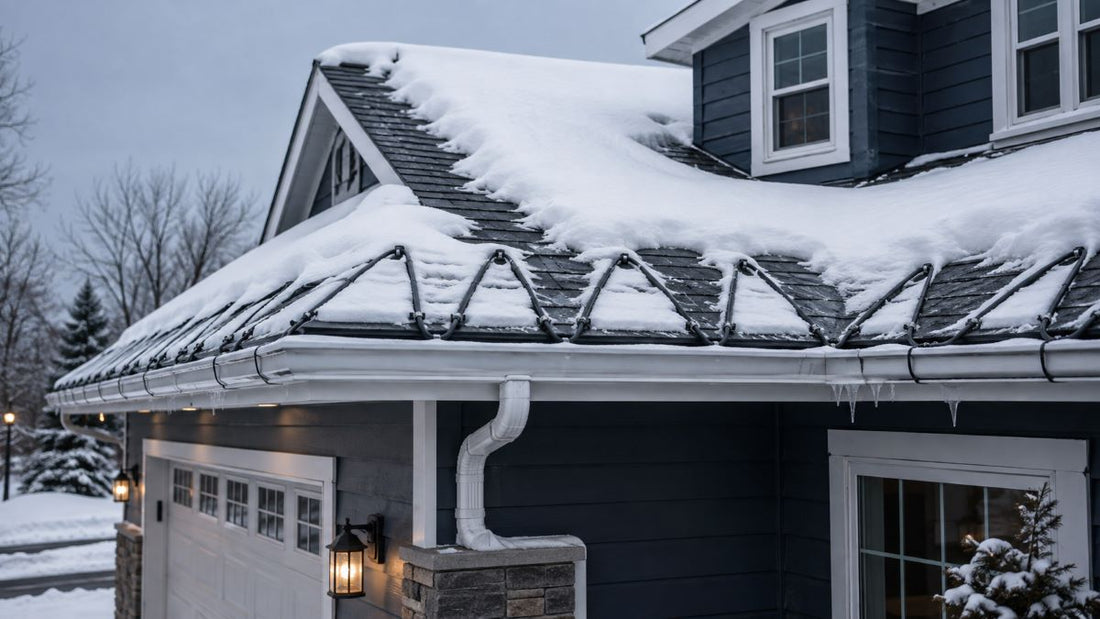

This is the number-one installation mistake, and it follows directly from the drainage idea. The cable is run in a zig-zag or triangle-wave pattern along the roof perimeter at the eaves, extending up the roof past the exterior wall line so the melted channel starts above the heated interior. But that alone isn't enough. The cable must also run into the gutters and down every downspout. If you heat only the roof edge, the meltwater simply flows into a cold gutter or downspout and refreezes there, recreating the blockage a few feet lower. Heat the entire path, roof edge, gutter, and downspout, as one continuous drainage route. For gutters wider than about 6 inches, two parallel runs inside the gutter are recommended, and leaf guards usually have to come off so the cable can sit in the gutter.

Self-Regulating vs Constant-Wattage Cable

There are two fundamentally different types of de-icing cable, and the choice affects safety, efficiency, and installation.

Self-regulating cable contains a conductive core between two bus wires that changes its resistance with temperature, putting out more heat when it's colder and less when it's warmer. That makes it energy-efficient, safe to overlap or cross without overheating, and cuttable to length on site. It requires a controller or sensor to operate. Crucially, it's the type required for metal roofs, because a metal roof's rapid temperature swings can cause constant-wattage cable to overheat and fail.

Constant-wattage cable puts out a fixed number of watts per foot no matter the temperature. It's cheaper and can be plugged in without a thermostat, but it must never overlap or touch itself or another run, because it will overheat and fail, and it comes in pre-made lengths that cannot be shortened or altered. It's best suited to simpler, straight runs on non-metal roofs.

The Electrical Requirements

De-icing cable is a real electrical load, roughly 5 watts per foot and up, multiplied over long runs of roof edge, gutter, and downspout, so it needs a dedicated circuit (120V or 240V depending on the system). And there's a specific code requirement people miss: NEC Article 426, which governs fixed outdoor de-icing and snow-melting equipment, requires ground-fault protection of equipment (GFEP), typically a breaker with 30 mA ground-fault equipment protection. Note that this is not the same as the 5 mA GFCI used for personal shock protection, it's a separate equipment-protection level for heat trace. Wire it into a properly rated circuit breaker with the required ground-fault protection, terminate the cable in a weatherproof junction box, and protect any outdoor connection with a weatherproof cover. Never power de-icing cable through an extension cord, it isn't rated for the sustained load. This is licensed-electrician work.

Controls: Don't Just Leave It On

How you switch the cable on hugely affects both performance and your energy bill. A simple manual switch is the worst option, because people forget to turn it on before a storm or forget to turn it off for weeks, wasting energy. A thermostat that energizes the cable below a set temperature is better. The best option is an automatic controller with both a temperature and a moisture sensor, which runs the cable only when it's both cold enough and actually snowing or wet, precisely the conditions when ice can form. That combination cuts operating cost dramatically. Self-regulating systems require a control of some kind, and the right sensor and control turns a power-hungry system into an efficient one. Whatever the control, don't leave the cable running all year: it wastes energy and can overheat in warm weather.

Installation Notes

A few practical points separate a lasting install from a leaky one. Attach the cable with the manufacturer's roof clips rather than nails or staples driven through the roofing, since any puncture in the shingles is a future leak. Use self-regulating cable on metal roofs to stay within the UL-listed method and keep the warranty valid. Plan the entire layout, roof pattern, gutter runs, downspouts, and control location, before fastening anything, and observe the maximum circuit length the manufacturer specifies. Make sure the cable is rated for your roofing material, and terminate self-regulating cable properly in a junction box rather than a cheap splice.

The Honest Caveat: It Treats the Symptom

De-icing cable is genuinely useful, but it's worth being clear-eyed about what it is: a treatment for the symptom, not the cause. Ice dams ultimately come from heat escaping into the attic and melting snow unevenly, so the real, permanent fix is improving attic insulation, sealing air leaks, and ensuring proper roof ventilation so the roof deck stays uniformly cold. When the attic performs well, snow melts evenly and drains without damming. De-icing cable is the right tool for problem areas that persist despite good attic performance, for complex roof geometries (valleys, dormers, north-facing sections) that always run cold, and for situations where attic improvements aren't feasible. Think of it as a targeted supplement, not a substitute for a well-built roof and attic.

Which Should You Choose?

• Choose self-regulating cable if you have a metal roof (where it's required), a complex layout with overlaps, or you want maximum energy efficiency and are pairing it with an automatic controller. It's the better system overall.
• Choose constant-wattage cable if you're on a budget, have simple straight runs on a non-metal roof, and want a plug-in system without a controller, keeping in mind it must never overlap itself.

The Bottom Line

Roof and gutter de-icing cable prevents ice dams not by melting all the snow but by keeping a continuous drainage channel open from the roof edge through the gutters and down the downspouts, so heat the whole path, not just the eaves. Choose self-regulating cable for efficiency, overlapping layouts, and metal roofs, or constant-wattage for simple, budget runs that never cross themselves. Wire it on a dedicated circuit with the ground-fault equipment protection NEC 426 requires, control it with a temperature-and-moisture sensor so it only runs when ice can form, and fasten it with clips that don't puncture the roof. And remember that the permanent cure for ice dams is a well-insulated, well-sealed, well-ventilated attic, with de-icing cable as the targeted supplement for the spots that still need it.
