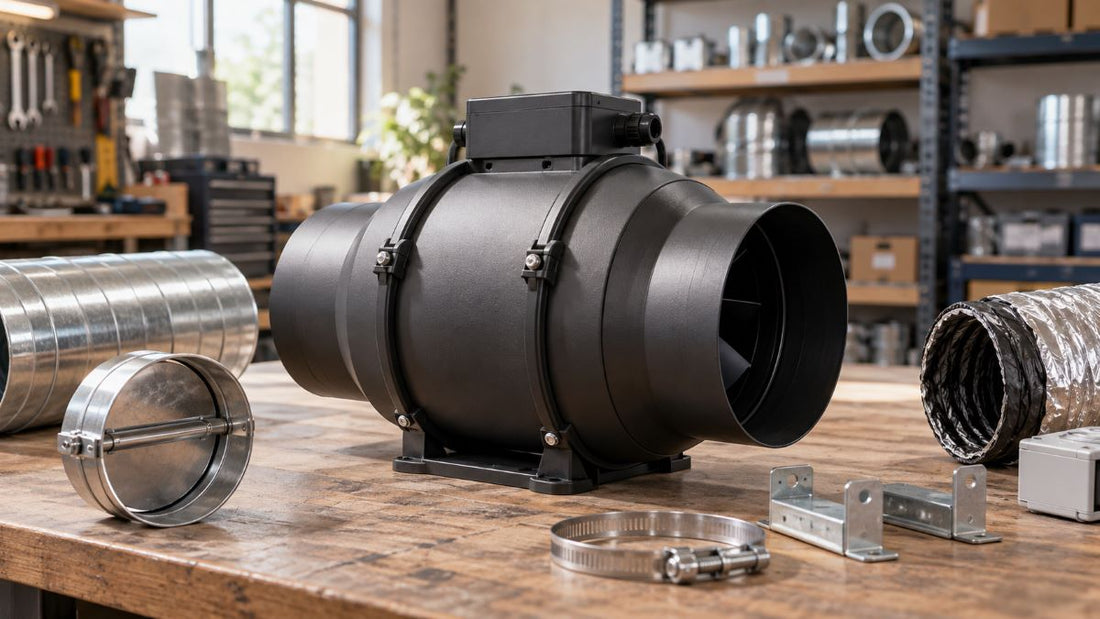

What Is an Inline Duct Fan & When to Use One
An inline duct fan is a cylindrical fan installed directly into a duct run, rather than mounted in the ceiling or wall of the room it serves, and it exists to solve a specific problem: moving air efficiently over a duct run longer than a standard bathroom or kitchen fan can handle on its own. Because the fan sits inside the ductwork itself, often in an attic or crawlspace well away from the room, it also runs noticeably quieter than a fan mounted directly overhead. This guide covers how inline fans differ from standard exhaust fans and booster fans, when one is actually the right choice, and how to size and install one correctly.
How an Inline Duct Fan Works
An inline duct fan mounts as a segment of the duct run itself, pulling or pushing air through the ductwork rather than pulling air directly out of a room the way a ceiling-mounted exhaust fan does. Most inline fans combine characteristics of axial and centrifugal fan designs, which lets them maintain airflow even against the static pressure resistance created by long duct runs, multiple bends, and accessories like backdraft dampers or carbon filters. Because the fan is remote from the room it serves, connected by ductwork rather than sitting flush in the ceiling, its operating noise is largely isolated in the attic or duct cavity rather than the occupied space below.
Inline Duct Fan vs. Standard Exhaust Fan vs. Booster Fan
|
Factor |
Standard Exhaust Fan |
Duct Booster Fan |
Inline Duct Fan |
|---|---|---|---|
|
Mounting location |
Ceiling or wall of the room |
Inside the duct near a register/vent |
Inside the duct run, often in the attic |
|
Best for |
Short, simple duct runs |
Boosting airflow to one specific room off a central system |
Long duct runs, multiple bends, or high-CFM needs |
|
Noise in the room |
Noticeable, since the fan sits overhead |
Noticeable, since it sits near or in the room |
Minimal; the fan is remote from the room |
|
Typical airflow capacity |
Matched to a single room's needs |
Up to ~800 CFM (12-inch model) |
Up to ~1,500 CFM (12-inch model) |
|
Typical use case |
Bathroom or kitchen with a short, direct duct run |
A single cold or stuffy room fed by central HVAC |
Long bathroom/kitchen runs, whole-room ventilation, grow spaces, equipment closets |
When to Use an Inline Duct Fan
- Long duct runs.
- Multiple duct bends. Every elbow or turn in a duct run adds resistance; a run with several bends between the room and the exterior vent often needs the added static pressure capability an inline fan provides.
- Large bathrooms or multiple fixtures on one duct. A large bathroom, or one with two separate intake points feeding a single duct via a Y-junction, often needs more airflow capacity than a single ceiling-mounted fan alone can supply.
- Noise-sensitive spaces. Because the fan itself sits in the duct rather than the ceiling, an inline fan is a common choice anywhere a quiet result matters more than a standard fan can deliver, even accounting for sone rating alone.
- Sub-floor ventilation and equipment closets. Inline fans are also used outside typical bathroom applications, for crawlspace ventilation, server or AV equipment closets, and similar spaces needing sustained airflow through ductwork rather than a room-mounted fan.
Sizing an Inline Duct Fan
Sizing depends on more than just the room's square footage; the duct run itself factors directly into the calculation. Total static pressure, driven by duct length, the number of bends, and any accessories like silencers or filters in the line, reduces a fan's effective CFM below its rated maximum, so a fan should generally be sized with some margin above the room's bare minimum airflow requirement to account for that loss. Duct diameter also has to match the fan's inlet and outlet size; an undersized duct connected to an appropriately sized fan still restricts the actual airflow delivered. For anything beyond a simple, short run, working through the specific duct length, bend count, and any accessories with the fan manufacturer's sizing guidance gives a more reliable result than estimating from room size alone.
Installation Basics
- Choose the right location along the duct run, typically in an accessible attic or duct cavity space, positioned so the fan can be reached later for maintenance.
- Confirm the fan's electrical requirements
- Seal all duct connections at the fan's inlet and outlet to prevent air leaks that reduce the effective airflow reaching the room.
- Support the fan's weight independently of the duct itself, using appropriate mounting brackets or straps, rather than letting the ductwork bear the fan's weight.
- Test airflow after installation to confirm the fan is achieving the expected CFM at the register, since installation issues like duct leaks or crushed sections can significantly reduce delivered airflow even with a correctly sized fan.
The Bottom Line
An inline duct fan solves a problem standard ceiling-mounted exhaust fans and simple booster fans can't: moving enough air through a long, bent, or otherwise demanding duct run while keeping the fan noise itself out of the occupied room. It's the right choice for large bathrooms, long duct runs to an exterior vent, multiple fixtures sharing one duct, and applications like equipment closets or sub-floor ventilation where sustained airflow through ductwork matters more than a simple room-mounted fan. Sizing correctly means accounting for the duct run's total static pressure, not just the room's square footage, and installing with sealed connections and independent support keeps the fan delivering its rated performance rather than losing airflow to leaks along the way.
