Fiber Optic Cable Types: Single-Mode vs. Multimode

Every fiber optic cable falls into one of two fundamental categories, single-mode or multimode, and the difference comes down to a single physical measurement: the diameter of the glass core the light actually travels through. That core size difference cascades into everything else that matters when choosing fiber: how far a signal can travel, what light source and equipment the fiber needs, and ultimately what it costs to deploy. This guide covers how single-mode and multimode fiber differ physically, the OS and OM grading systems within each category, and how to identify which type is which by sight.

The Core Difference: Literally

Single-mode fiber has a core diameter of about 8 to 9 microns, small enough that light can only travel through it in a single, straight path (a single "mode"), with essentially no bouncing off the core walls. Multimode fiber has a much larger core, 50 microns for current OM3/OM4/OM5 fiber or 62.5 microns for legacy OM1/OM2 fiber, large enough that light travels through it via many simultaneous paths at different angles, bouncing repeatedly off the core walls as it moves down the fiber. That difference in how light propagates is the root cause of every other distinction between the two fiber types.

Why Core Size Determines Distance

In multimode fiber, the many different light paths (modes) travel slightly different physical distances as they bounce through the core; a mode traveling in a straight line down the center covers less distance than one bouncing at a steep angle over the same fiber length. Over a long enough run, this difference, called modal dispersion, causes what started as a sharp, distinct pulse of light to spread out and blur into the next pulse by the time it reaches the receiver, corrupting the signal. Single-mode fiber's narrow core eliminates this problem almost entirely, since there's only one light path to begin with, which is why single-mode fiber can run dramatically farther, tens of kilometers versus a few hundred meters for multimode, before the signal degrades past usability.

Single-Mode vs. Multimode at a Glance

Single-Mode Grades: OS1 and OS2

Single-mode fiber is graded OS1 or OS2, and unlike the multimode grading system, this distinction is mostly about physical cable construction rather than optical performance. OS1 uses a tight-buffered design suited to indoor and short-to-medium indoor/outdoor runs, commonly used in LANs and local telecommunications loops. OS2 is built for outdoor and longer-distance applications, typically with a loose-tube, gel-filled or dry construction that better withstands temperature swings and moisture over long outdoor runs, and it's the standard choice for long-haul telecom lines and outdoor campus backbone connections.

Multimode Grades: OM1 Through OM5

Multimode fiber's grading system, defined by ISO/IEC 11801, reflects genuine differences in bandwidth and distance capability, and the grades aren't interchangeable with each other despite looking similar.

OM4 is backward compatible with OM3 equipment, meaning an OM4 cable will work, and perform at least as well, when connected to hardware designed for OM3. The reverse also works as long as the run stays within OM3's shorter distance limits. Different core-size grades, such as OM1's 62.5 microns versus OM3's 50 microns, cannot be mixed on the same link at all, since the mismatched core sizes cause significant signal loss at the connection point.

How to Tell Single-Mode from Multimode by Sight

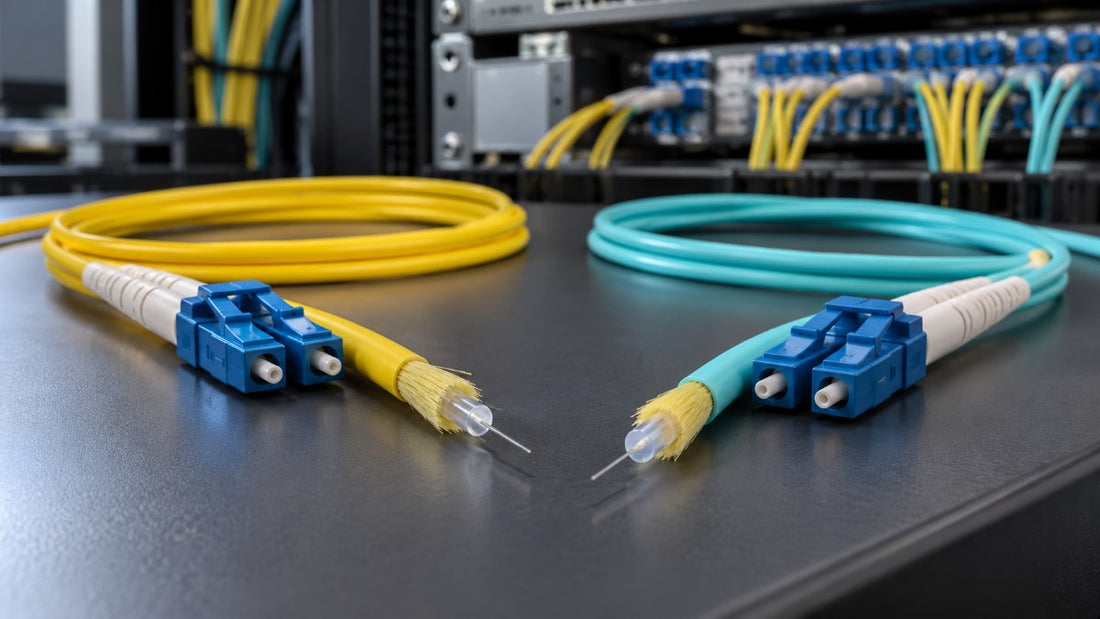

• Jacket color: yellow almost universally indicates single-mode (OS1/OS2); orange indicates older multimode (OM1/OM2); aqua indicates OM3; violet or erika (magenta) indicates OM4; lime green indicates OM5.
• Connector color coding: blue connectors (on SC/UPC or similar) typically indicate single-mode, while beige or black connectors typically indicate multimode, though green connectors specifically indicate an angled APC polish used in some single-mode applications.
• Printed markings on the cable jacket: most fiber cable has its type printed directly on the outer jacket at regular intervals, which is the most reliable way to confirm type when color alone is ambiguous.

Choosing Between Them

• Choose single-mode if: the run exceeds a few hundred meters, connects separate buildings or a campus backbone, or the application needs maximum bandwidth headroom for future growth over a long distance.
• Choose multimode if: the run stays within a single building or data center at a few hundred meters or less, and lower equipment cost matters more than the extra distance and bandwidth headroom single-mode offers.
• Within multimode, choose OM3 or OM4 for new installations: OM1 and OM2 are legacy grades that can't support current high-bandwidth applications well; OM3 and OM4 are the practical standard for current enterprise deployments, with OM5 reserved for applications specifically using wavelength division multiplexing.

The Bottom Line

Single-mode and multimode fiber differ at the physical level, an 8-9 micron core versus a 50 or 62.5 micron core, and that core size difference drives everything else: single-mode's narrow core avoids modal dispersion entirely, letting it run far longer distances at the cost of more expensive laser-based equipment, while multimode's wider core supports cheaper light sources over shorter runs. Within each category, the grading systems matter differently: OS1 versus OS2 is mostly about cable construction for indoor versus outdoor use, while OM1 through OM5 reflect real differences in bandwidth and distance that determine which grade a specific application actually needs. Jacket color remains the fastest way to identify fiber type at a glance, though checking the printed markings on the cable confirms it when color alone leaves any doubt.
