What Is an IC-Rated Recessed Housing?

IC stands for Insulation Contact, and an IC-rated recessed housing is one engineered to sit in direct, sustained contact with ceiling insulation without overheating or becoming a fire hazard. It sounds like a small detail, but it's one of the most important and most misunderstood specifications in recessed lighting, because getting it wrong is both a code violation and a genuine fire risk. It's also routinely confused with two other ratings, airtight and fire-rated, that do entirely different jobs. This guide explains what an IC rating actually means, why it matters, and how to choose the right recessed housing for your ceiling.

What “IC-Rated” Means

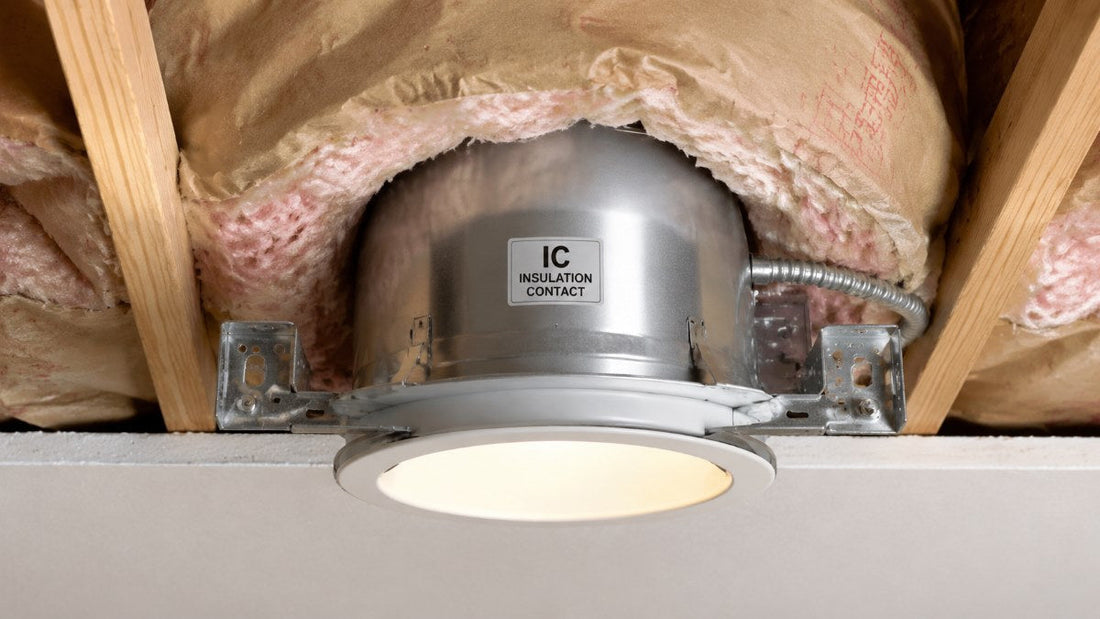

A recessed light generates heat, and where that heat goes depends on the housing. An IC-rated housing is built with a double-wall construction and a built-in thermal cutoff (a switch that shuts the fixture off if it ever gets too hot), so it can be completely buried in insulation and still run safely. A non-IC housing has none of that protection; it relies on open air around it to carry heat away. Bury a non-IC fixture in insulation and the heat has nowhere to go.

Why It Matters: The Non-IC Fire Hazard

This is not a theoretical concern. When insulation covers a non-IC fixture, internal temperatures can climb past 392°F (200°C), hot enough to ignite the insulation and the ceiling structure. That's why the National Electrical Code (Section 410.116) requires a non-IC fixture to maintain at least 3 inches of clearance from insulation on all sides, including above, plus at least half an inch from combustible materials. Maintaining that air gap is what lets the fixture ventilate its heat safely.

The practical problem is that keeping a 3-inch gap all the way around each fixture leaves roughly a square foot of uninsulated ceiling per light. In an insulated ceiling, that's both an energy penalty and an installation headache, which is exactly why IC-rated fixtures have become the standard for any ceiling with insulation.

The Energy Problem, Too

Beyond the fire risk, non-IC cans waste energy in two ways. First, those mandatory insulation gaps are holes in your thermal envelope where heat escapes. Second, a non-airtight recessed can acts like a small chimney: when the light warms up, it pulls conditioned air out of the living space and up into the attic, a thermal bypass that quietly runs your heating and cooling bills up all year. Sealing and insulating over the fixture solves both problems, but only if the fixture is rated to allow it.

IC vs ICAT: Two Different Jobs

Here's the first distinction people miss. IC (insulation contact) is about fire safety. AT (airtight) is about energy. They're separate ratings that often appear together as ICAT.

An airtight (AT) housing is sealed with gaskets or special construction to stop that chimney-effect air leakage into the attic. A housing can be IC-rated for fire safety without being airtight, so if energy performance matters, and under modern energy codes in new construction it increasingly must, look specifically for an ICAT (Insulation Contact Air Tight) housing, and seal the trim to the drywall with the included gasket or a bead of fire-rated caulk. IC keeps it safe; AT keeps it efficient.

IC Is Not the Same as Fire-Rated

Here's the second, bigger confusion. An IC rating means the fixture won't overheat when it's in contact with insulation. A fire rating means something completely different: that the fixture won't compromise the fire resistance of a ceiling assembly that's required to hold back fire between floors. They involve different tests and solve different problems, and a fixture can be IC-rated without being fire-rated, or the reverse. In an insulated ceiling that is also a fire-rated assembly, you need both. If your project involves a rated floor-ceiling assembly, see how fire-rated housings address that separate requirement.

When You Need an IC-Rated Housing

The rule is straightforward: if insulation is present, or could ever be added, you need IC-rated fixtures. That covers the most common case by far, top-floor ceilings beneath an insulated attic, as well as insulated cathedral ceilings, exterior soffits, and any ceiling adjacent to unconditioned space. Building codes (the NEC and the IRC) require IC-rated fixtures in insulated ceilings, and inspectors verify the rating at both rough-in and final inspection. In a ceiling between two conditioned floors with no insulation, a non-IC fixture may be permitted, but an IC-rated (ideally ICAT) housing is safe and appropriate everywhere, which is why many builders simply standardize on it.

Does LED Change Anything?

A fair question, since LEDs run much cooler than the incandescent lamps these rules were written for. The answer is that the IC rating still matters and is still required: LED drivers generate heat, code doesn't exempt LEDs, and a fixture buried in insulation still needs the thermal protection. The good news is that many modern LED fixtures, especially slim canless and retrofit downlights, are IC-rated and airtight by design, making compliance easy. Always confirm the label rather than assuming the LED runs cool enough to skip it.

How to Tell If a Housing Is IC-Rated

Checking is simple. Remove the trim and bulb to see the housing, and look for a label marked “IC” or “ICAT.” There are visual cues too: IC-rated housings typically have a silver, double-wall body with no visible vent holes, while non-IC housings are often white and have ventilation slots to shed heat into the surrounding air. When in doubt, the product's specification sheet states the rating explicitly. If you find no IC marking anywhere, treat the fixture as non-IC.

What to Do With Existing Non-IC Cans

If you have non-IC recessed cans in an insulated (or soon-to-be-insulated) ceiling, you have three legitimate options:

• Replace them with ICAT housings. The cleanest fix, and remodel-friendly IC-AT cans exist that drop into an existing hole.
• Add a UL-classified intumescent cover. A rated dome cover installed over the can from the attic side brings the assembly into insulation-contact compliance (and a fire rating where applicable) without disturbing the fixture below.
• Maintain the 3-inch clearance. Keep insulation back on all sides per code. It works, but it carries the energy penalty described above.

Two cautions: don't pack insulation tightly over even an IC fixture, lay it naturally to preserve its R-value, and never mix IC and non-IC housings on the same circuit without labeling each one, or someone will bury a non-IC can by mistake during a future insulation job.

Choosing an IC-Rated Housing

For any insulated ceiling, specify an ICAT housing to cover both fire safety and energy performance, and choose new-construction or remodel style to match your build. Match the aperture size to the room and effect you want, the same 4-inch versus 6-inch decision covered in our guide to recessed light sizes, and confirm LED and dimmer compatibility. In a rated assembly, verify the fire rating separately. Get the label right, and the fixture is safe to bury, efficient, and code-compliant.

The Bottom Line

An IC-rated recessed housing is one that can safely touch insulation, thanks to double-wall construction and a thermal cutoff, while a non-IC housing must keep a 3-inch air gap from insulation or it becomes a fire hazard. Because nearly every top-floor ceiling has insulation, IC-rated fixtures are the standard and a code requirement in insulated ceilings. Don't confuse the rating with airtight, which is about energy sealing (look for ICAT to get both), or with fire-rated, which is about preserving a fire-resistant assembly entirely. Check the label, standardize on ICAT for insulated ceilings, and remediate any non-IC cans before insulation ever covers them.
