Choosing Beam Angles for High Ceilings

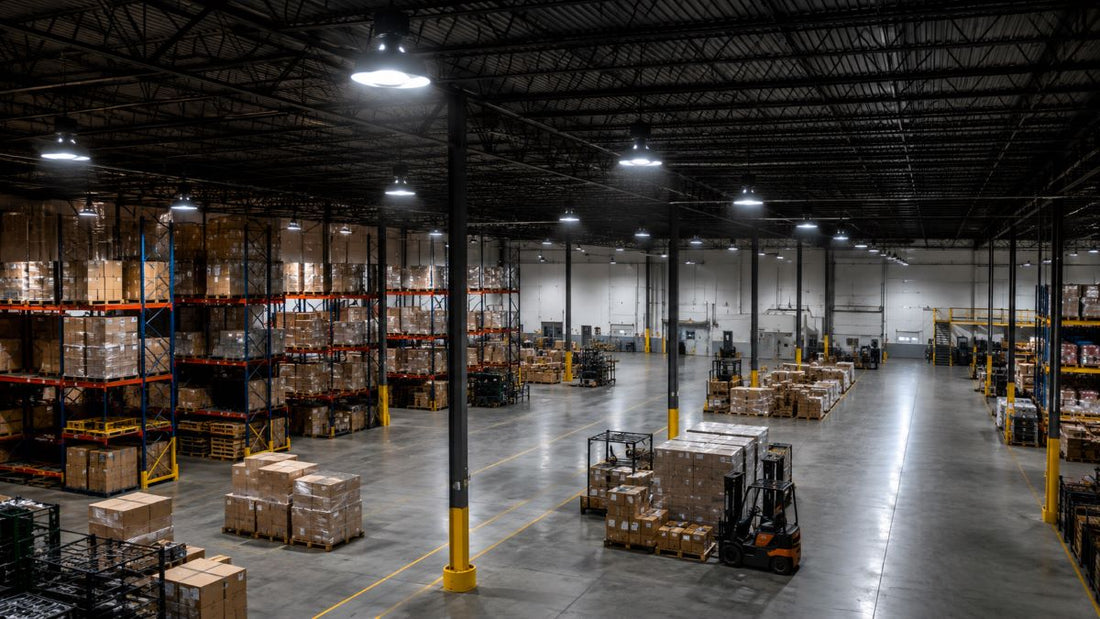

Beam angle, not lumen output alone, is usually what makes a high-ceiling space feel dim, glary, or unevenly lit. A fixture with plenty of lumens but the wrong spread either wastes light on the upper walls or leaves the floor patchy between fixtures. For warehouses, gyms, and other spaces relying on high bay lights, getting the beam angle right does more for actual foot-candles on the floor than simply buying a brighter fixture. This guide covers how beam angle and mounting height interact, what angle range fits different ceiling heights, and how to calculate spacing so the light stays even from wall to wall.

What Beam Angle Actually Controls

Beam angle measures how widely a fixture spreads its light, in degrees, and it's a completely separate spec from lumen output. Two fixtures with identical lumen ratings can behave completely differently depending on beam angle: a narrow beam concentrates the same total light into a smaller circle, producing brighter, more intense illumination in that circle, while a wide beam spreads the same lumens over a larger area at lower intensity. Neither is objectively better; the right choice depends entirely on the mounting height and what the space needs illuminated.

Why the Inverse Square Law Matters More on High Ceilings

Light intensity falls off with the square of the distance from the source, not linearly. Doubling the mounting height doesn't cut the light reaching the floor in half, it cuts it to roughly one quarter. That's why high-wattage fixtures are standard on tall ceilings: the fixture has to overcome a much steeper falloff than the same fixture would face at a normal 8 to 10 foot ceiling height. Pairing that higher wattage with the correct, narrower beam angle is what actually delivers the light to the floor rather than losing it to the upper walls along the way.

Beam Angle by Ceiling Height

What Happens With the Wrong Beam Angle

A wide-beam fixture mounted too high spreads its light across a large circle before it ever reaches the floor, and much of that light hits the upper walls or dissipates well short of the target area rather than adding usable foot-candles where people are working. In a real warehouse example at a 25-foot ceiling aiming for 30 foot-candles, switching a 150W fixture from a 120-degree beam to a 90-degree beam measurably increased floor-level illumination by nearly 40 percent at the same spacing and same power draw, simply by concentrating the light where it was actually needed. The opposite mistake, a narrow beam mounted too low, creates small, overly bright circles with dark gaps between fixtures rather than even coverage.

Calculating Fixture Spacing

Most manufacturers publish an S/MH ratio (spacing-to-mounting-height ratio) in a fixture's photometric data, which gives the maximum distance between fixtures needed to maintain even, overlapping coverage at a given mounting height. A narrower beam angle generally requires closer fixture spacing to avoid dark gaps between the pools of light, while a wider beam allows fixtures to be spaced farther apart. As a rough starting point, fully covering a 40 by 40 foot room takes either one 60-degree fixture centered on a 34-foot ceiling, or two 60-degree fixtures spaced 10 feet from center on a 17-foot ceiling, illustrating how ceiling height and fixture count trade off against each other for the same beam angle. For anything beyond a rough estimate, checking the fixture's IES photometric file, which plots exactly how its light distributes, is worth the extra step before finalizing a layout, especially for track and accent lighting where precise beam control matters as much as raw output.

Checking Your Work: Measuring Foot-Candles

Once fixtures are installed, or during layout planning, measuring foot-candles directly beneath a fixture and again at the midpoint between it and the next fixture reveals whether the spacing and beam angle are actually working together. A drop-off of more than about 50 percent between those two points signals either a beam angle that's too narrow for the spacing chosen, or fixtures spaced too far apart for the beam angle in use; either a wider beam or tighter spacing corrects it.

Reflectors and Adjustable Optics

Many high bay fixtures, particularly UFO-style LED high bays, accept optional reflectors or lenses that narrow a stock wide beam angle down to a more focused spread, which lets a single base fixture serve multiple ceiling heights across a facility rather than stocking separate wide- and narrow-beam models. This is a practical way to standardize on one fixture for maintenance and spare-parts purposes while still matching beam angle to each area's actual ceiling height. For accent or task lighting under high ceilings, adjustable recessed trims with tiltable or rotatable optics offer similar flexibility on a smaller scale, letting a fixture's beam be aimed and narrowed after installation rather than committed to at the point of purchase.

The Bottom Line

On high ceilings, beam angle matters as much as lumen output for getting usable light to the floor. As a rough guide, ceilings under 20 feet generally do well with a 60 to 90 degree beam, ceilings from 20 to 30 feet call for around 60 degrees, and anything above 30 feet benefits from a narrow 10 to 45 degree beam that concentrates light rather than losing it to the upper walls. Checking the fixture's S/MH ratio and IES photometric data, then verifying actual foot-candles at both the fixture and the midpoint between fixtures, catches spacing and beam mismatches before they turn into a dim or unevenly lit floor.
